Vane pump
Vane Pump
Description

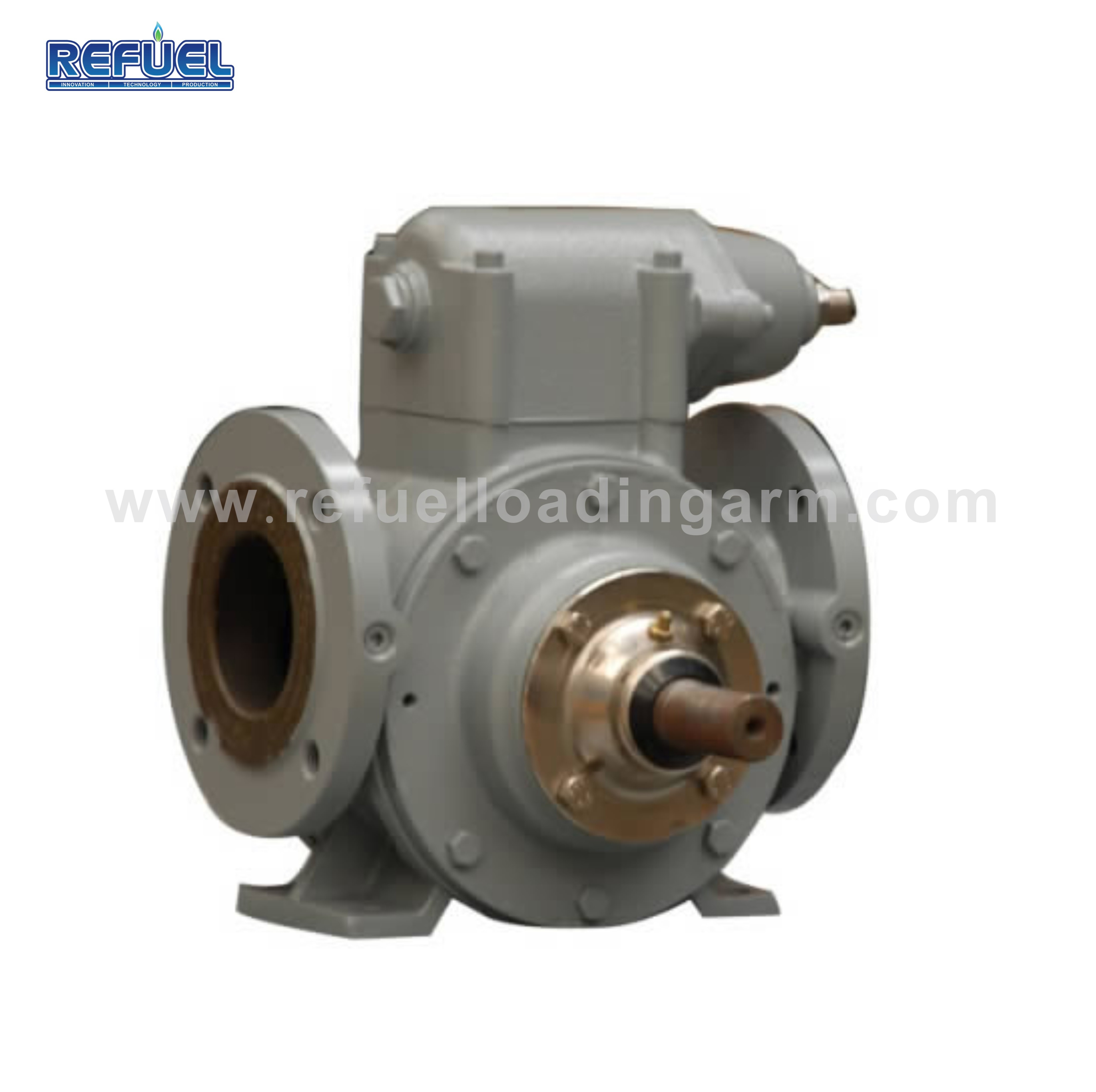

The Sliding vane pump (SUB series pump) is positive displacement vane pump, applied to transfer gasoline, kerosene, diesel and other light oil, used to load & unload in stock terminal, also on oil tank trucks and mobile fuel unit.
1.Technical Specification:
| Model |
SUB-40 |
SUB-50 |
SUB-80 |
| Inlet & Outlet |
40mm |
50mm |
80mm |
| Flow Rate |
180L/Min |
250L/Min |
500L/Min |
| Vacuum |
0.06MPa |
0.06MPa |
0.06MPa |
| Speed |
960RPM |
960RPM |
960RPM |
| Power |
1.5KW |
2.2KW |
4KW |
2.Package Data
| Model |
SUB-40 |
SUB-50 |
| Packaging |
1pc/ Wooden Case |
| Net Weight |
20kgs |
22kgs |
| Gross Weight |
25Kgs |
37kgs |
| Size |
40×33×33cm |
40×33×33cm |
3.Features
1)An excellent self-priming performance, vacuum up to 0.095Mpa, instead of vacuum pump to clean the tank in vessel, truck etc.
2)Sliding vane pump is used to transport gas-liquid two-phase, up to 50%, completely solve air lock, cavitation.
3)Sliding vane design provides sustained performance and trouble free operation, high reliability from excessive.
4)Multi fuction 960 RPM fuel oil transfer pump for fuel oil delivery truck.
4.Application
1) Fuel Oil Delivery Truck
2)Fleet Refueling
3)Aviation Refueler
4) Loading & Unloading in Stock Terminal
5)Transport of Petrol, Gasoline, Diesel, Kerosene & many more.
