YB Series Rotary Vane Pump

Products

Vane pump

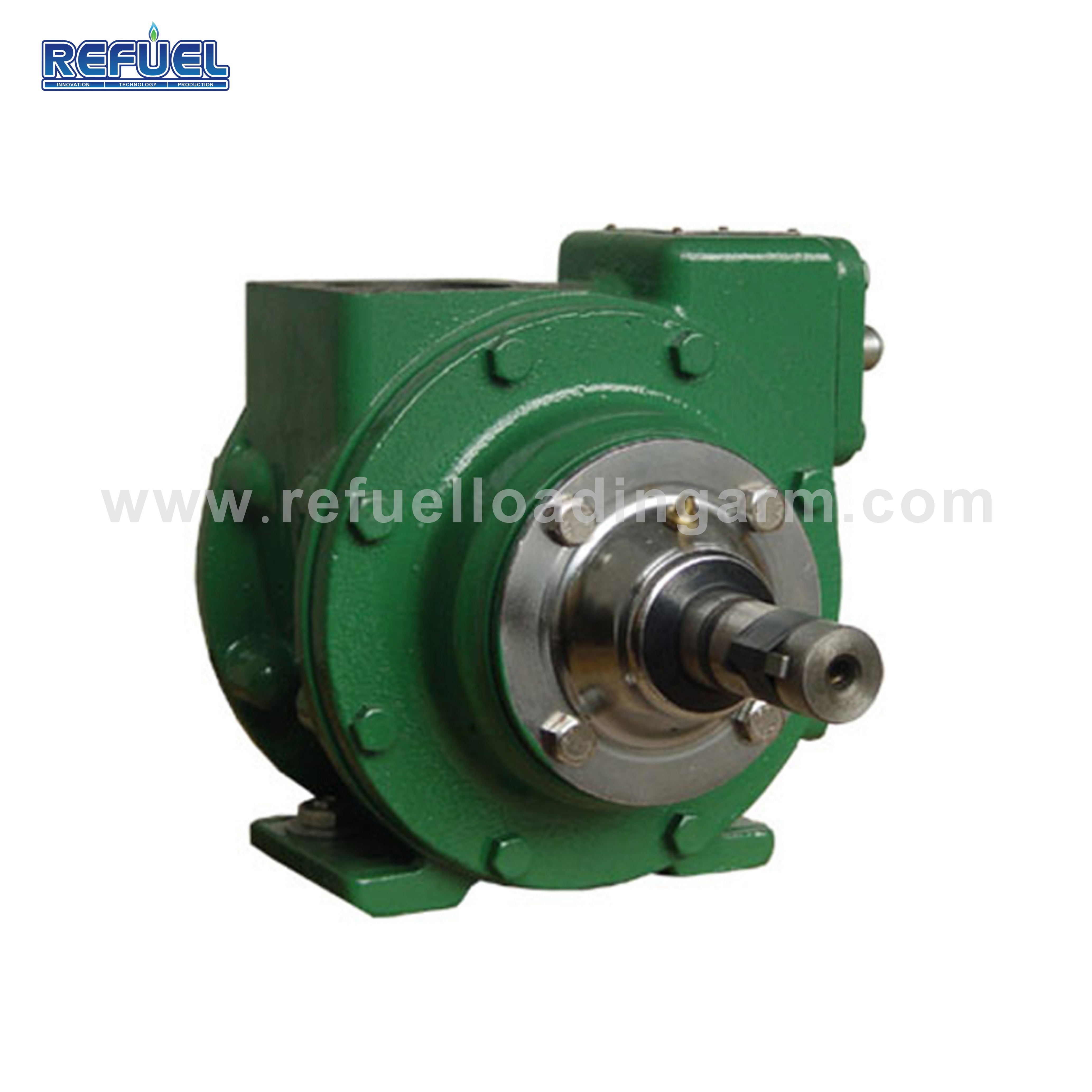

YB series Self-priming rotary vane pump with internal by-pass valve.The pumps use a rotor with sliding vanes to draw the liquid. The material of construction is nodular iron with sliding vanes built in a special self lubricating material.

Description:
YB series Self-priming rotary vane pump with internal by-pass valve.The pumps use a rotor with sliding vanes to draw the liquid. The material of construction is nodular iron with sliding vanes built in a special self lubricating material. Due to its efficiency, the pumps can handle viscous and also volatile liquids and require less horsepower than other equivalent pumps. The pumps are capable of higher flow-rates at lower number of revolutions than other designs.

1.Technical Specification:

Model	Nominal Flowrate		Rated Speed	Viscosity		Differential Pressure		Working Pressure		Temperature		Power
Model	GPM	LPM	RPM	SSU	Cp	PSI	Bar	PSI	Bar	0F	℃	HP	KW
YB-50	80	300	640	20,000	4,250	125	8.6	175	12.1	300	149	3	2.2
YB-65	157	594	640	20,000	4,250	125	8.6	175	12.1	300	149	5	4
YB-80	270	1,022	640	20,000	4,250	125	8.6	175	12.1	300	149	10	7.5
YB-100	505	1900	500	20,000	4,250	125	8.6	175	12.1	300	149	25	18.5

2.Package Data:

Model	YB-50		YB-65		YB-80		YB-100
	Without Motor	W/Motor V-Belt Driven	Without Motor	W/Motor V-Belt Driven	Without Motor	W/Motor Coupling Driven	Without Motor
Packaging	1pc/ Wooden Case
Net Weight	31Kgs	86Kgs	40Kgs	92Kgs	64Kgs	185Kgs	160Kgs
Gross Weight	32Kgs	90Kgs	42.5Kgs	110Kgs	66Kgs	200Kgs	172Kgs
Size cm	44×33×39	80×55×59	44×33×32	119×55×59	45×40×38	130×47.5×76	54×49×58

3.Advantage:

1)Durable pumps for fast and quiet operation.
2)Sliding vane design provides sustained performance and trouble free operation, high reliability.
3)Adjustable relief valve protects pump from excessive pressure.
4)T-type strainers are available to protect pumping system from damage caused by welding slag and other matter in the piping and tanks.

4.Application:

1)Fuel oil delivery truck
2)Fleet refueling
3)Lube oil
4)Aviation refuelers
5)Transport of Petrol, Chemicals, gasoline, bio-fuel,solvents and many more.

5.Installation:

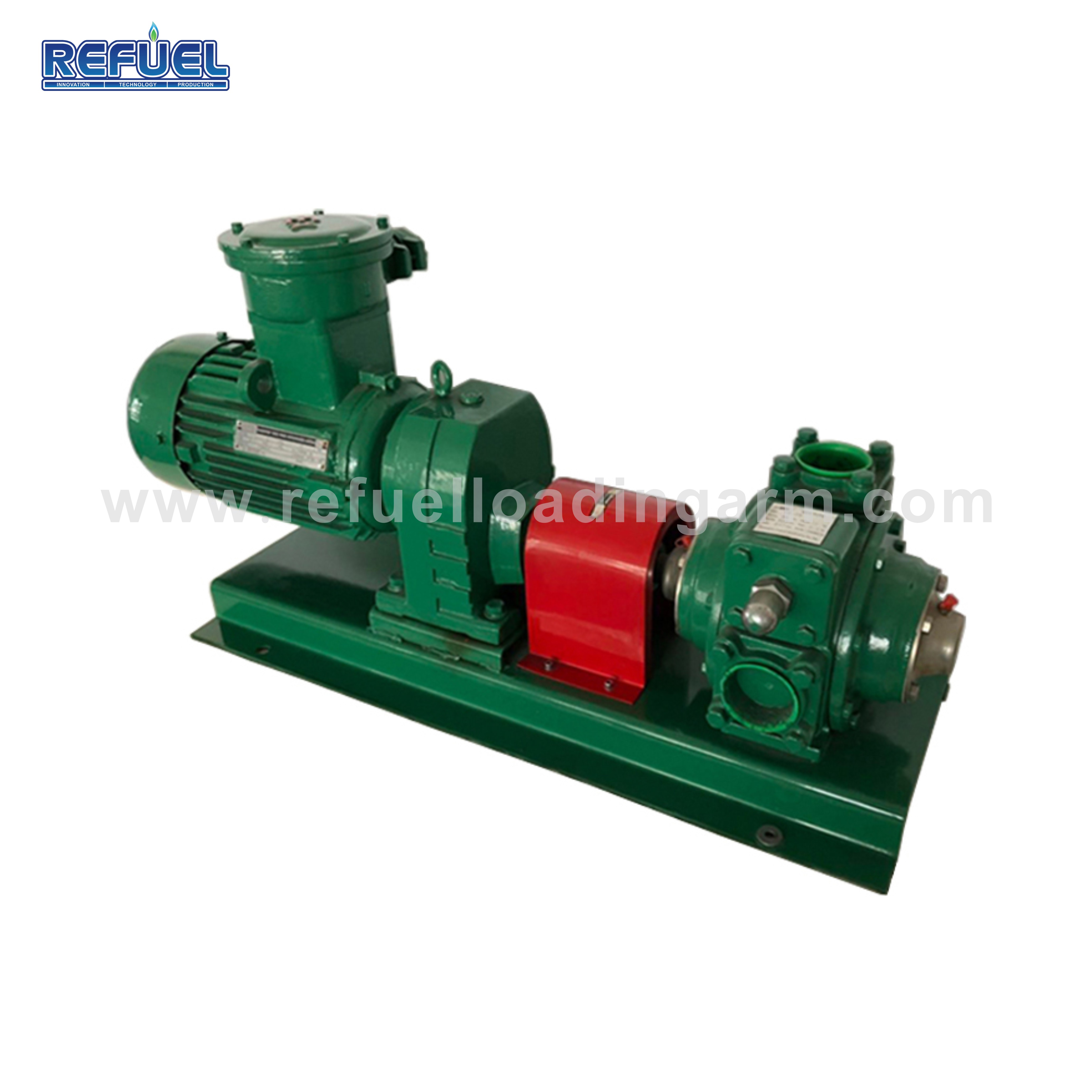

The pumps are widely used on mobile applications or fixed installations. With cardan shafts or hydraulic motor the pumps can be installed on any kind of tank truck.Also they are coupled to electric or diesel engine on metal bases to be used either on terminals, heavy duty dispensers, pumping/metering skids, mobile transfer units. Equipped with Teflon seals, the pumps can also be used on a wide variety of solvents in the petrochemical industry.
