Description：

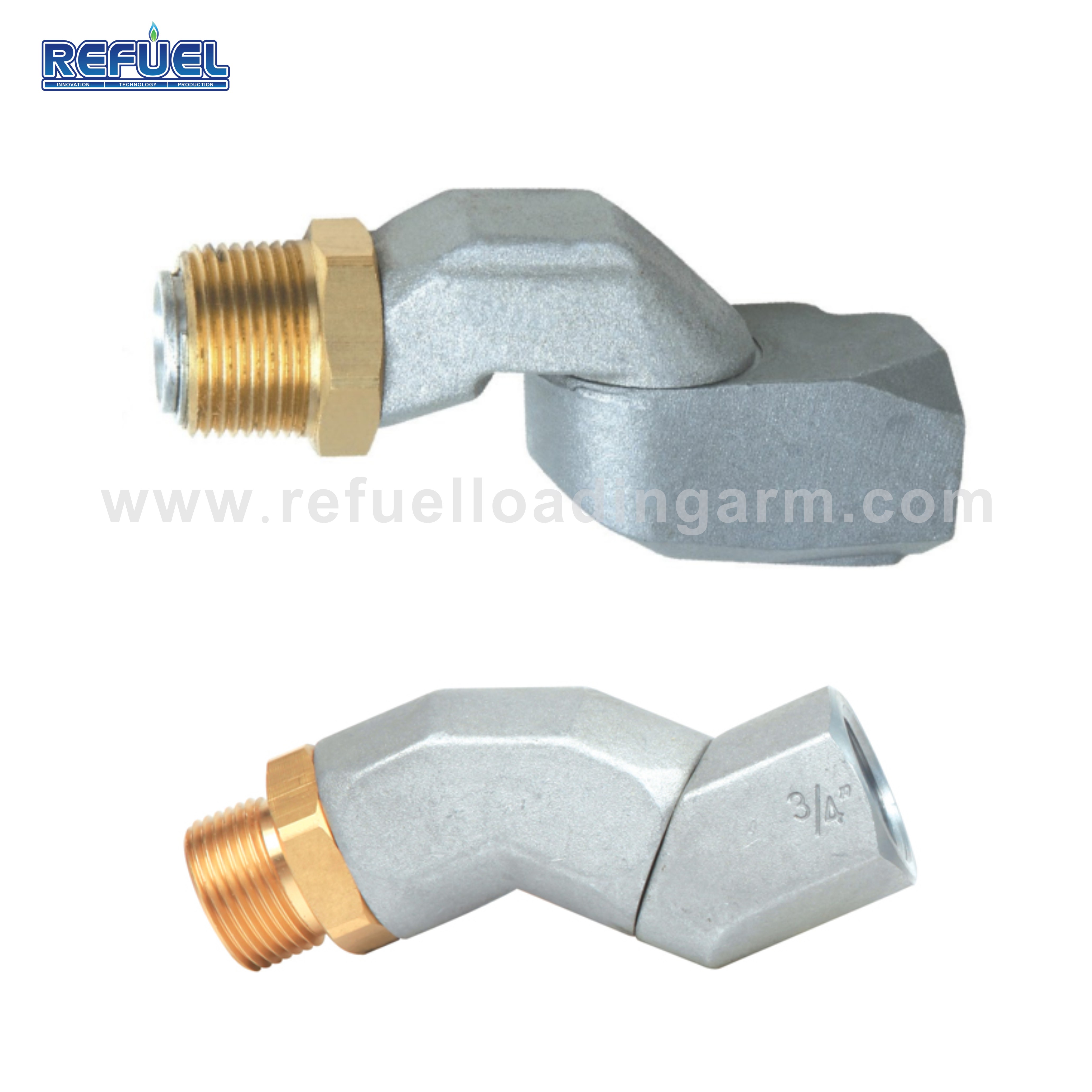

241TPS hose swivel is designed for applications where easy nozzle and hose handling important for customer’s convenience. It is installed between the nozzle and the hose to reduce strain, provides flexibility and reduces premature hose wear.
The 45 swivel(45-5060 Hose Swivel) is designed for gasoline self-service applications where easy nozzle and hose handling is important for customer convenience. The 45 is installed between the nozzle and hose to reduce strain, providing flexibility so fueling hoses last longer.
Used for connecting the nozzle and the hose, 360°swivel action. Connection: Thread BSPF/NPT ¾” & 1”.
1.Technical data：
| 2Product # | size | Weight |
| 241 TPS 801 | 3/4”F x3/4”M (NPT) | 0.21KG |
| 241 TPS 802 | 3/4”F x3/4”M (BSPT) | 0.21KG |
| 241 TPS 803 | 1”F x1”M (NPT) | 0.21KG |
| 241 TPS 804 | 1”F x1”M (BSPT) | 0.21KG |
