BC-CH Breakaway Valve

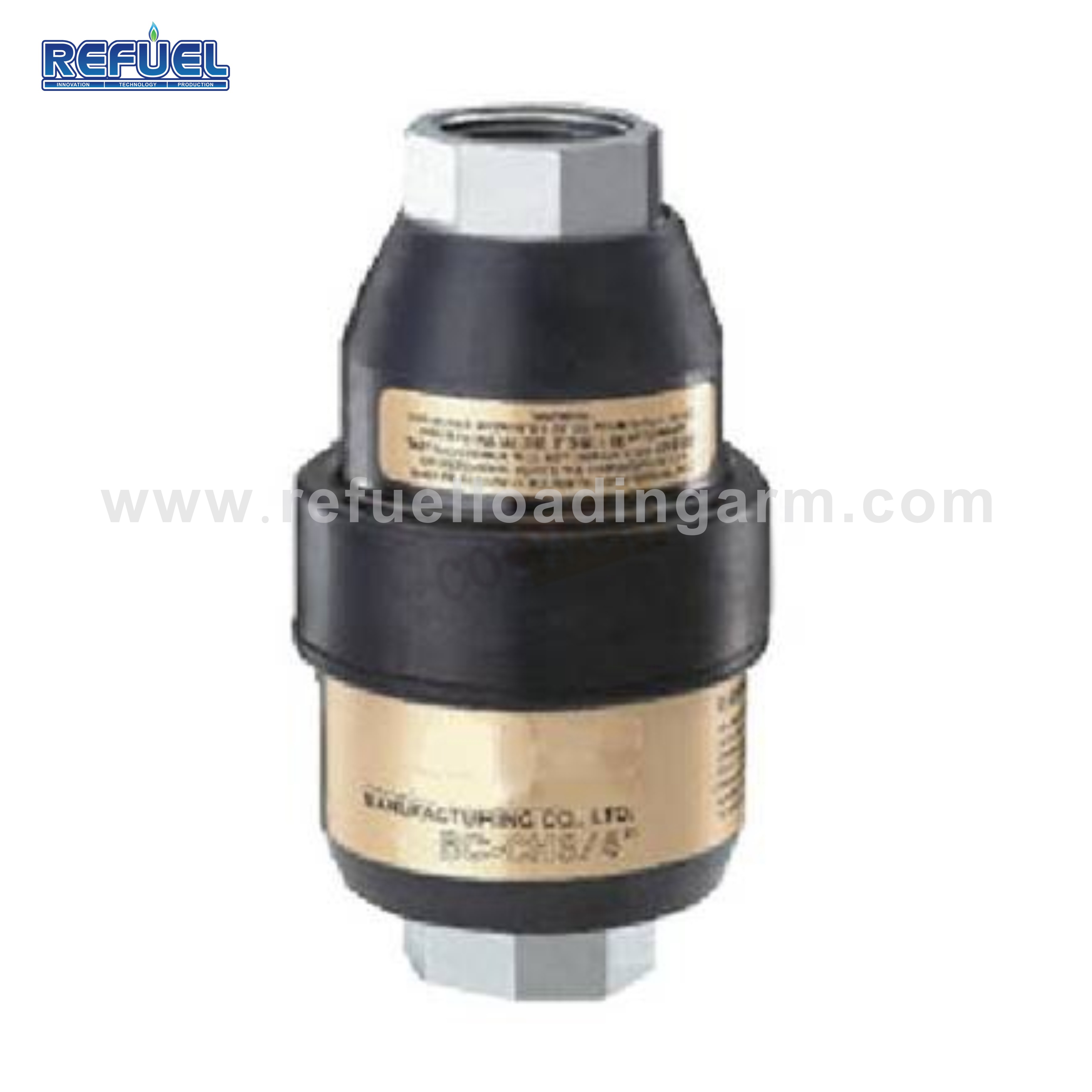

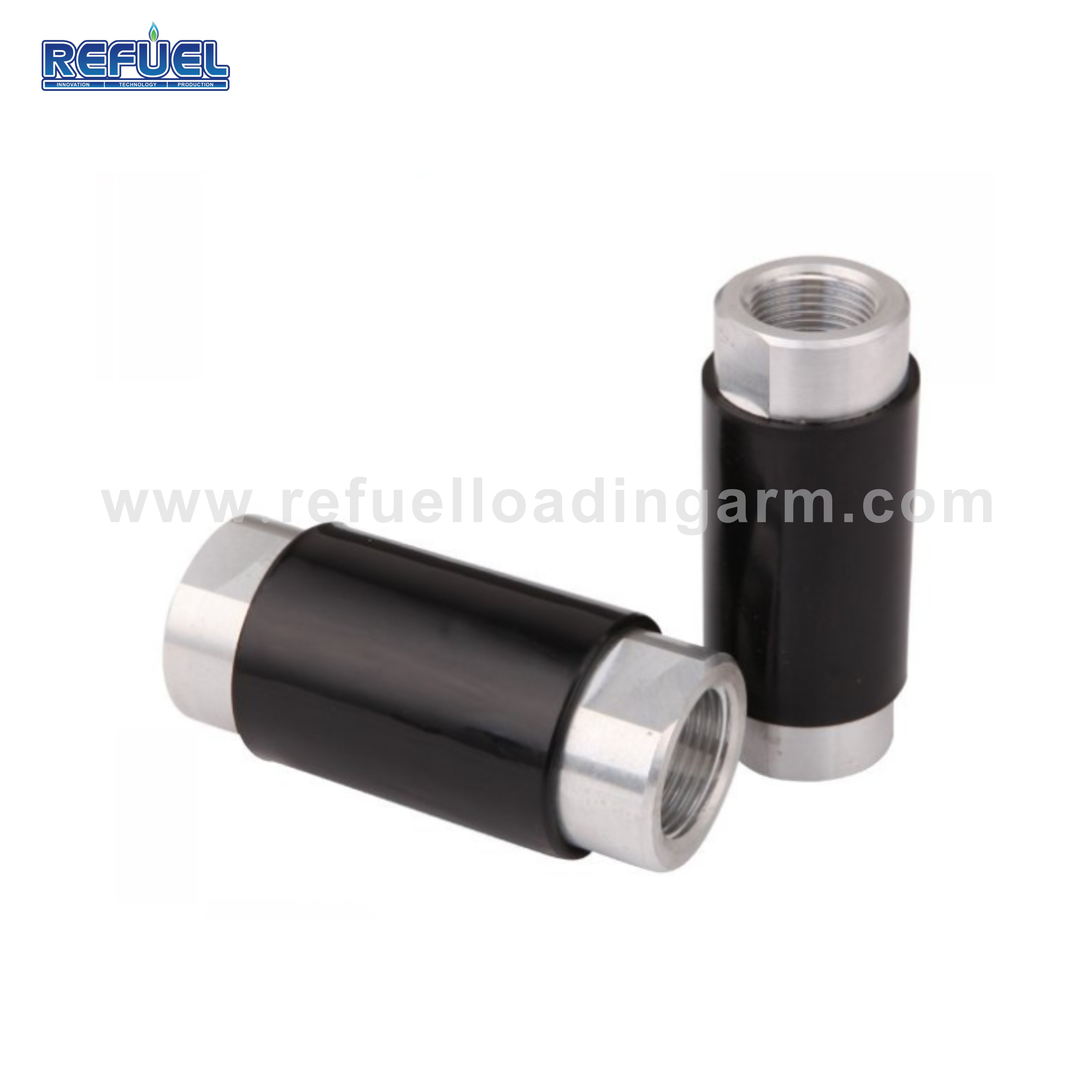

A、BC-CH Breakaway Valve
1.Description：
Breakaway Valve is designed to be installed on fuel dispensing hoses, and will separate when subjected to a designed pull force. The dual valve seat automatically, stopping the flow of fuel and limiting any fuel spillage, while protecting the dispensing equipment.
2.Technical data：
| Product # |
size |
Weight |
| BC-YC 801 |
NPT3/4” X NPT3/4” |
230g |
| BC-YC 802 |
BSP3/4” X BSP3/4” |
230g |
| BC-YC 803 |
NPT1” X NPT1” |
380g |
| BC-YC 804 |
BSP1”X BSP1” |
380g |
1)Materials: Body: Aluminum
Main Seals: Viton
Main Spring: Stainless steel
Guide and poppet: POM
Protective Sleeve: PVC
2)Thread:NPT, BSPT
3)Working pressure:0.18Mpa
4)100% factory tested.

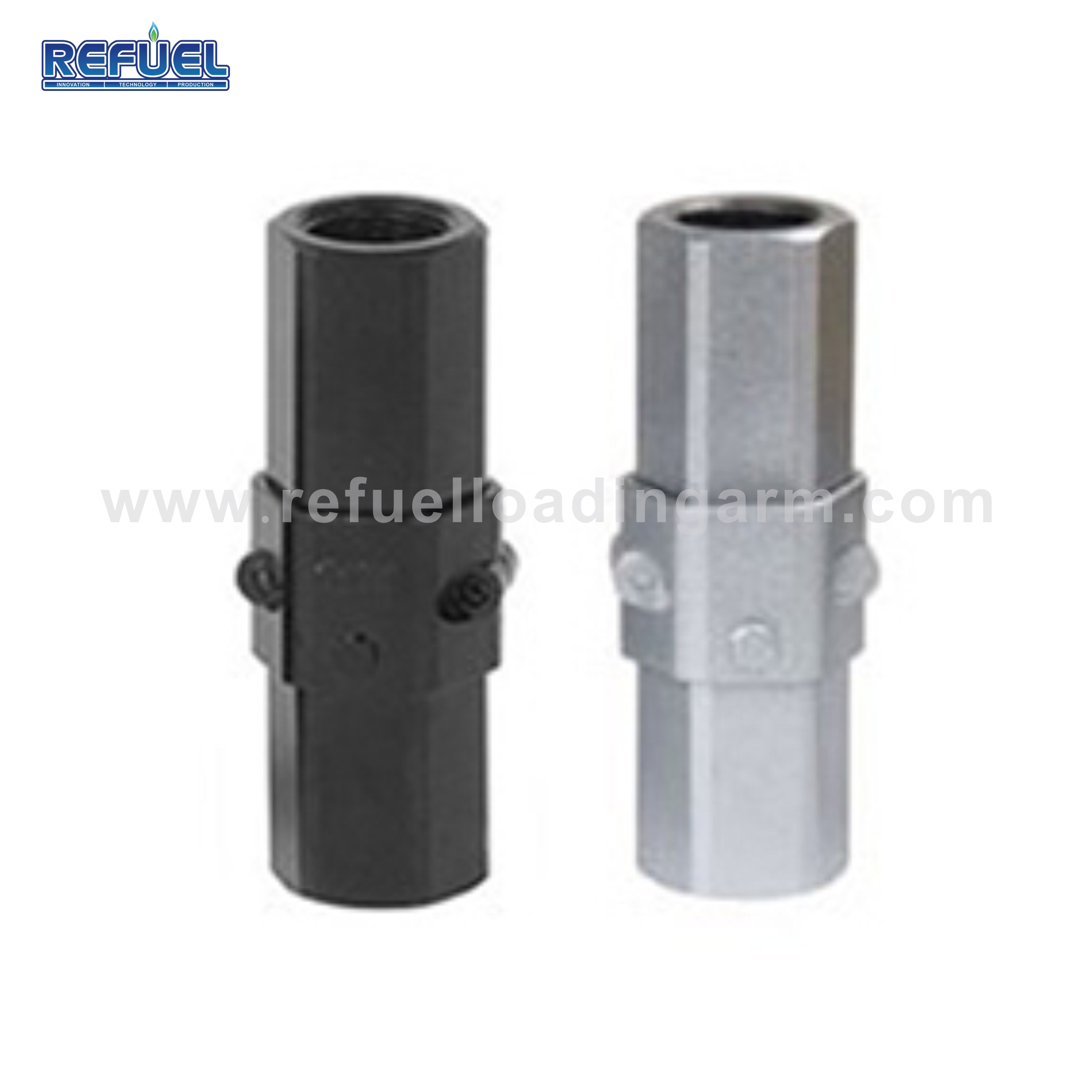

B. RE-TL Breakaway Valve
Specification: NPT / BSPT3/4''×NPT / BSPT3/4'' ( Flow rate: 0-60L/M)
NPT / BSPT 1'' ×NPT / BSPT 1'' ( Flow rate: 0-120L/M)
The OPW 66V Series breakaways(Single Use Breakaway 66V-0300) are designed and rigorously tested for use in todays fuels. Installed on fuel dispensing hoses, they will separate at the designed pull force, reducing expensive damage to the dispenser and piping system. Internal dual valves close automatically during separation, stopping the flow of fuel from both the dispenser and the separated hose, reducing environmental and health risks of potential spilled fuel.

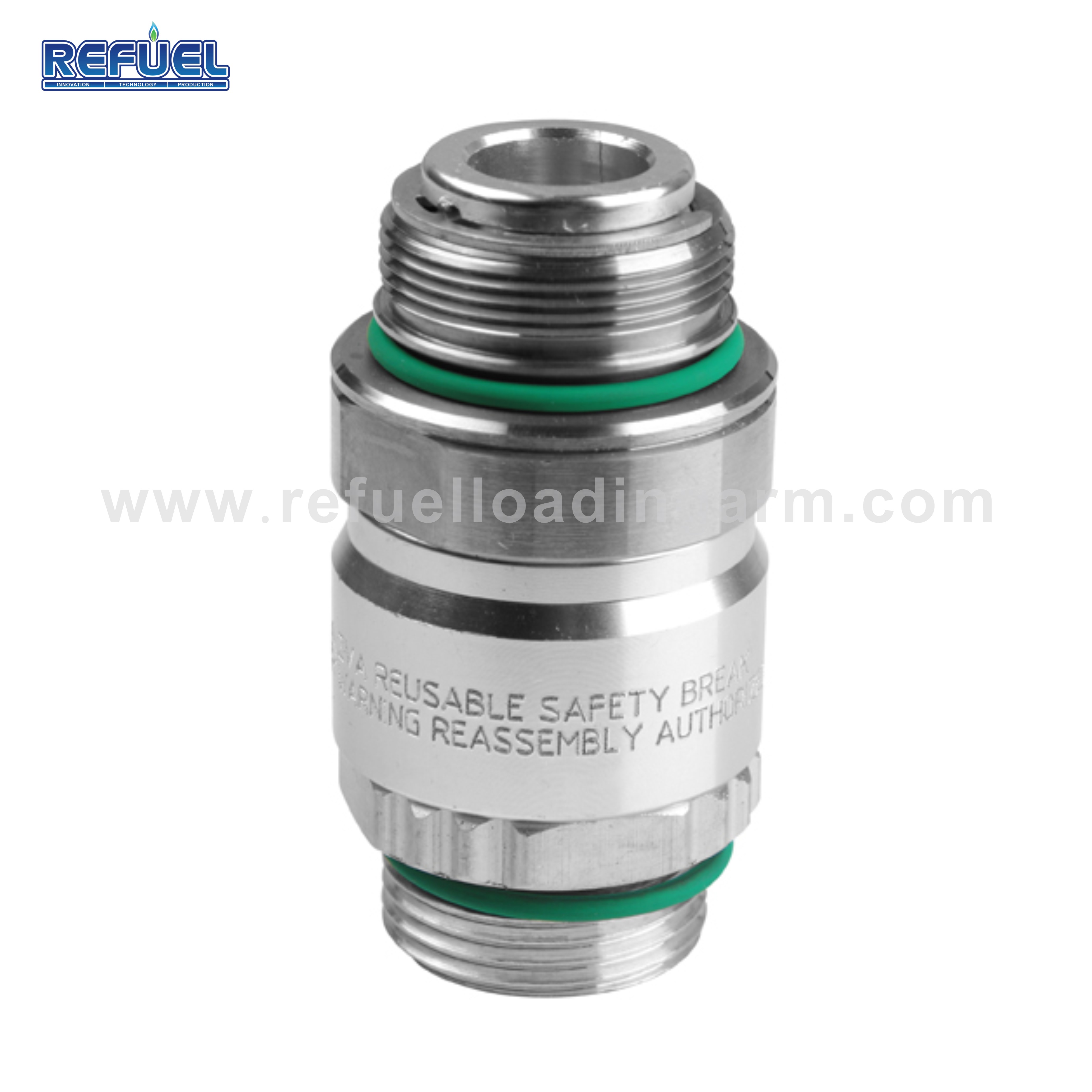

C、ZVA Reconnectable Breakaway
ZVA Reconnectable Breakaway is a self-sealing reusable breakaway coupling designed to protect dispenser, hose assembly and car against damage which can occur by drive-off incidents.
1.Materials: Body: Aluminum
Main Seals: Viton,polyurethane
2.Technical Specification:
| Outlet Thread |
M34×1.5 |
| Inlet Thread |
Female/Male, BSPT/NPT, 3/4”/1” |
| Pull-off force |
From 800N to 1500N |
| Net Weight |
0.23KG |
3.Ordering Specifications:
| Item No. |
| ZVA BW01 |
Female, BSPT, 3/4” |
| ZVA BW02 |
Male, BSPT, 3/4” |
| ZVA BW03 |
Female, NPT, 1” |
| ZVA BW04 |
Male, NPT, 1” |

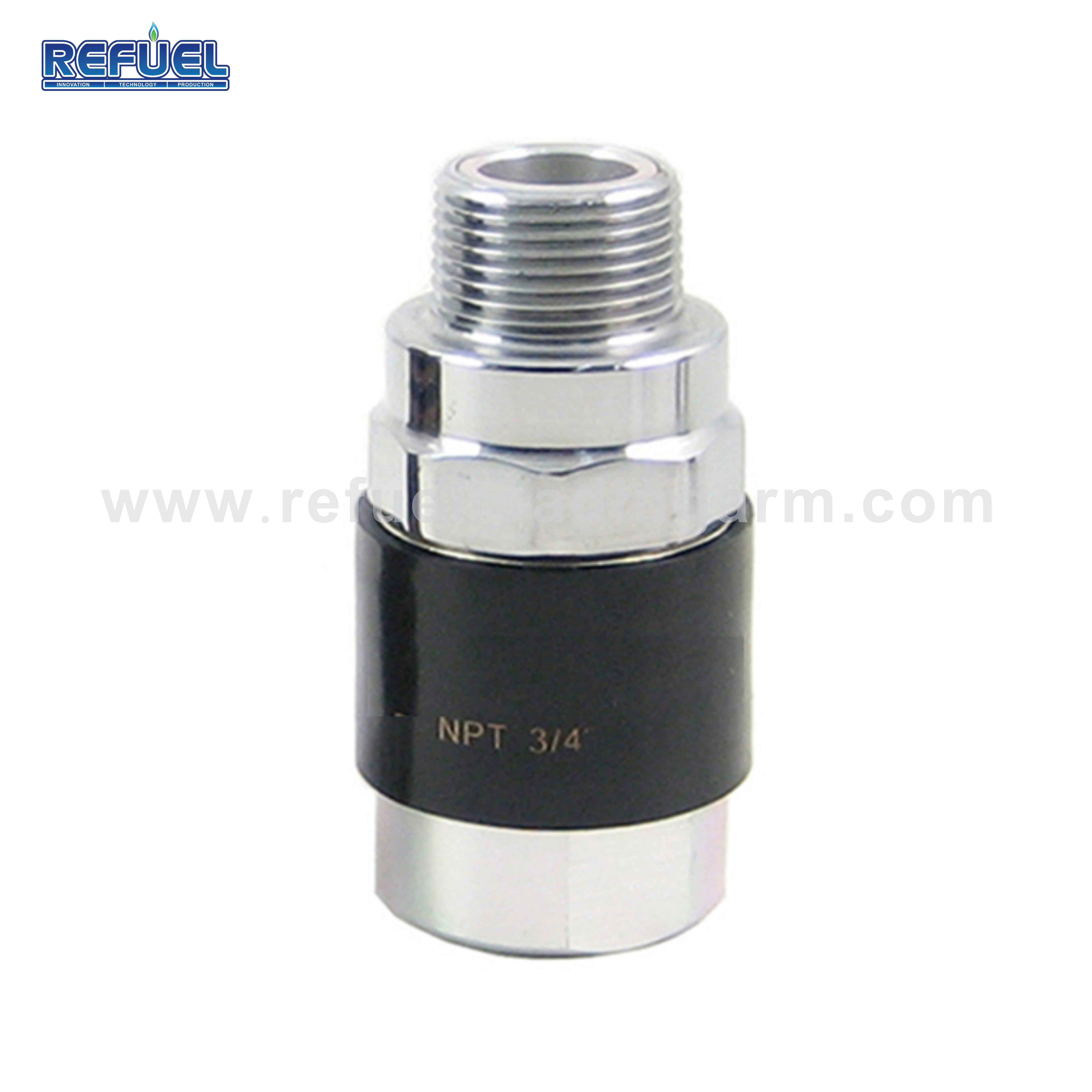

D、RE-ZL Swivel Breakaway
Swivel Breakaway is intended for easy installation at the nozzle inlet.The compact,lightweight design incorporates a 360° swivel rotation at the male end and one time breakaway.
1.Technical Specifications
| Thread |
NPT |
| Max.pull |
350LBS±5% |
| Diameter |
3/4 , 1" |
| Flow range |
3/4 0~60L/min
1" 0~90L/min |
2.Materials
| Body |
Aluminum Alloy,Brass |
| Sleeve |
Nylon |
| Seals |
Viton |
E、BC-CH Breakaway
BC-CH breakaway is reconnectablefor the conventional dispensing market. It is designed to be installed on fuel dispensing hoses, and will separate when subjected to a designated pull force.
The dual valves seat automatically stopping the flow of fuel and limiting any fuel spillage, while protecting the dispensing equipment. When reconnecting the separate halves, the seals tightly on an O-ring before the poppet stems engage to open the valve. For proper operation on high-hanging hoses, the breakaway must always be installed with straightening hose with a minimum length of 9”. For low hose applications, it should beinstalled down-stream of retractor cable.
1.Technical Specification
| Technical Specification |
| Inlet: |
BSPF/NPT 3/4” |
| Outlet: |
BSPF/NPT3/4” |
2.Materials:
Body: Die Cast Zinc
Main Seals: Viton
Main Spring: Stainless Steel
Guide & Poppet: POM
Protective Sleeve: PA66
3.Feature & Benefits:
1)Pull force: with a pull force of 250lbs±5%
2)Unique double-poppet design: with low pressure drop
3)Flow rate: 0-60L/Min
4)Working Pressure: 0.18Mpa
5)Coupling halves: protected by proven plastic sleeves
Easily reconnected: Just “push and twist” until you hear
an audible click, signifying the unit has been correctly
reconnected. Reconnection force approximately 15lbs
6)Line shock: It is able to absorb the effects of normal lineshock through the unique design of the disconnecting features.
