SJH Oil Viewing Device

Products

Swivel and joint

Description:
Flow Indicator allows the customers to see whether the fuel ( clean or contaminated) passing from the hose into the nozzle.

1. Technical data:

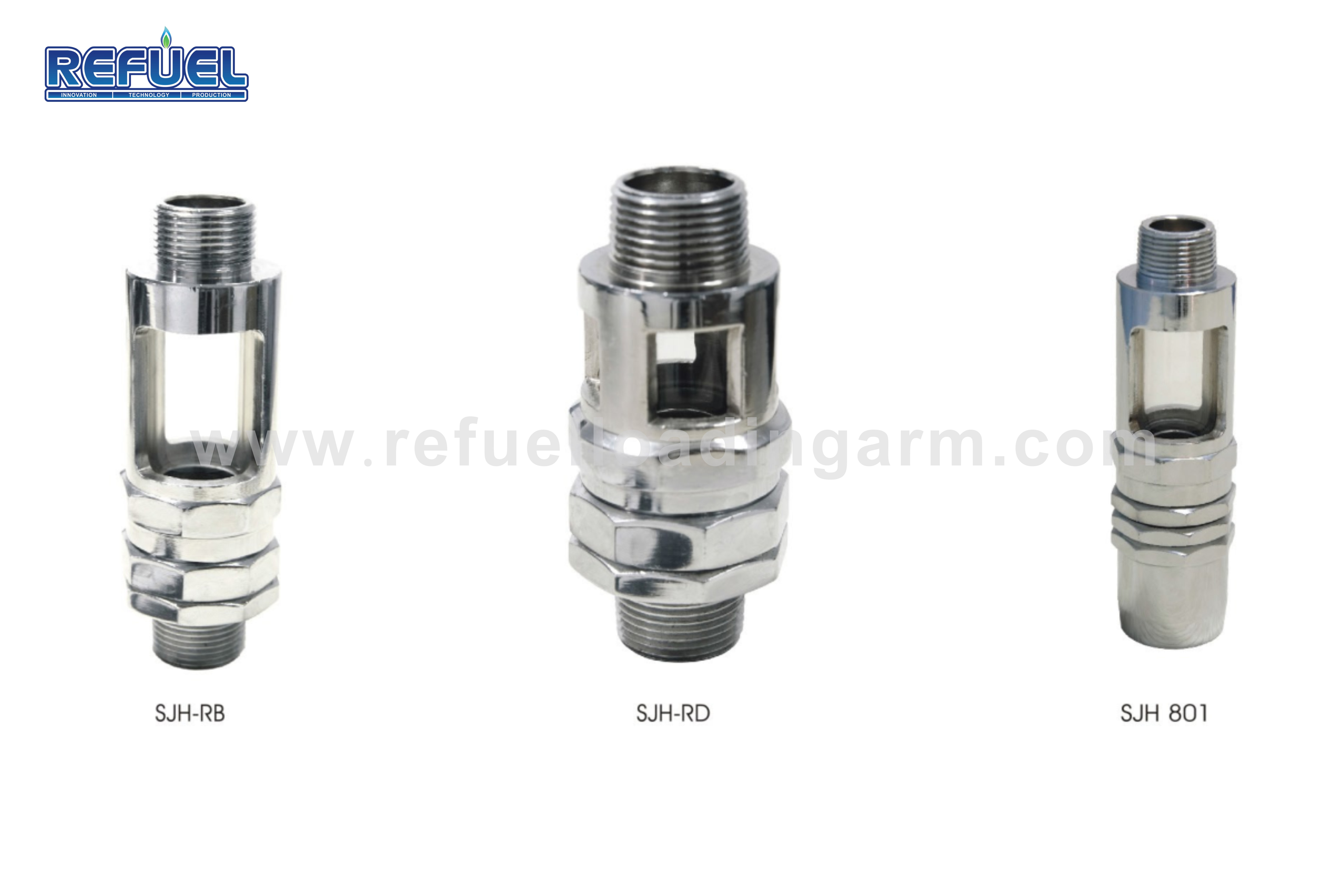

Product #	size
SJH-RB-801	NPT 3/4” male X NPT 3/4”Female
SJH-RB-802	BSPT 3/4” male X BSPT 3/4”Female
SJH-RB-803	BSPP 3/4” male X BSPP 3/4”Female
SJH-RD-801	NPT 3/4” male X NPT 3/4”Female
SJH-RD-802	BSPT 3/4” male X BSPT 3/4”Female
SJH-RD-803	BSPP 3/4” male X BSPP 3/4”Female
SJH 801	BSP 3/4”Xɸ30MM
SJH-802	NPT 3/4”Xɸ30MM
SJH-803	BSP 1”Xɸ30MM
SJH-804	NPT 1”Xɸ30MM

1)Flow range: 0-70L/min
   2)Nominal pressure: 0.2Mpa
   3)Thread:NPT, BSPT
4)Materials: Body: brass ( Chromium-plating)
           Viewing glass:Toughened glass
           Seals:Buna-N O-ring
Bearing:Iron ball
Surface: Electronic chrome plated
5)360°rotation can reduce the physical strain.
   6)100% factory tested.
