Description：

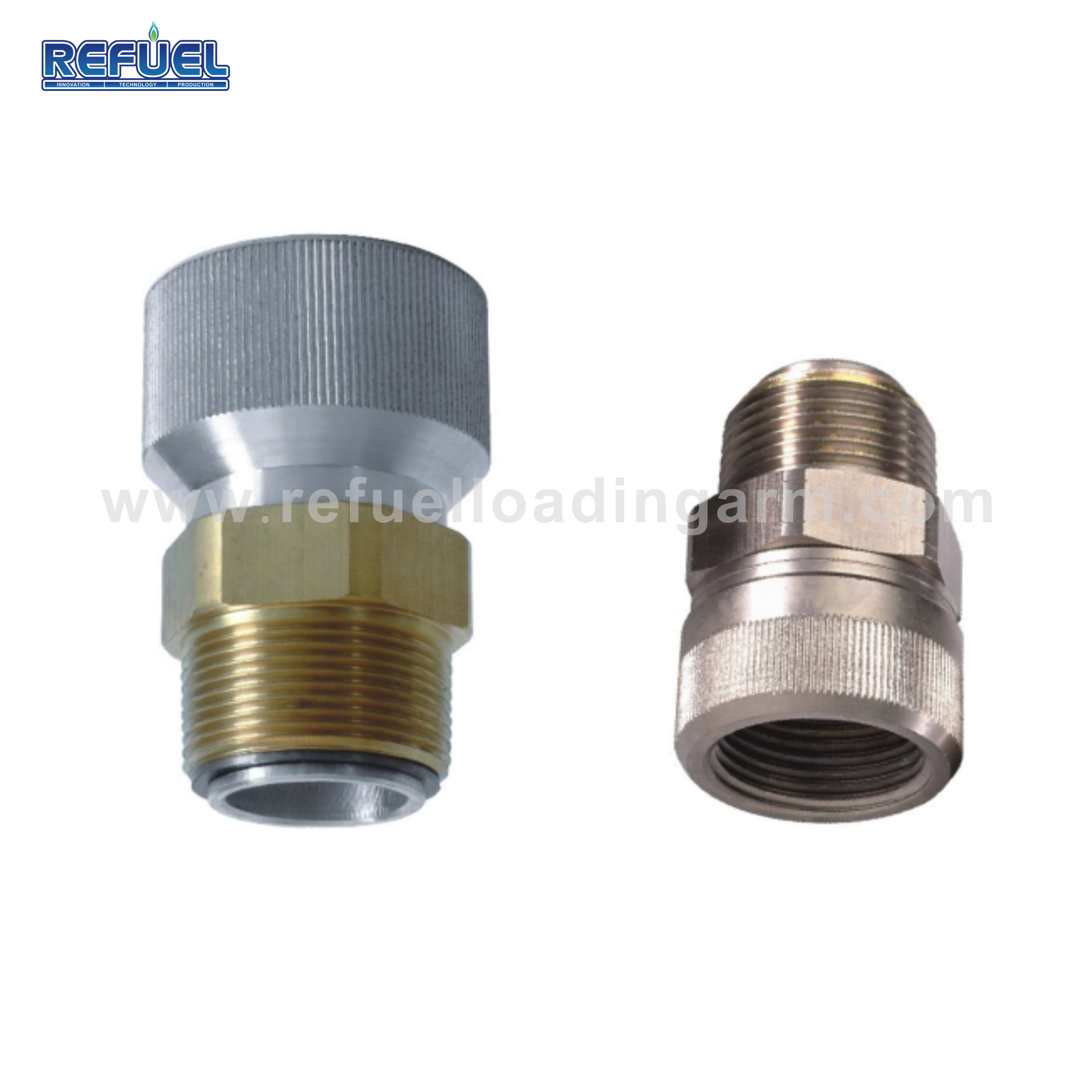

36S7 Swivel is designed for use with fuel nozzle. It provides 360°rotation.The full-circle swivel reduces the physical strain of aligning the nozzle with the fill-pipe. Different threads and different calibers can be replaced freely.
1.Technical data：
| Item No. | Size |
| TDW-36S01 | NPT 3/4" ×3/4" |
| TDW-36S02 | NPT 3/4" ×1" |
| TDW-36S03 | NPT 1" ×1" |
| TDW-36S04 | BSPT 3/4" ×3/4" |
| TDW-36S05 | BSPT 3/4" ×1" |
| TDW-36S06 | BSPT 1" ×1" |
| Product # | size |
| 36S 701 | NPT 3/4”(Male) x NPT 3/4”(Female) |
| 36S 702 | NPT 3/4”(Male) x BSP 3/4”(Female) |
| 36S 703 | NPT 3/4”(Male) x NPT 1”(Female) |
| 36S 704 | NPT 3/4”(Male) x BSP 1”(Female) |
| 36S 705 | BSP 3/4”(Male) x NPT 3/4”(Female) |
| 36S 706 | BSP 3/4”(Male) x BSP 3/4”(Female) |
| 36S 707 | BSP 3/4”(Male) x NPT 1”(Female) |
| 36S 708 | BSP 3/4”(Male) x BSP 1”(Female) |
| 36S 709 | NPT 1”(Male) x NPT 3/4”(Female) |
| 36S 710 | NPT 1”(Male) x BSP 3/4”(Female) |
| 36S 711 | NPT 1”(Male) x NPT 1”(Female) |
| 36S 712 | NPT 1”(Male) x BSP 1”(Female) |
| 36S 713 | NPT 1”(Male) x NPT 3/4”(Female) |
| 36S 714 | NPT 1”(Male) x BSP 3/4”(Female) |
| 36S 715 | NPT 1”(Male) x NPT1”(Female) |
| 36S 716 | NPT 1”(Male) x BSP1”(Female) |
| 36S 717 | NPT 1 1/2”(Male) x NPT1 1/2”(Female) |
| 36S 718 | NPT 1 1/2”(Male) x BSP1 1/2”(Female) |
| 36S 719 | BSPT 1 1/2”(Male) x NPT1 1/2”(Female) |
| 36S 720 | BSPT 1 1/2”(Male) x BSP 1 1/2”(Female) |
