JGHB hose swivel

Products

Swivel and joint

Description：
Designed for use between the hose and the pipe, or between the hose and other equipment. JGHB provides 360°swivel action.The full-circle swivel reduces the physical strain of aligning the nozzle with fill-pipe.

1. Technical data.

Product #	size
JGHB 501	BSPP/BSPT 3/4” x5/8” I.D of Hose
JGHB 502	NPT 3/4” x 5/8” I.D of Hose
JGHB 503	BSPP/BSPT 3/4” x3/4” I.D of Hose
JGHB 504	NPT 3/4” x3/4” I.D of Hose
JGHB 505	BSPP/BSPT 1” x1” I.D of Hose
JGHB 506	NPT 1” x1” I.D of Hose

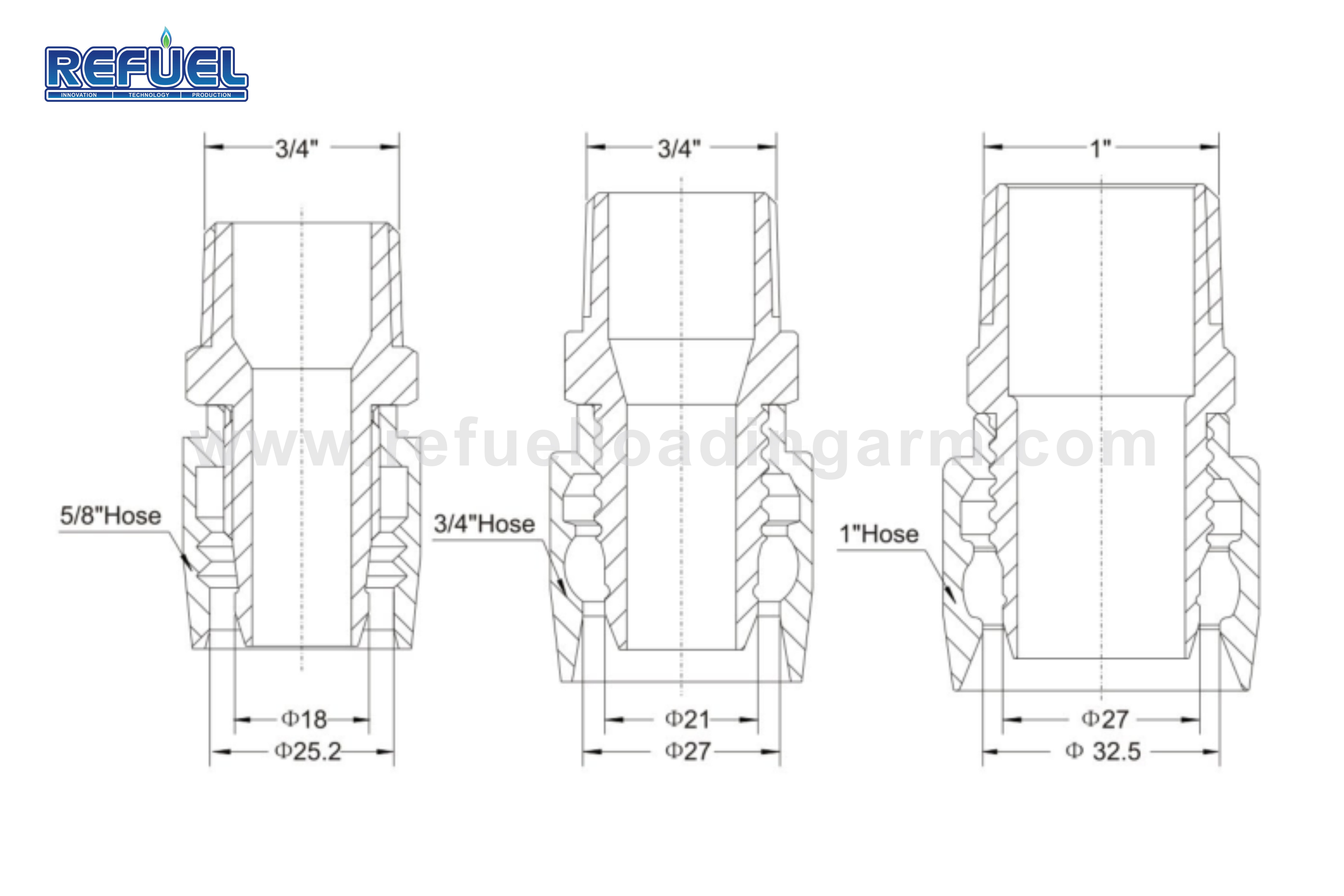

3.Drawing:

4.Features
  1)Designed for use between the hose and the pipe, or between the hose and other equipment. JGHB provides 360°swivel action.
2)100% factory tested.
  3))Thread:NPT, BSPT.
  4)Materials: Body: brass
Bushing:Brass
Seals: Buna-N/ Viton
Surface: Electronic chrome plated

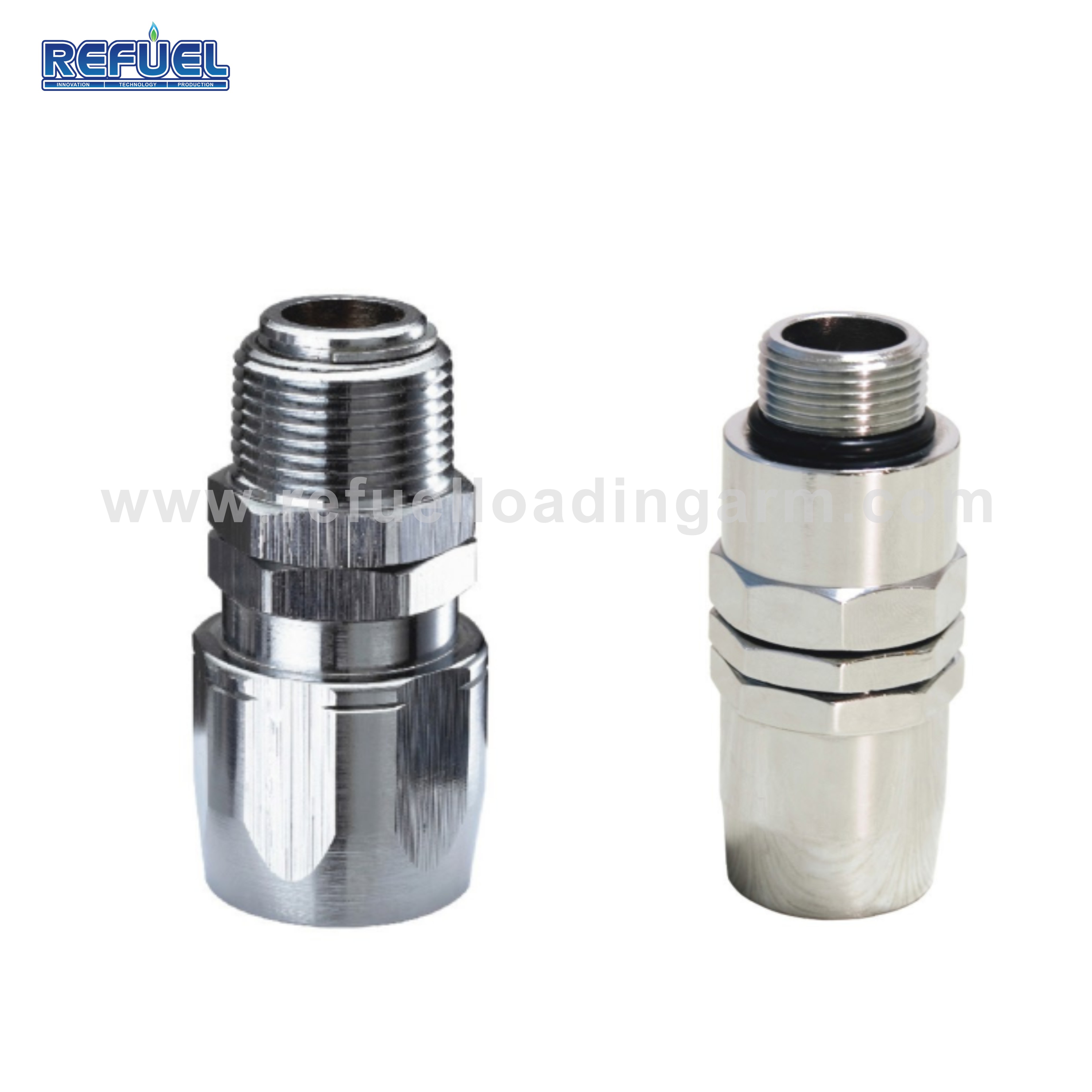

5. Finished picture:
