Description

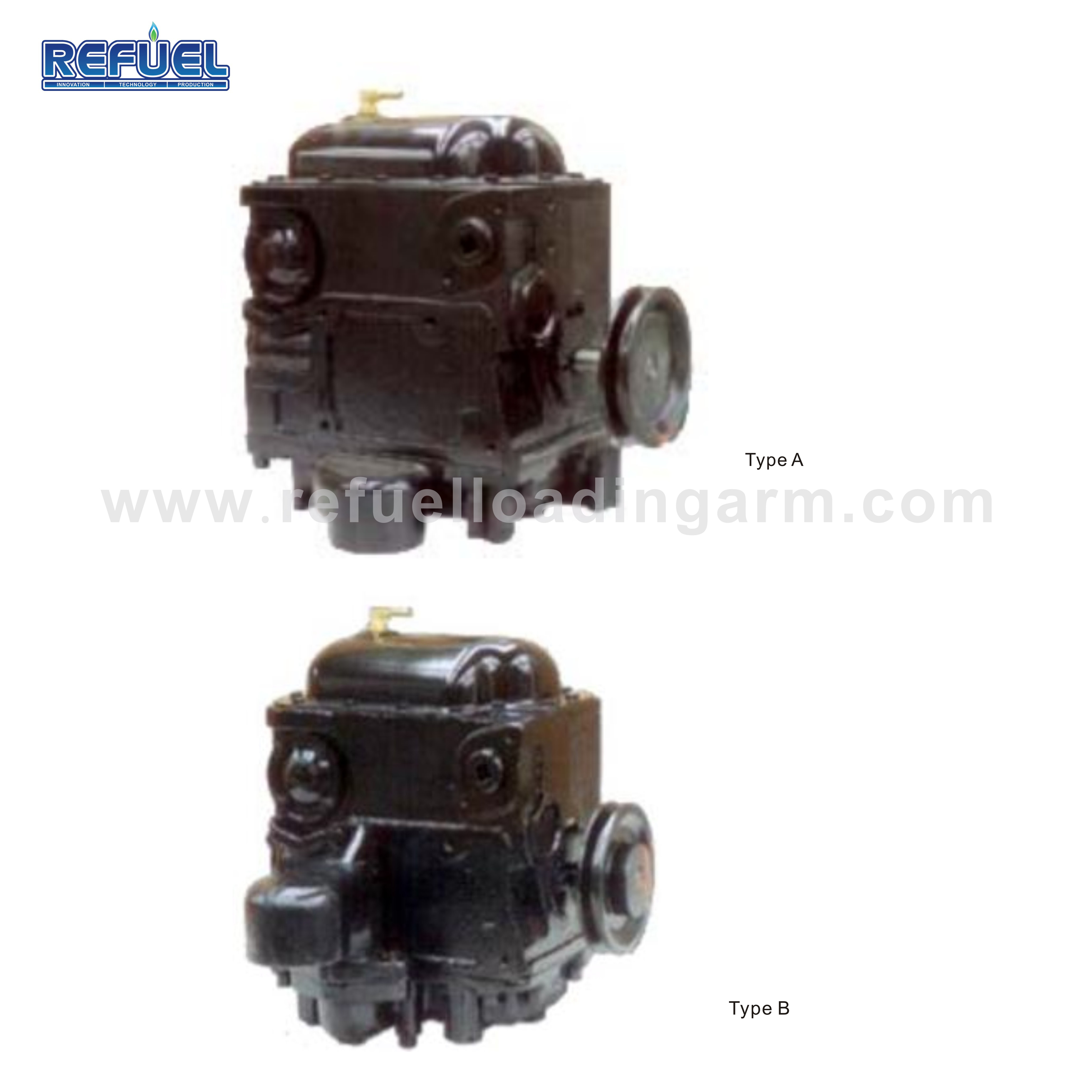

ZCH-50/ZCH-80 Gear Pump, made by cast lron, is applicable to gasoline, kerosene, diesel and gasohol with A type and B type inlets and air separator, by pass valve , check valve, inlet filter are built in.
1.Technical Specification
| Model： | ZCH-50 | ZCH-80 |
| Flow Range： | 45L~55 L/Min | 75L~85 L/Min |
| Speed： | 900 RPM | 900 RPM |
| Vacuum： | ≥0.06 MPa | ≥0.06 MPa |
| Working Pressure： | 0.18~0.24 MPa | 0.18~0.24 MPa |
| Noise： | ≤72 dB | ≤72 dB |
| Package Data | ||
| Package: | 1 pc/carton | 1 pc/carton |
| Net Weight: | 37 kgs | 40 kgs |
| Gross Weight: | 42 kgs | 48 kgs |
| Dimension: | 340×260×370mm | 360×300×420mm |
