Description

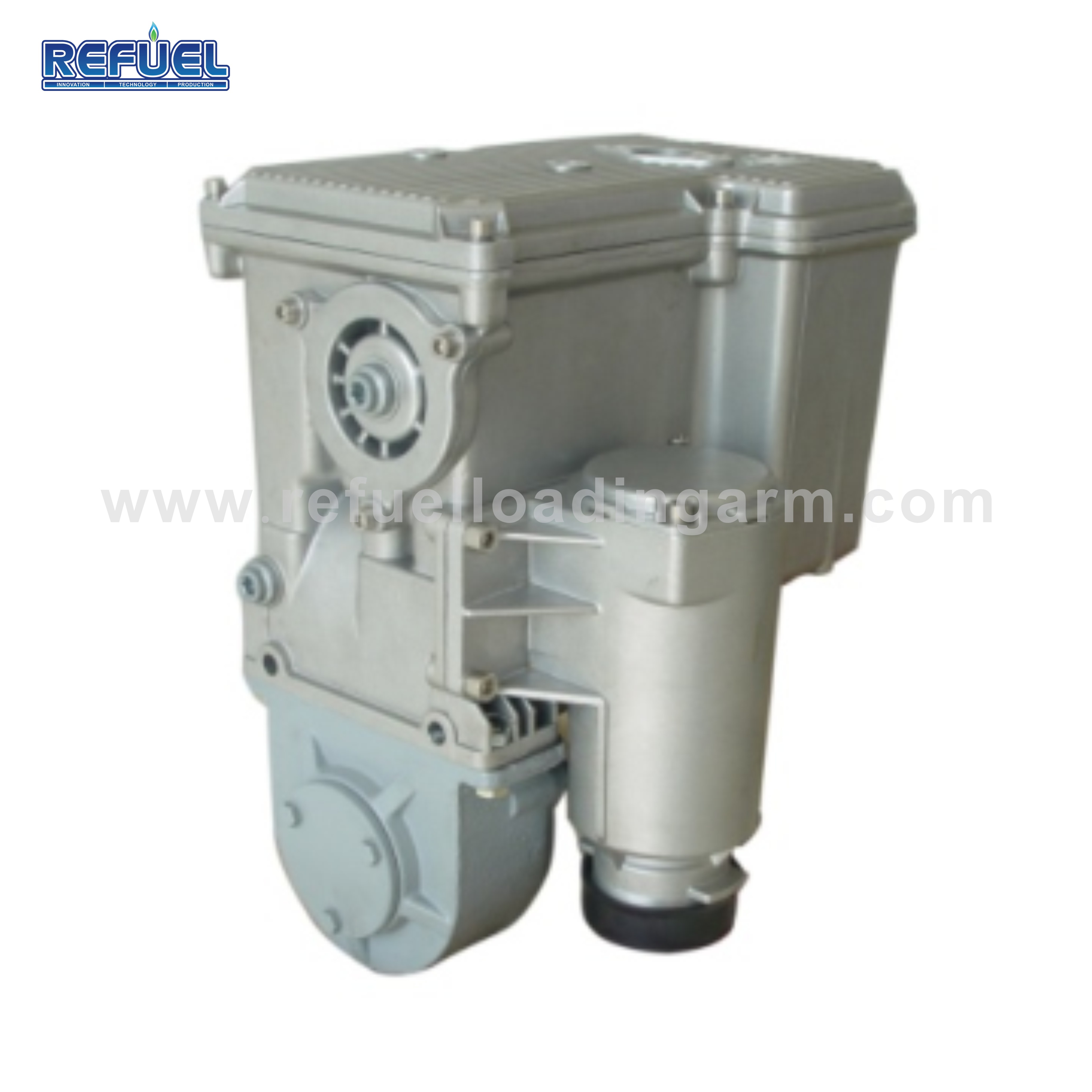

NP pump unit includes pump & air eliminator for fuel dispenser. Alublock 2000 pumping unit composed of aluminium body, filter housing and pump. NP pump unit is light, with high capacity air eliminating efficiency. Its working pressure can be adjusted in NP air eliminator.
1. Feature:
Alublock 2000 pump unit presents the following advantages:
1)reduced number of components
2)easy maintenance and easy installation.
3)reduced dimensions and weight
4)no belts or pulleys in motor/pump connection
5)ample filtering surface
2.Technical Specification
| Flow Range： | 75L/Min | |
| Speed.： | 1400RPM | |
| Vacuum： | ±0.2% | |
| Noise： | ≤0.07% | |
| Package Data | ||
| Pump | Air Eliminator | |
| Package: | 2pcs/carton | 1pcs/carton |
| Net Weight: | 12kgs | 7kgs |
| Gross Weight: | 12.5kgs | 8kgs |
| Dimension: | 280×260×450mm | 390×300×270mm |
