Description

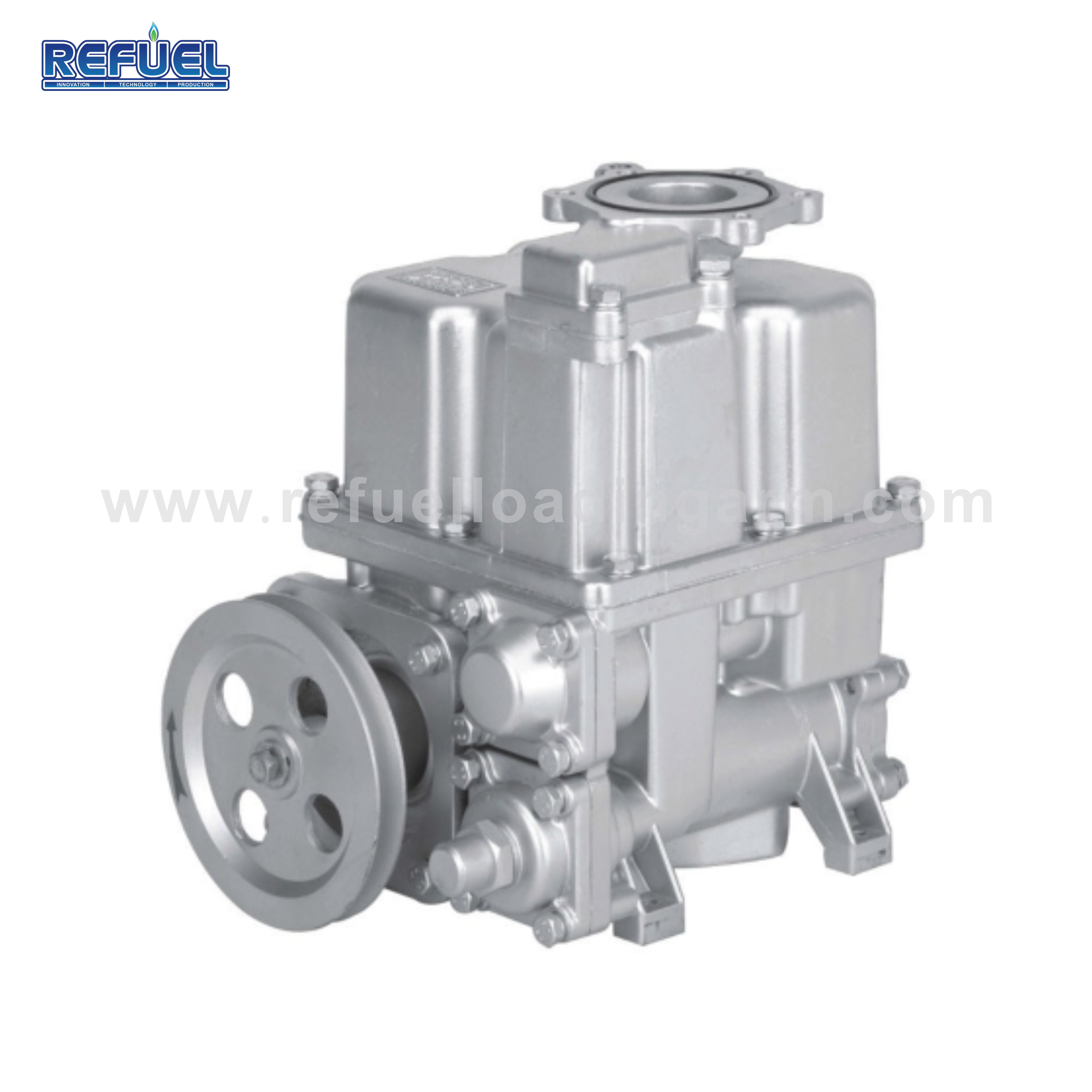

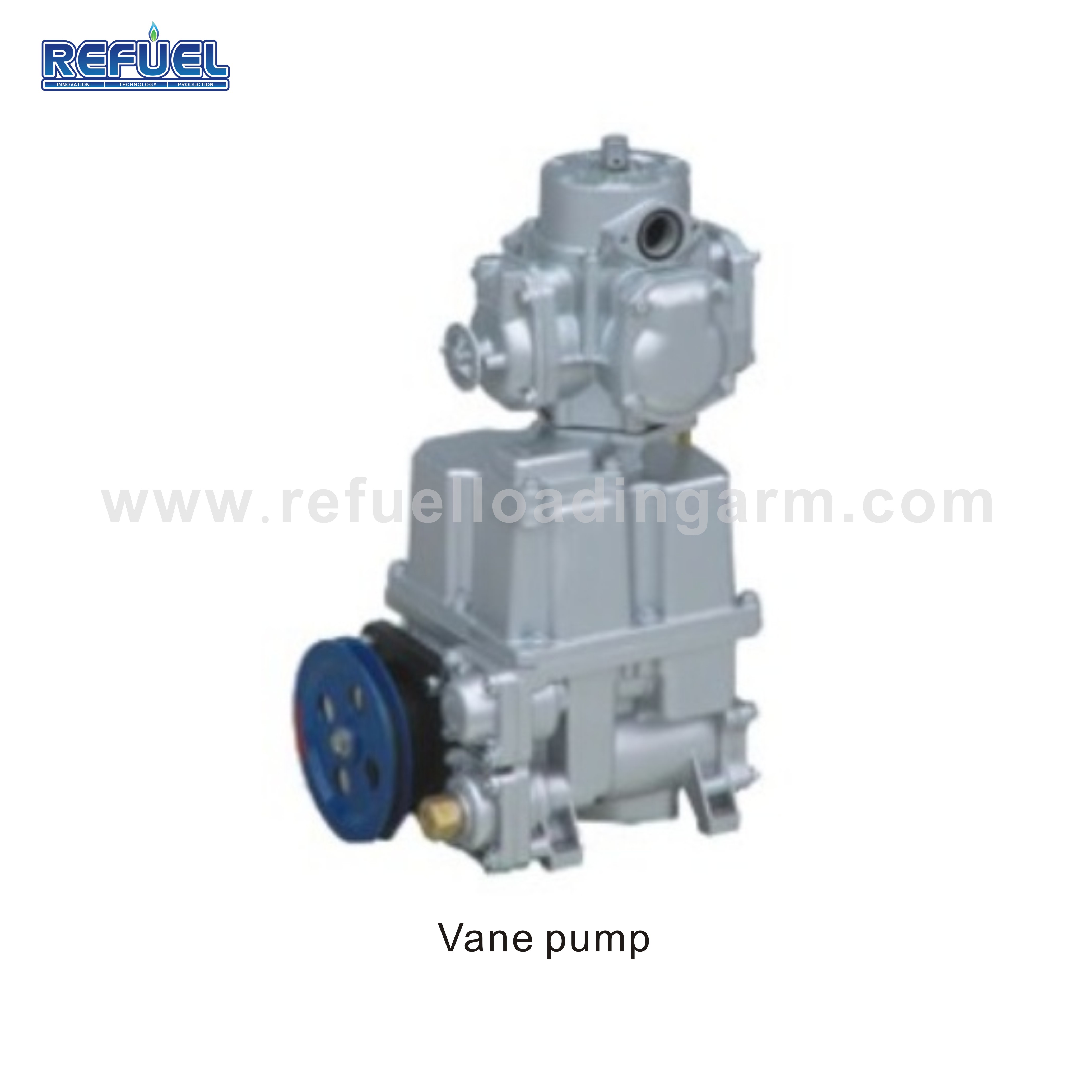

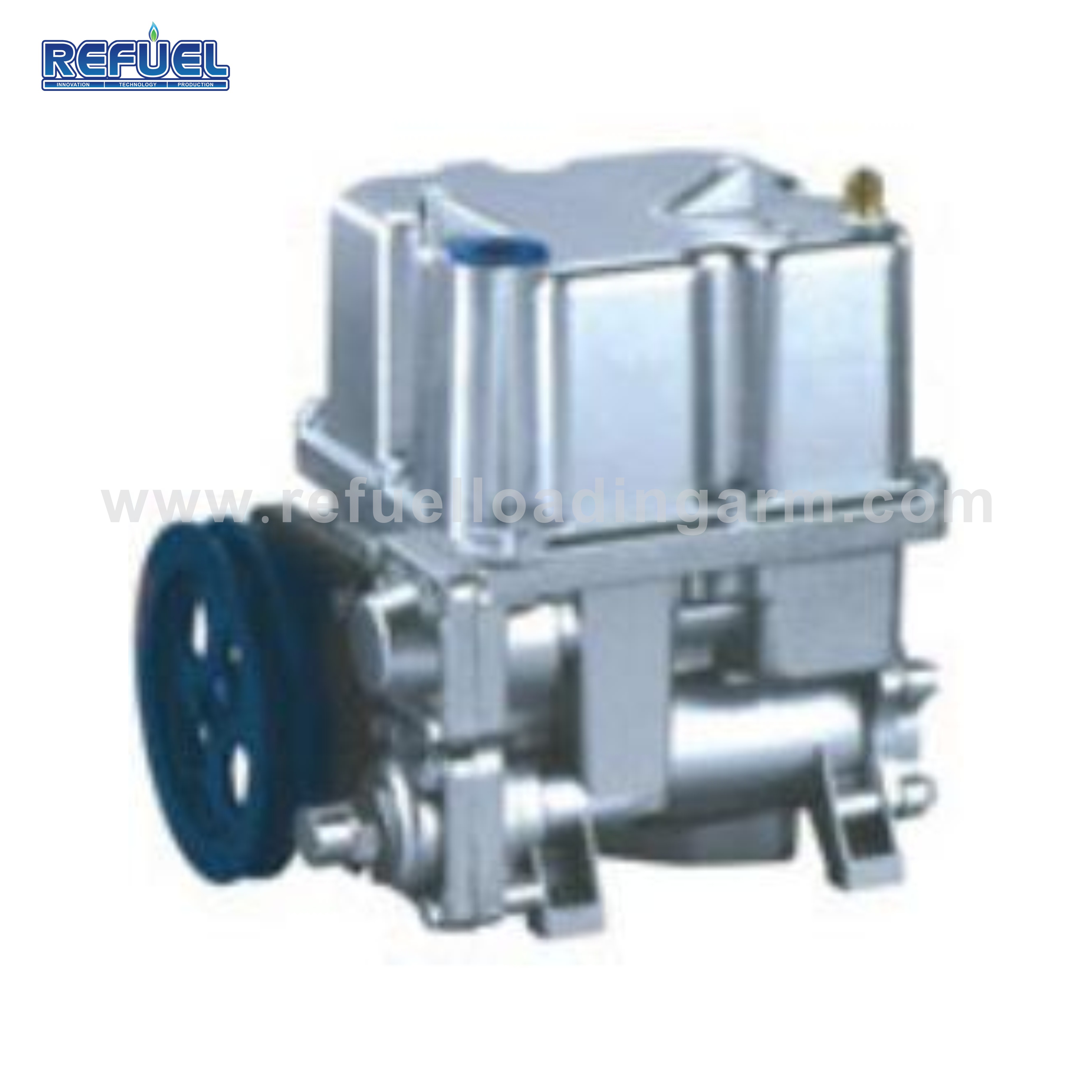

ZYB-50/ZYB-80 Vane Pump is Bennett type combination vane pump for fuel dispenser, there are air separator, by pass valve and filter inside. There are three different top covers for different connecting pipes. A type. B type and C type. With the advantage of low noise, high flow rate, long life service, etc .
Combination vane pump is applying to transport other mixed liquids of gas and liquid.Which can separate gasoline, coal oil, diesel oil, etc. oils from air, this pump collects suction, separation function together.
T75 PUMPING UNIT has the features as follows: reasonable design, compact structure,excellent lift, low noise, long service life, with aluminium alloy shell, and beautiful appearance. Fuel dispenser vane pump has superior air elimination funtions. It is easily serviced and field rebuild.There is internal (cleanable) stainless steel 40 mesh strainer inside.
1.Technical Specification
| Model： | ZYB-50 | ZYB-80 |
| Flow Range： | 45L~65 L/Min | 75L~85 L/Min |
| Speed： | 630 RPM | 630 RPM |
| Vacuum： | ≥0.054 MPa | ≥0.054 MPa |
| Working Pressure： | 0.16~0.2 MPa | 0.2~0.25 MPa |
| Noise： | ≤72 dB | ≤72 dB |
| Package Data | ||
| Package: | 1 pc/carton | 1 pc/carton |
| Net Weight: | 17 kgs | 17 kgs |
| Gross Weight: | 17.5 kgs | 17.5 kgs |
| Dimension: | 340×260×370mm | 340×260×370mm |
