Description

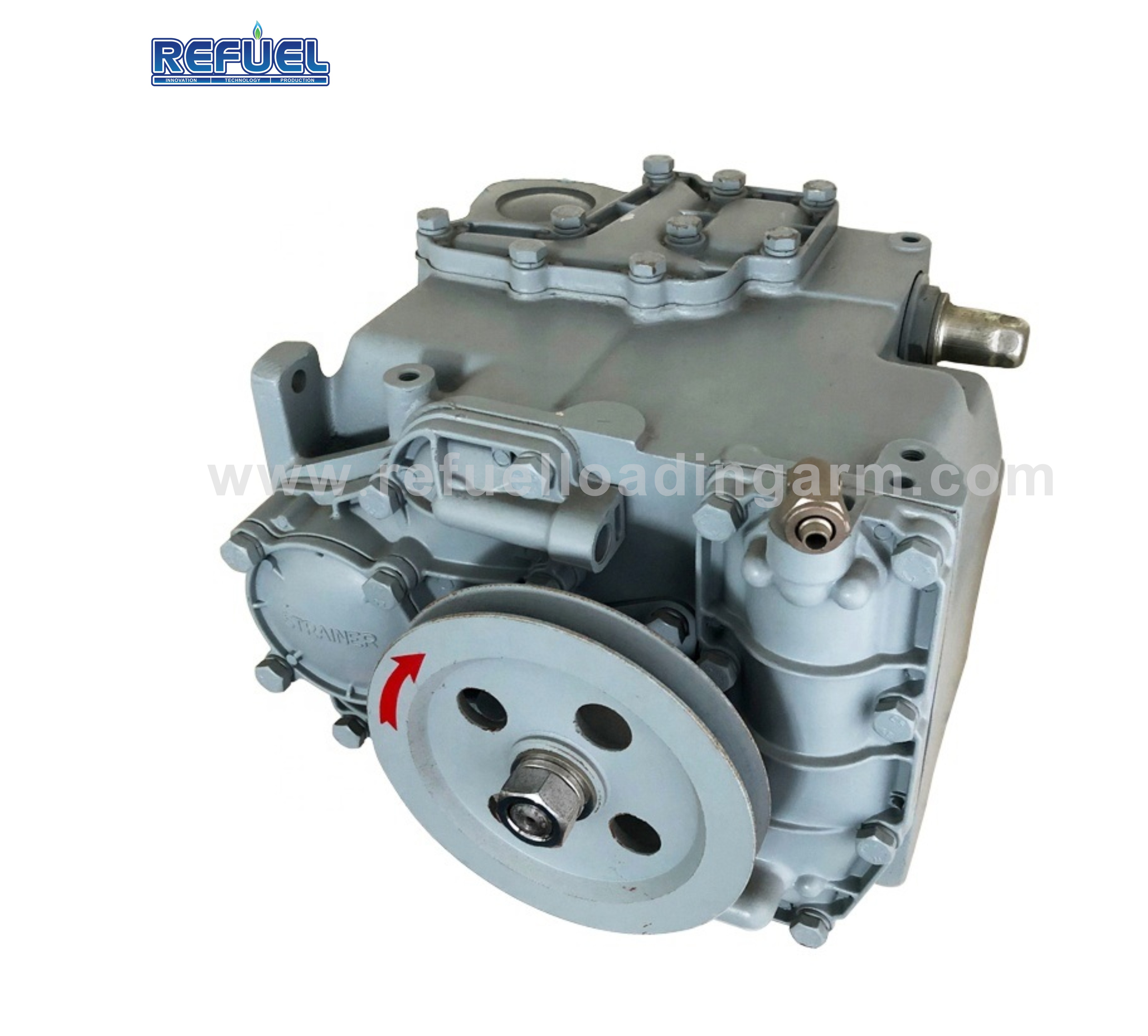

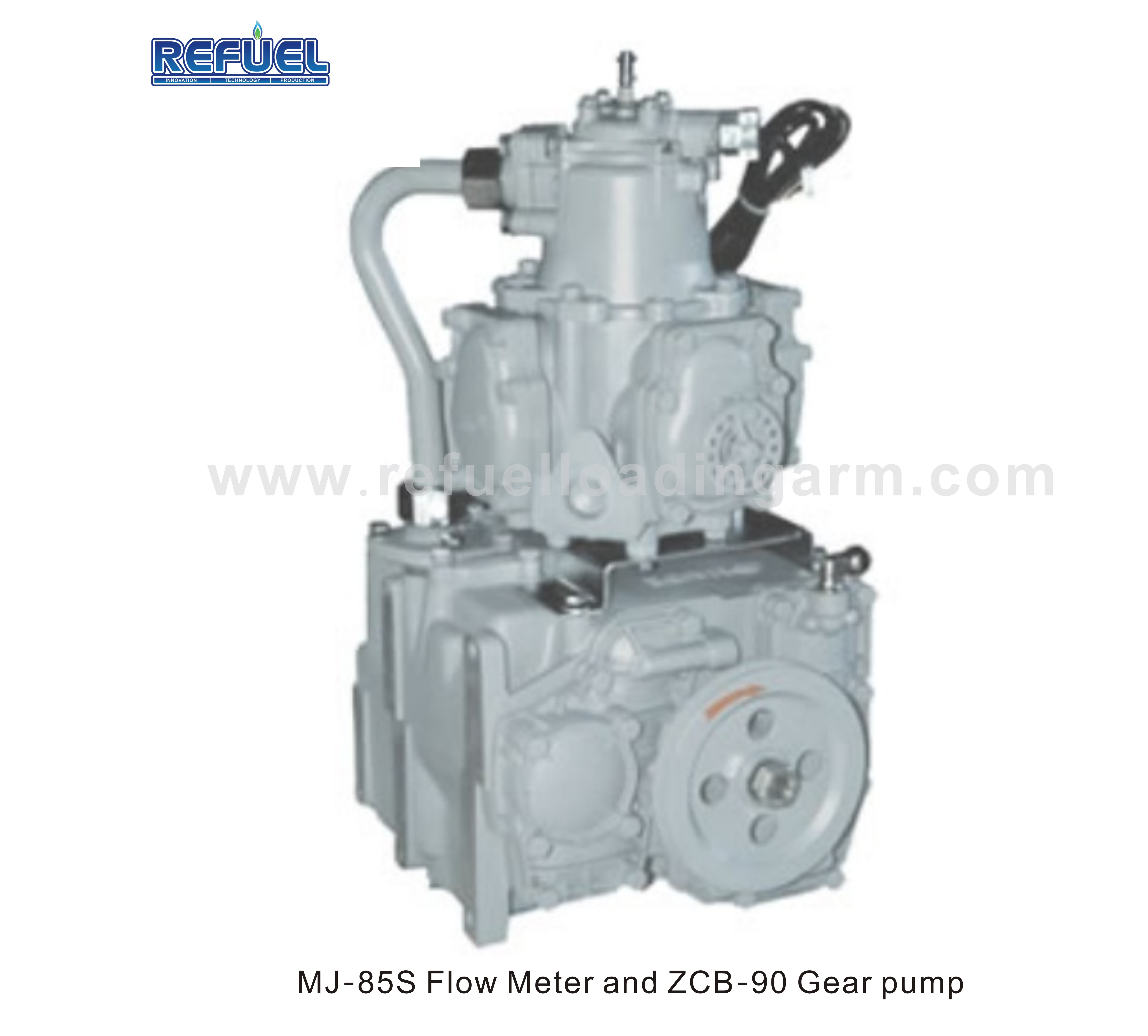

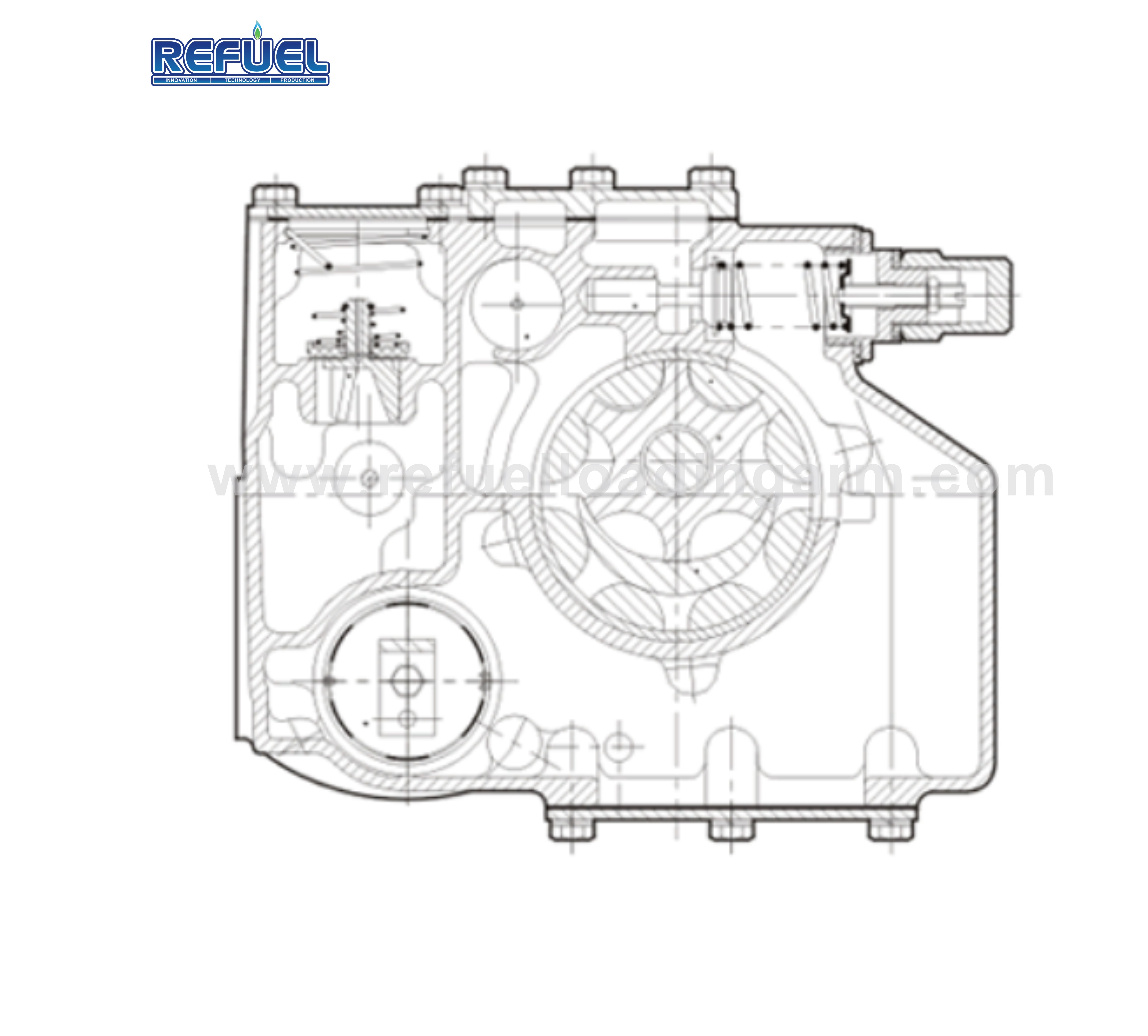

ZCB-90 Gear Pump is widely used in fuel dispenser, whose material of body is alloy aluminum founded under low pressure, it is applicable to gasoline, kerosene, diesel oil and compound of them. There are enhanced air separator, by pass valve, check valve, inlet and outlet filter decompression inside. It is easier maintenance.
ZCB-90 Tatsuno type gear pump is known for their high quality, durability and accuracy. Compact structure is designed to give the best performance.
This product combination pump and air separator , it has advantages as small volume,compact structure ,long working life,low noise, strong separating capability etc.
Tatsuno type gear pump applies to form a complete set. Also applying to transport other mixed liquids. It can separate gasoline, coal oil, diesel oil, etc. oils from air, this pump collects suction, separation function together. It has the features as follows: reasonable design, compact structure, low noise, long service life, with aluminum alloy shell, and beautiful mold.
| Technical Specification | |
| Flow Range： | 45L~90 L/Min |
| Speed.： | 680~980 RPM |
| Working Pressure： | 0.18~0.3 MPa |
| Vacuum： | ≥0.06 MPa |
| Noise： | ≤72 dB |
| Package Data | |
| Package: | 1 pc/carton |
| Net Weight: | 17 kgs |
| Gross Weight: | 17.5 kgs |
| Dimension: | 360×320×300mm |
