Description

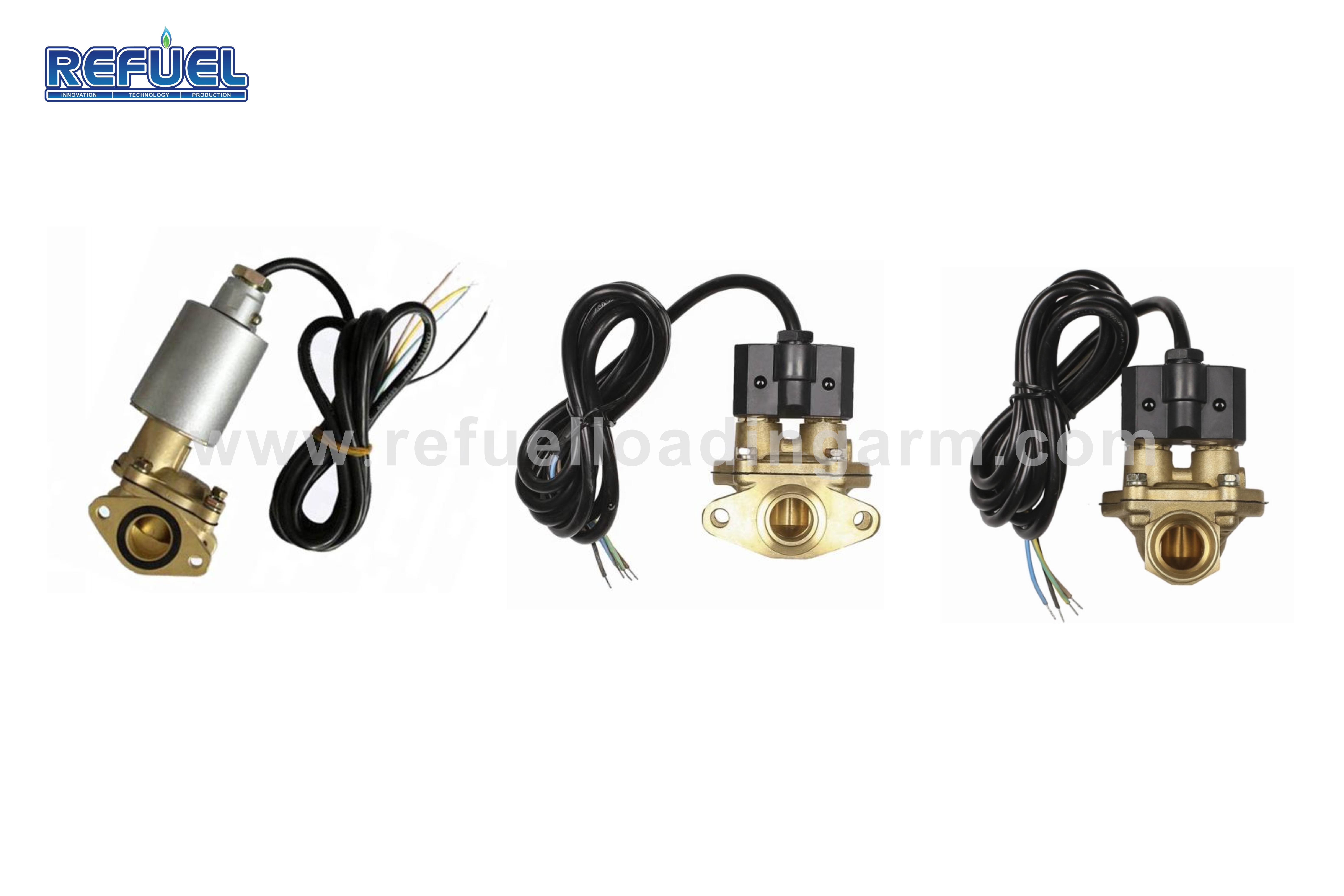

Solenoid valve is used in fuel dispenser and LPG dispenser.Brass dual flow solenoid valve is used to control the high and low flow of the computerized fuel dispenser to achieve rapid fueling with high efficiency and give a precise measuring of the fueled amount, the suitable media are inclusive of petroleum, diesel, kerosene and LPG.
Diaphragm of main valve adopts imported special rubber, with high anti-corrosion and resisting low temperature at -20°C. It is controlled by built-in overlapped or parallel-connected electromagnetic precursor valve, with advanced craft and reliable action.
Dual-flow solenoid valve is precise action, reliable, long service. Class F loop with good insulation. Anti-Explosion ClassEXdB.
3/4 inch and 1 inch are available. Flanged and thread connection ways is for your option. Fuel dispenser dual-flow solenoid valve can match Gilbarco Tokheim, Dresser, Tatsuno, Censtar fuel dispenser.
1.Technical Specification
| Model: MSF Series Solenoid valve | |||
| Item | Parameter | Item | Parameter |
| Medium | Petrol,diesel,kerosene etc | Ration 5L | Preact 0.5L |
| Ambient Temperature | -40℃~+55℃ | Displayed Value when main Valve Closed | ≤4.85L |
| Medium Temperature | -40℃~+55℃ | Voltage Input | AC220V 50/60HZ,AC110V 50/60HZ DC12V,DC24V etc. |
| Pressure Range | 0.035~0.35MPa | Voltage deviation | -10%~+15% |
| Lead Length | 1.5m(standard) | Relative humidity | ≤95% |
| Flow DN25(1”) | >40L/min(Big Flow) 3~4.5L/min(Small Flow) | Insulating Strength | ≥20MΩ |
| Working Mode | 100% | Power | 2x5.5W |
| Anti-Explosion Mark | Ex mb II T3 | Coil Class | H |
| Material of valve body and valve cover | Copper or Aluminum Alloy | Life cycle | Under nomal working condition, the continuous cycle time is above 800,000 |
| Other description | |||
| Product features | High quality, cost-effective | ||
| Market share | 80% in China market | ||
| Cooperation case | Hengshan, Gilbarco,Censtar, Furen, Dresser, Jia Li Jia | ||
| Approval | domestic explosion-proof certification | ||
| Shortlisted in the suppliers of sinopec or not | Yes | ||
| Plan | stablize existing main customers, develop international market, try to be the international leading brand in the industry | ||
| Brief introductio | it is used to control the high and low flow of the computerized fuel dispenser to achieve rapid fueling with high efficiency and give a precise measuring of the fueled amount, the suitable media are including petroleum, diesel, kerosene | ||
