Gear flow meter
OGM-R Oval Gear Flow Meter
Description
OGM-R gear flow meter roots from Russia PPO-40 oval gear flow meter, it is widely used in flow measurement in the industrial field such as petroleum ,oil refinery, oil storage and fuel terminal.
1.Technical data:
| Mode |
OCM-R-25 |
OCM-R-40 |
| Diameter (mm) |
25mm/1” |
40mm/1-1/2” |
| Min.Flow rate |
20-120L/Min |
40-400L/Min |
| Accuracy % |
±0.25% |
| Repeatability |
≥0.17% |
| Working Temperature |
-30～+80℃ |
| Pressure Bar |
16 Bar |
2.Packing data:
| Mode |
OGM-R-25 |
OCM-R-40 |
| Packing |
1PC/Case |
| Net Weight |
17kgs |
19.5kgs |
| Cross Weight |
18kgs |
20.5kgs |
| Size cm |
33x30x28 |
36x33x30 |

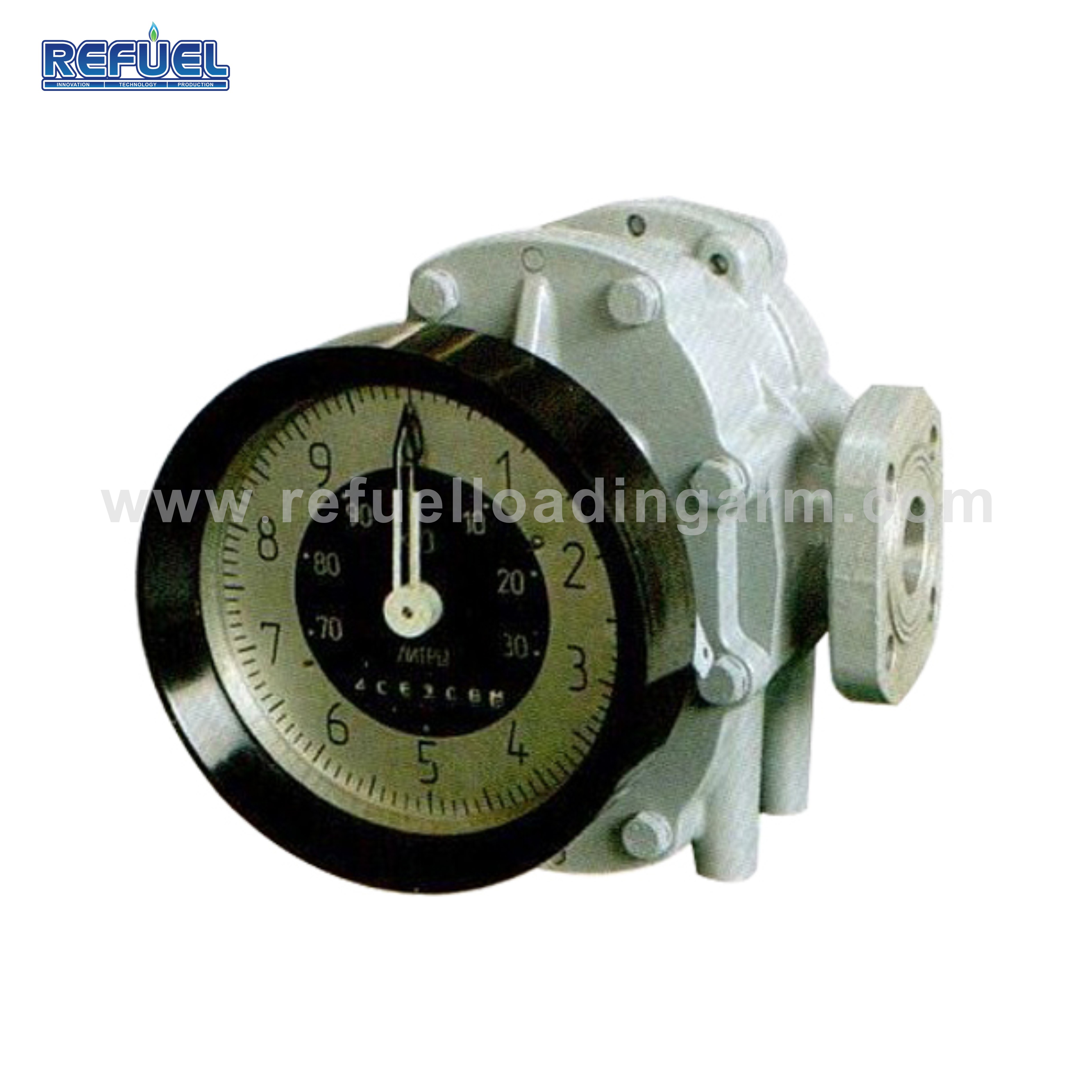

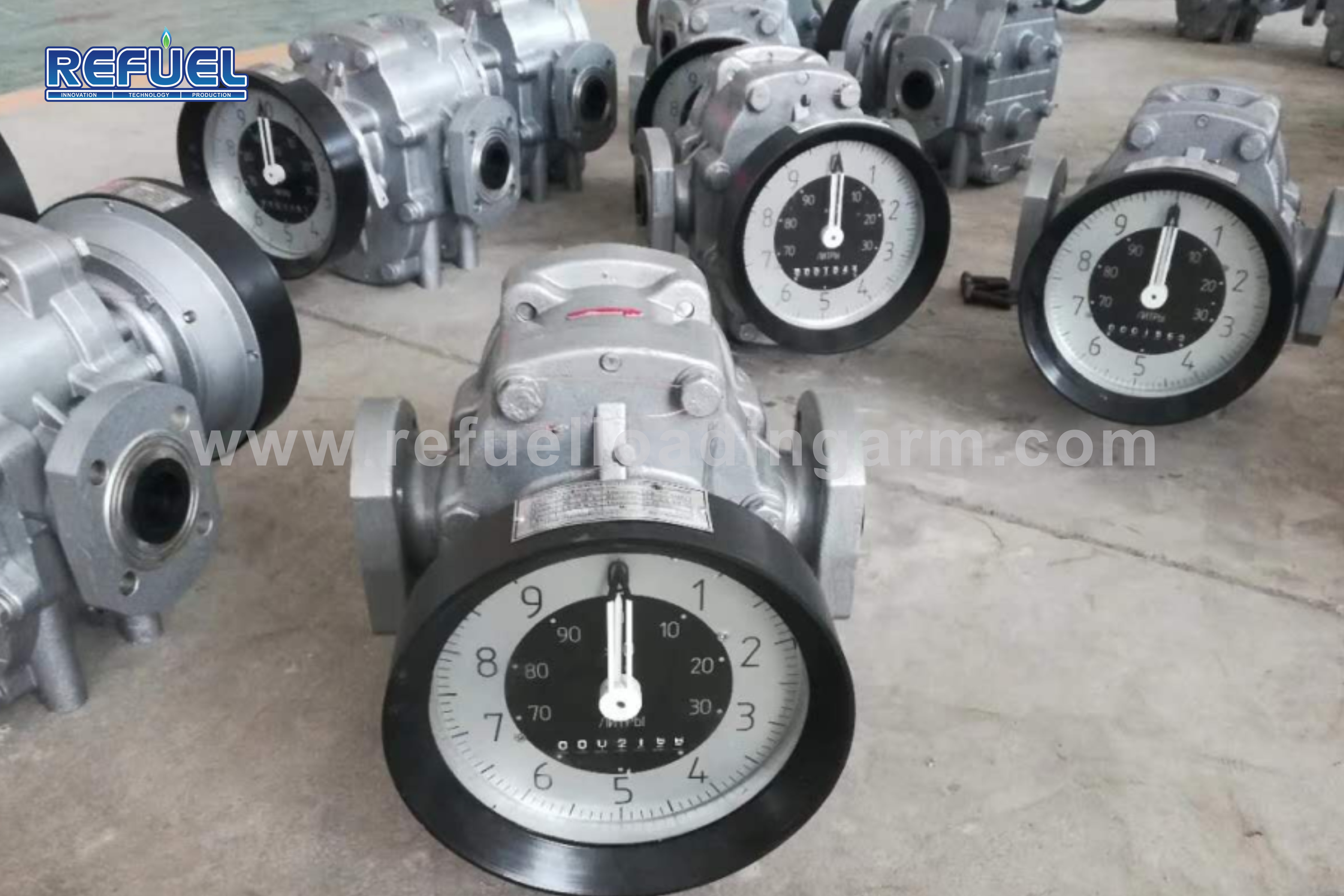

3.Finished Picture:
