1. Description

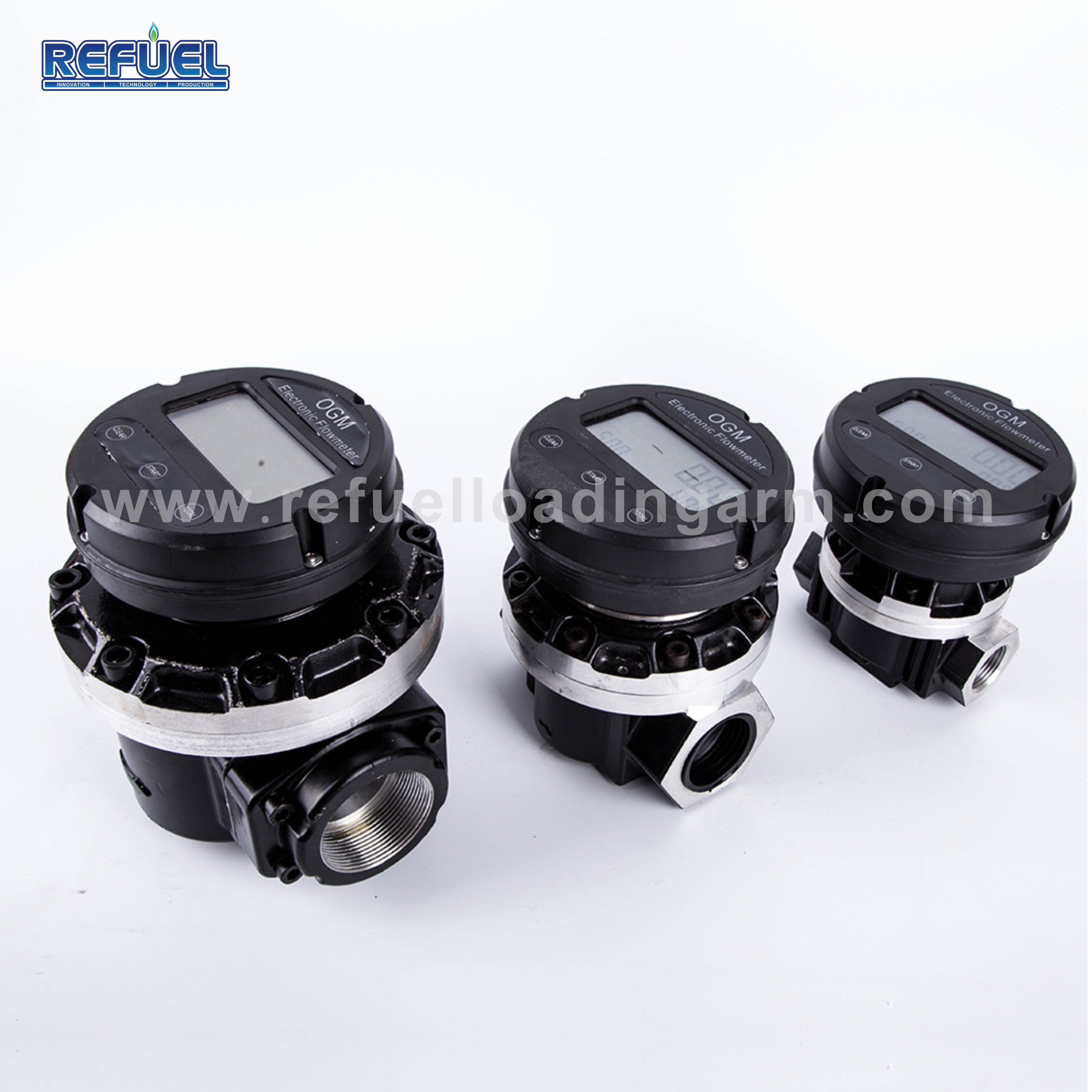

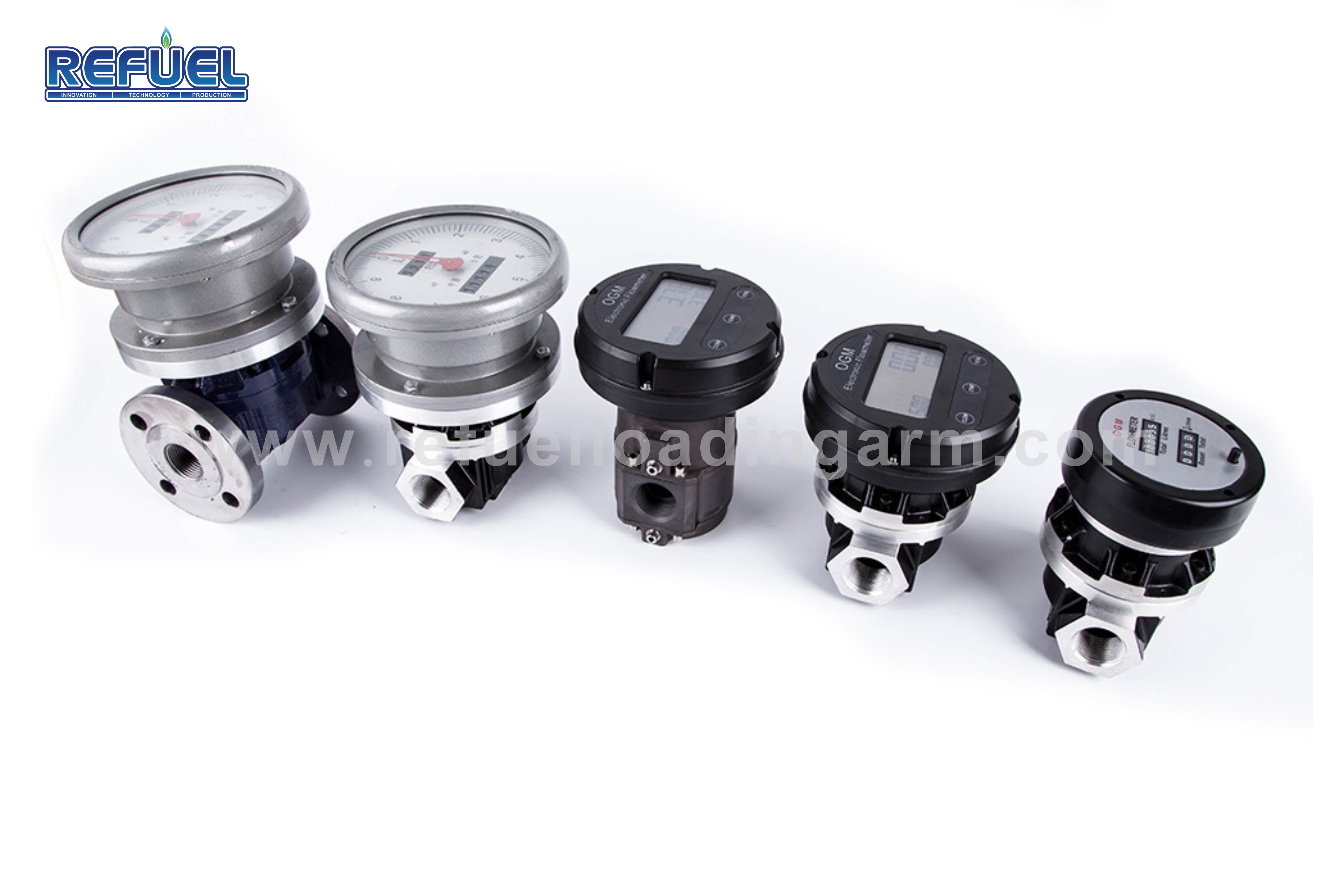

OGM series Aluminum Oval Gear Meter can handle a wide range of viscous fluids with exceptional levels of repeatability and durability.It has mechanical display and electronic display for option. Electronic Digital Fuel Flow Meter Diesel Fuel Oil OGM Flow Meter is widely used in petroleum,chemical,food industry,etc.
2. Technical Specification:
| Item | OGM-25E | OGM-40E | OGM-50E |
| Inlet and Outlet | 25mm | 40mm | 50mm |
| Flow range | 20-120lpm | 25-250lpm | 30-300lpm |
| Accuracy | +0.5% | +0.5% | +0.5% |
| Repeatability | <0.03% | <0.03% | <0.03% |
| Max working pressure | 3.4Mpa | 1.8Mpa | 1.8Mpa |
| Max viscosity | 1000CPS | 1000CPS | 1000CPS |
| Package | 56.5*42*19cm carton / 6pcs / G.W. 14kg / N.W. 12kg | 57*47*19cm carton / 6pcs / G.W. 20kg / N.W. 18kg | 51*26.5*22.5cm carton / 2pcs / G.W. 15kg / N.W. 13kg |
