Description

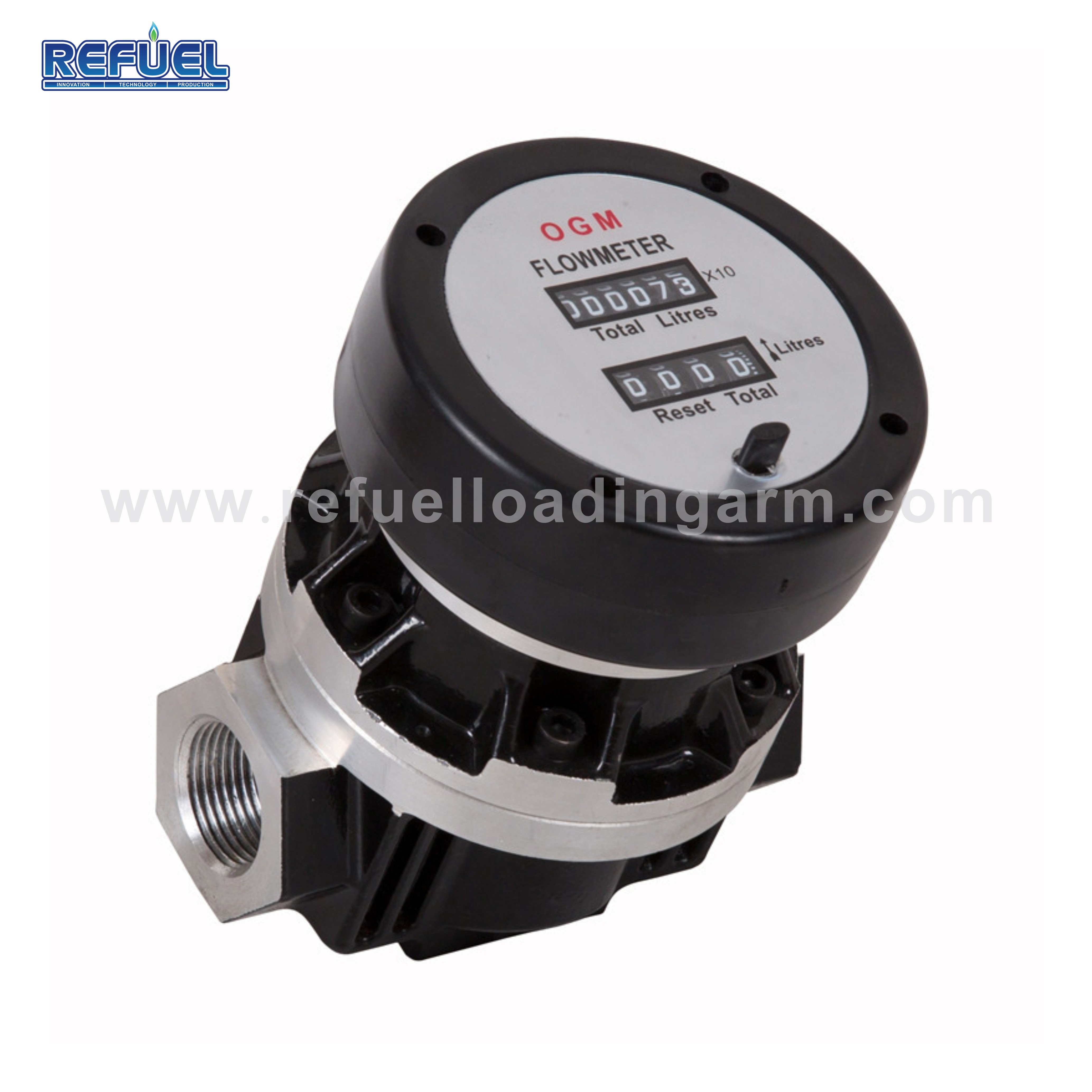

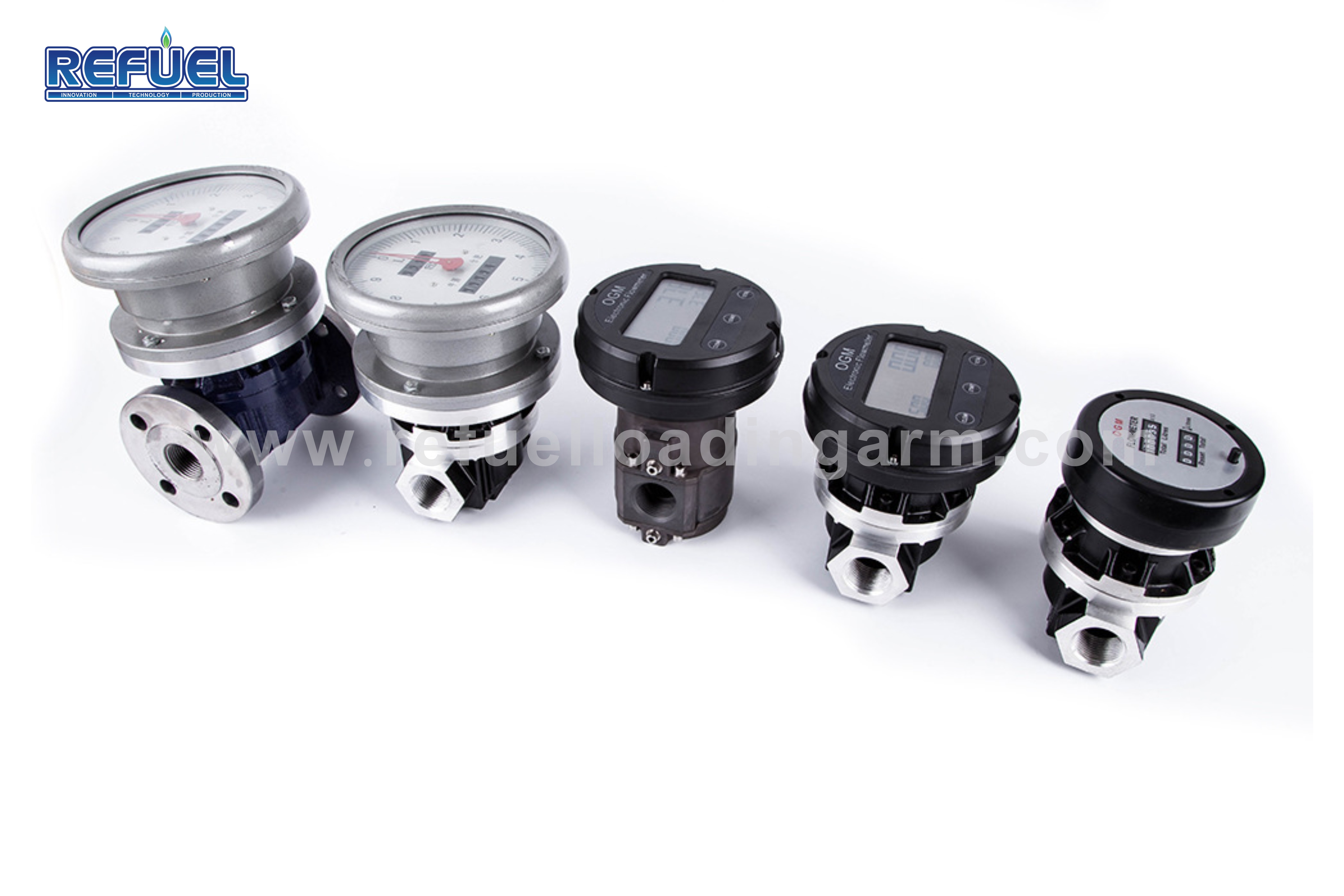

OGM series Aluminum Oval Gear Meter can handle a wide range of viscous fluids with exceptional levels of repeatability and durability.It has mechanical display and electronic display for option. It is widely used in petroleum,chemical,food industry,etc.
1. Technical Specification:
| Item | OGM-25 | OGM-40 | OGM-50 |
| Inlet and Outlet | 25mm | 40mm | 50mm |
| Flow range | 20-120lpm | 25-250lpm | 30-300lpm |
| Accuracy | +0.5% | +0.5% | +0.5% |
| Repeatability | <0.03% | <0.03% | <0.03% |
| Max working pressure | 3.4Mpa | 1.8Mpa | 1.8Mpa |
| Max viscosity | 1000CPS | 1000CPS | 1000CPS |
| Package | 56.5*42*19cm carton / 6pcs / G.W. 14kg / N.W. 12kg | 57*47*19cm carton / 6pcs / G.W. 20kg / N.W. 18kg | 51*26.5*22.5cm carton / 2pcs / G.W. 15kg / N.W. 13kg |
