Gear flow meter

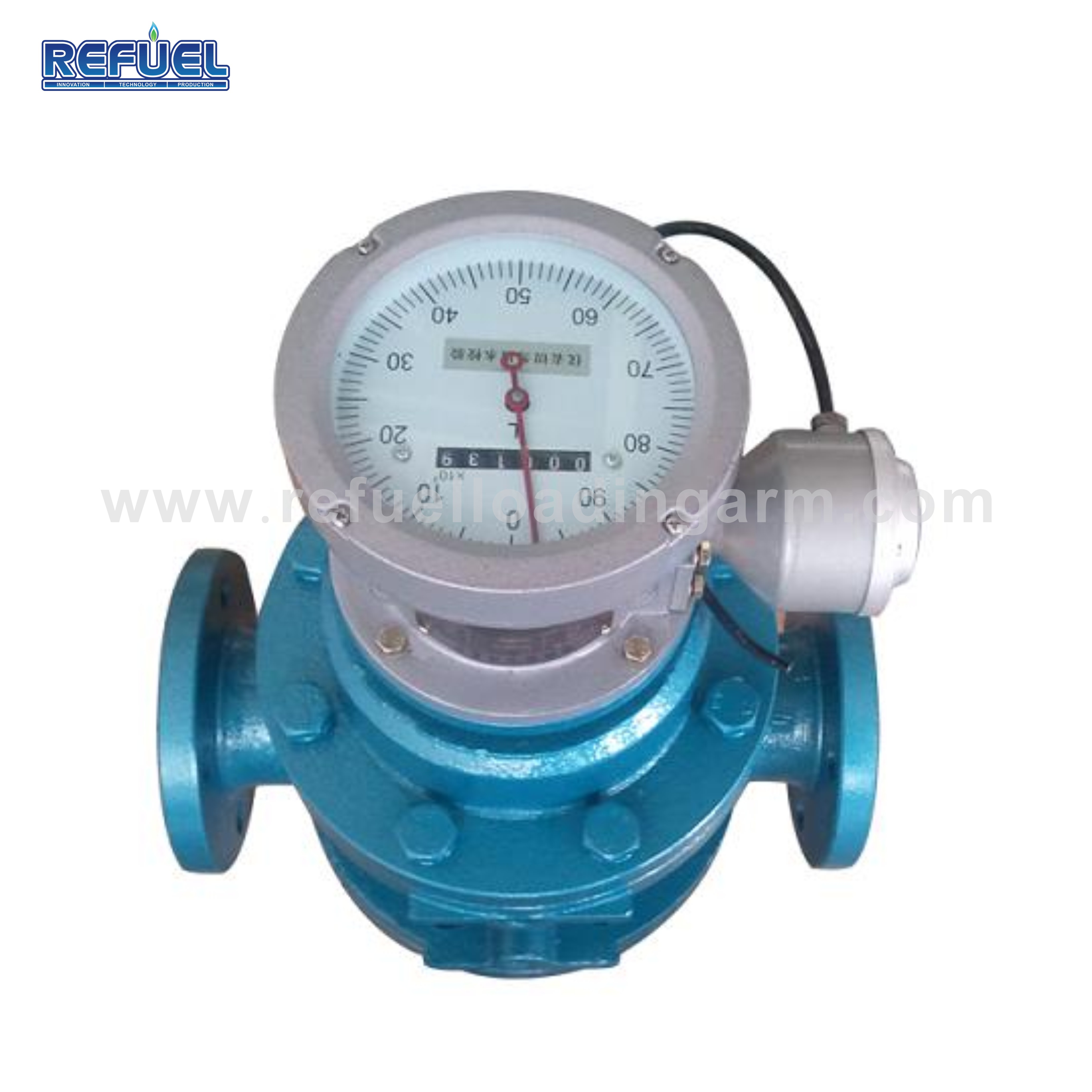

Mechanical Display Fuel Oval Gear Flow Meter
Description
The LLY root flow meter and LC gear flow meter are widely used in flow measurement in the industrial field such as petroleum exploitation, oil refinery, chemical and oil storage.
1.Technical Specification:
| Model |
Dia (mm) |
Flow range |
| LLY |
15 |
0.25--2.5 |
| LLY |
20 |
0.25--2.5 |
| LLY |
25 |
0.6--6 |
| LLY |
40 |
1.6--16 |
| LLY |
50 |
2.5--25 |
| LLY |
80 |
6--60 |
| LLY |
100 |
10--100 |
| LLY |
150 |
25--250 |
| Model |
Dia(mm) |
Flow range |
| LC |
15 |
0.15--1.5 |
| LC |
20 |
0.3--3 |
| LC |
25 |
0.6--6 |
| LC |
40 |
1.5--15 |
| LC |
50 |
2.4--24 |
| LC |
80 |
6--60 |
| LC |
100 |
10--100 |
| LC |
150 |
19--190 |
1)Working Pressure (MPa) ：0.6, 1.0, 1.6, 2.5, 4.0
2)Working Temperature(℃)：-45℃--60℃
3)Medium viscosity (mPa.s) ：0.6--150
4)Accuracy：0.2%, 0.5%
5)Flow range：m3/h, L/min
6)Material of flowmeter： cast iron, cast steel, stainless steel.
7)ype：totalizer ,reset zero, totalizer and senor ,reset zero and sensor
2.Features & Benefits
It possesses many advantages such as large testing range,High precision, steady performance, testing high temperature and viscosity fluid, easy installation ,convenient operation and so on.
| Item |
LC-A Mechanical Display Oval Gear Flow Meter |
| Accuracy |
±0.5%, ±0.2% |
| Medium |
Diesel oil, fuel oil, heavy oil, all kinds of oil and like asphalt high viscosity liquid (within 2~200 mpa.s) |
| Display |
Mechanical, LCD/LED for optional |
| Output |
Pulse output, 4-20mA or without output for optional |
| Communication |
RS485, HART |
| Pressure |
1.0MPa, 1.6MPa, 2.5MPa, 4.0MPa, 6.4MPa |
| Power Supply |
DC12V, DC24V or 3.6V battery |
| Operating Temperature |
-20℃~+100℃ |
| Material |
cast iron, cast steel, stainless steel |
| Install Way |
Thread, flange |
| Explosion-proof |
Ex d II BT4 |
| Grade |
IP65 (higher grade can be customized) |
