Description

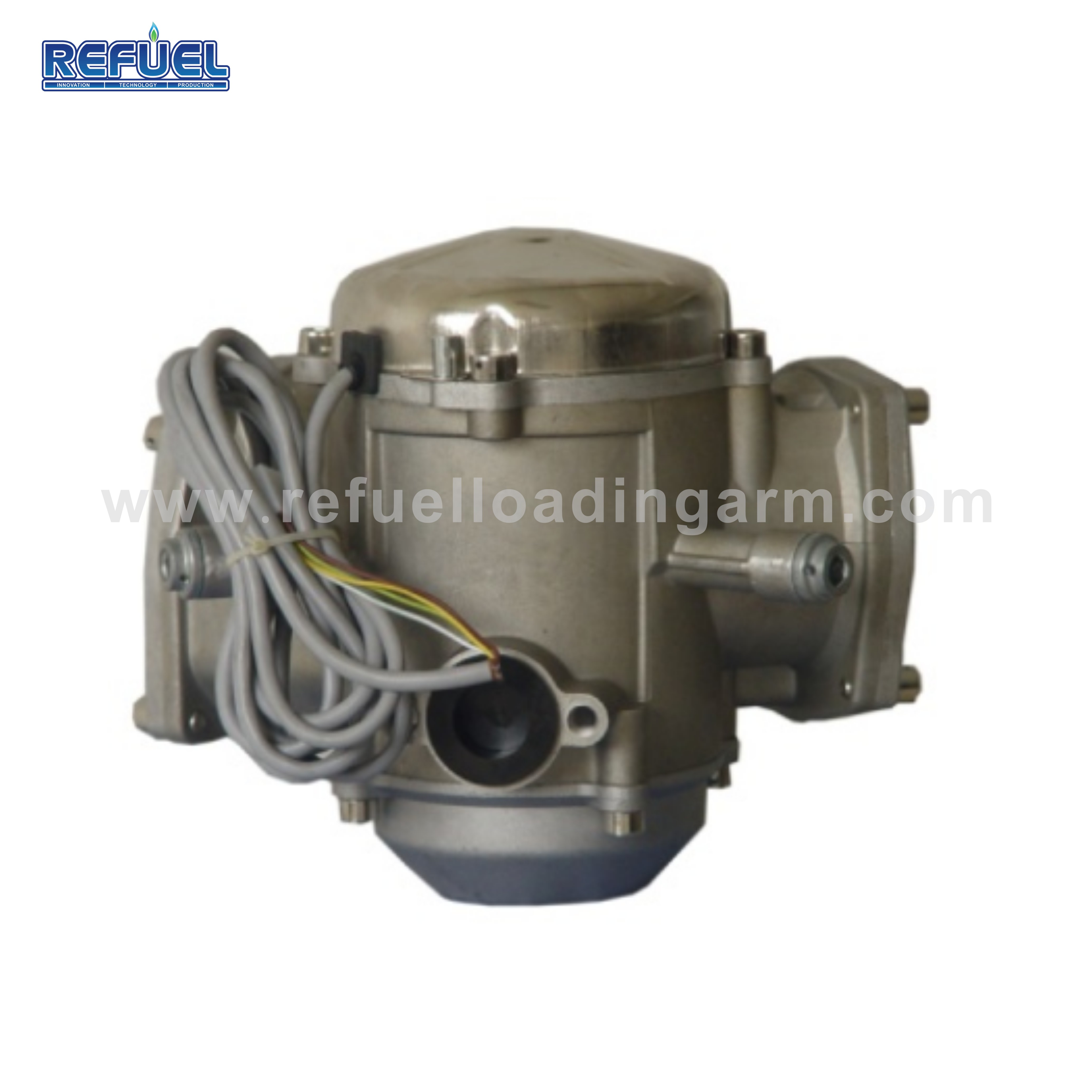

NP Autoset 500 meter with cyclic volume of 500 cm3 for fuel dispenser,which is designed to deliver both gas oil and petrol. It has excellent operating quality and high reliability. NP dispenser flow meter is composed of two doubleacting pistons controlling the crankshaft and positioned 120°apart. The crankshaft directly controls the electromagnetic pulser which is fitted inside the meter itself. 50 pulses per encoder channel per revolution.
1. Feature:
Autoset 500 fuel dispenser meter has the following advantages:
1)elimination of traditional mechanical calibration systems: electronic calibration is directly executed on the computing head by modifying the pulse value, that is the value assigned by the computing head to each centilitre delivered
2)elimination of gearing in meter/pulser connection
3)easy maintenance
4)measurement accuracy
2.Technical Specification
| Flow Range： | 5-60L/Min |
| Discharge Rate /Rev.： | 0.5L |
| Accuracy： | ±0.2% |
| Repeatable Tolerance： | ≤0.05% |
| Adjustable Min. Volume | 0.04% |
| Package Data | |
| Package: | 2pcs/carton |
| Net Weight: | 8kgs |
| Gross Weight: | 8.5kgs |
| Dimension: | 440×290×260mm |
