Description

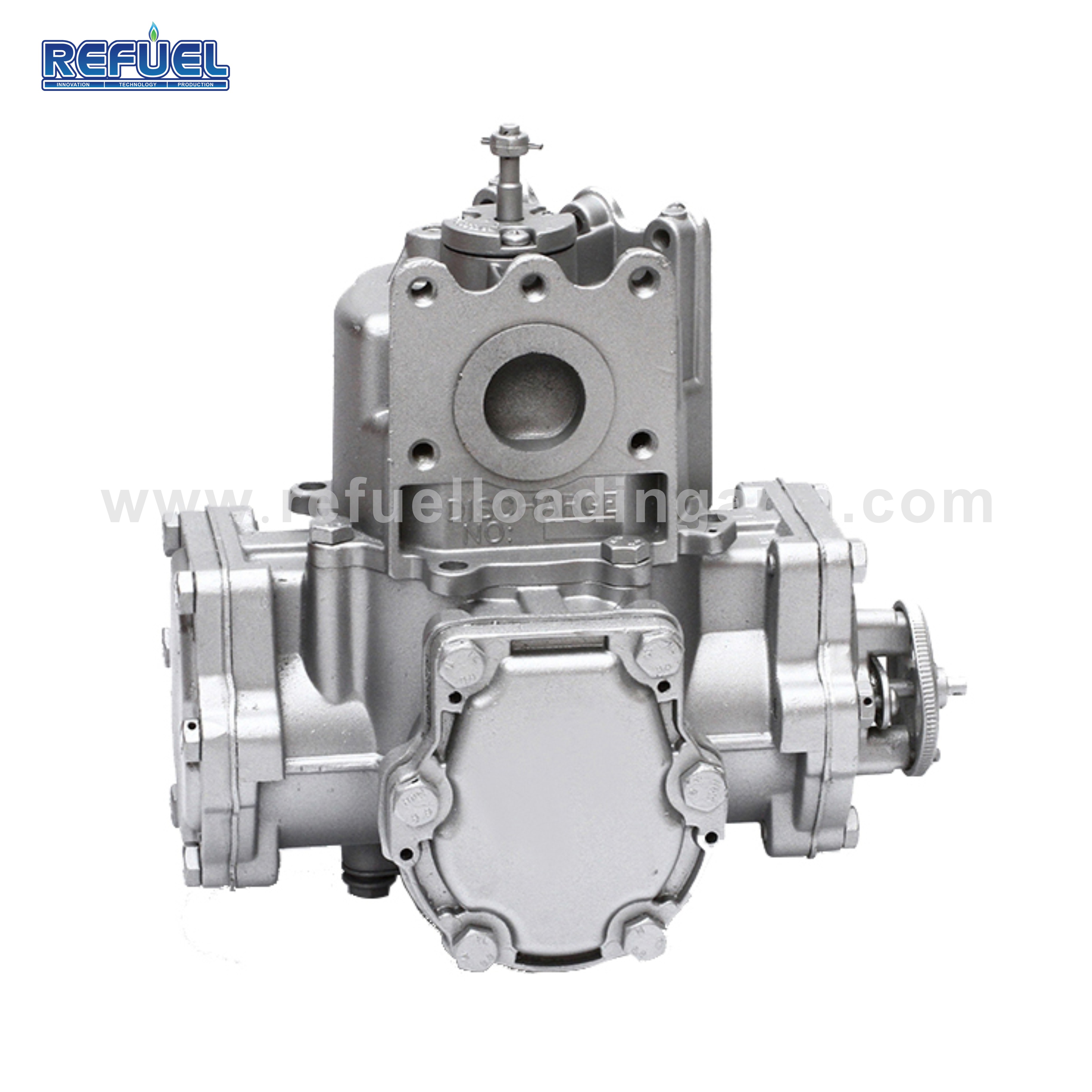

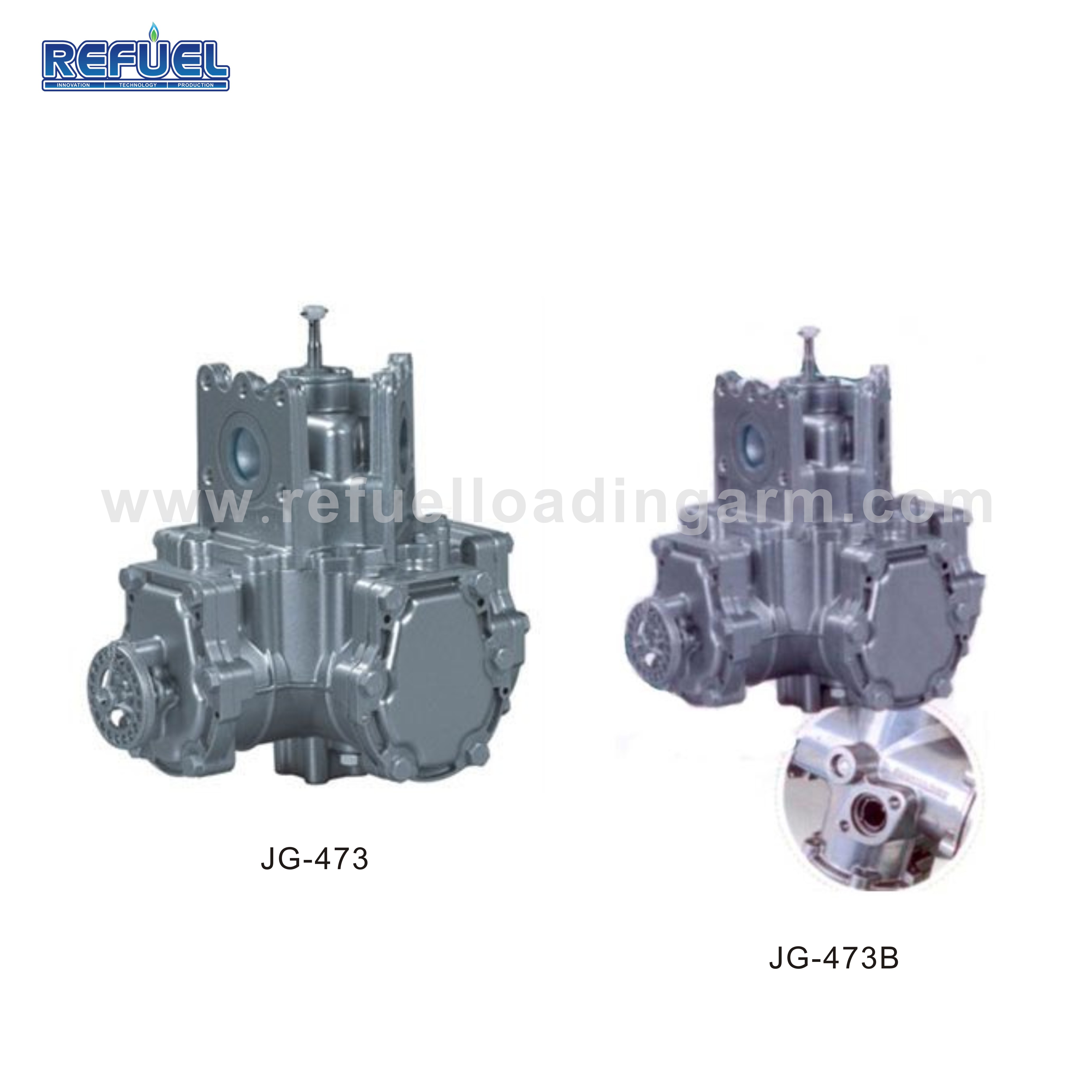

JG-473B Flow meter is improved from JG-473A meter, Gilbarco type 4 Piston Meter can be widely used on different gasoline dispensers. High quality Gilbarco 4-piston displacement meter is suitable for gasoline, diesel oil and Petrol.Top and outlet on bottom with advantage of reliable construction, high accuracy, positive displacement metering long life service, etc.
1.Technical Specification
| Flow Range： | 5L~60L/Min |
| Discharge Rate /Rev.： | 0.473L |
| Accuracy： | ±0.2% |
| Repeatable Tolerance： | ≤0.05% |
| Adjustable Min. Volume： | 0.04% |
| Package Data | |
| Package: | 2pcs/carton |
| Net Weight: | 10kgs |
| Gross Weight: | 10.5kgs |
| Dimension: | 460×280×270mm |
