Description

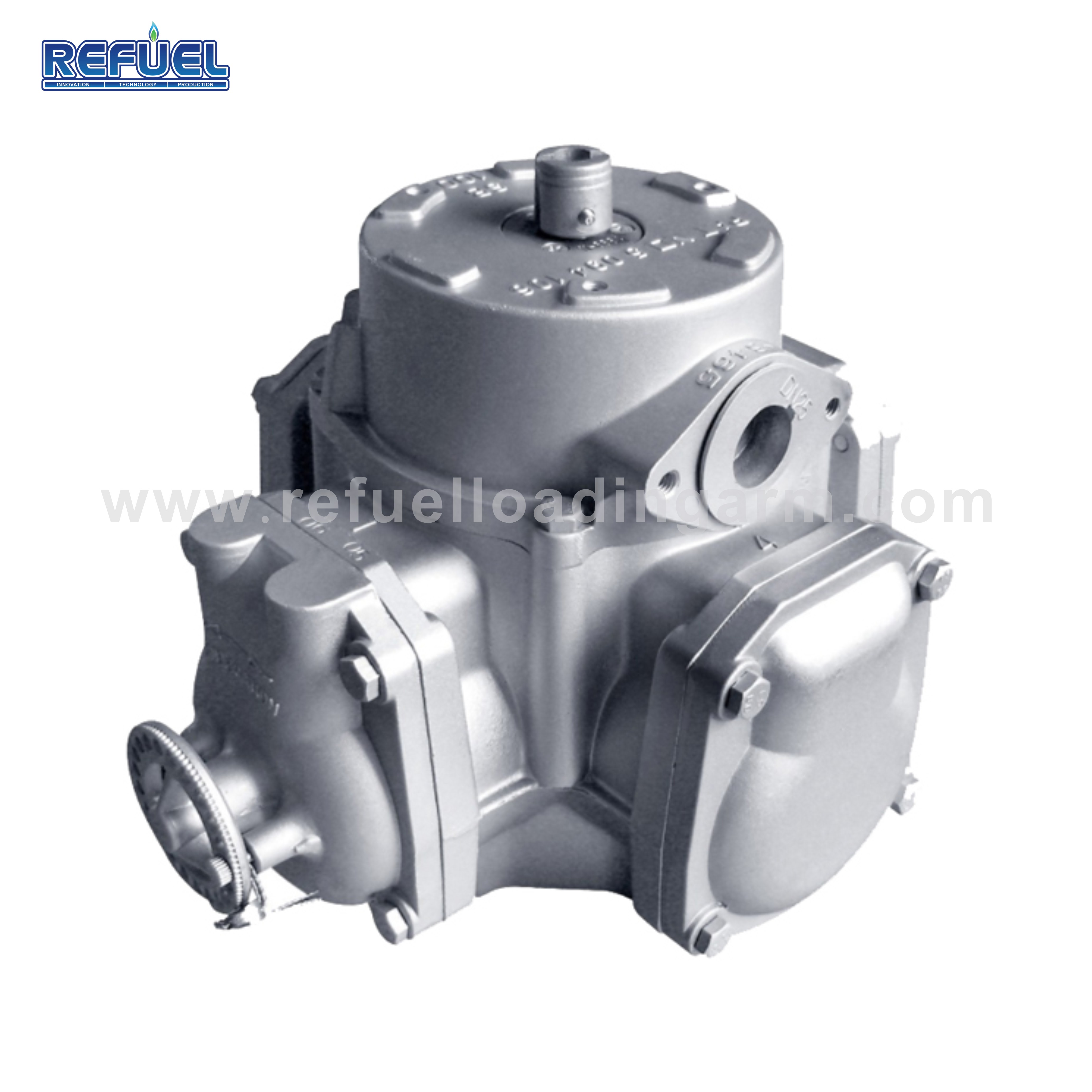

SB-100 Series Meter is Bennett type flow meter, which adopts advanced technology , which is widely used for different fuel dispensers.With advantage of high flow, long working life, high accuracy, firm structure, easy installation, etc., it can be the best choice of fuel dispenser component.

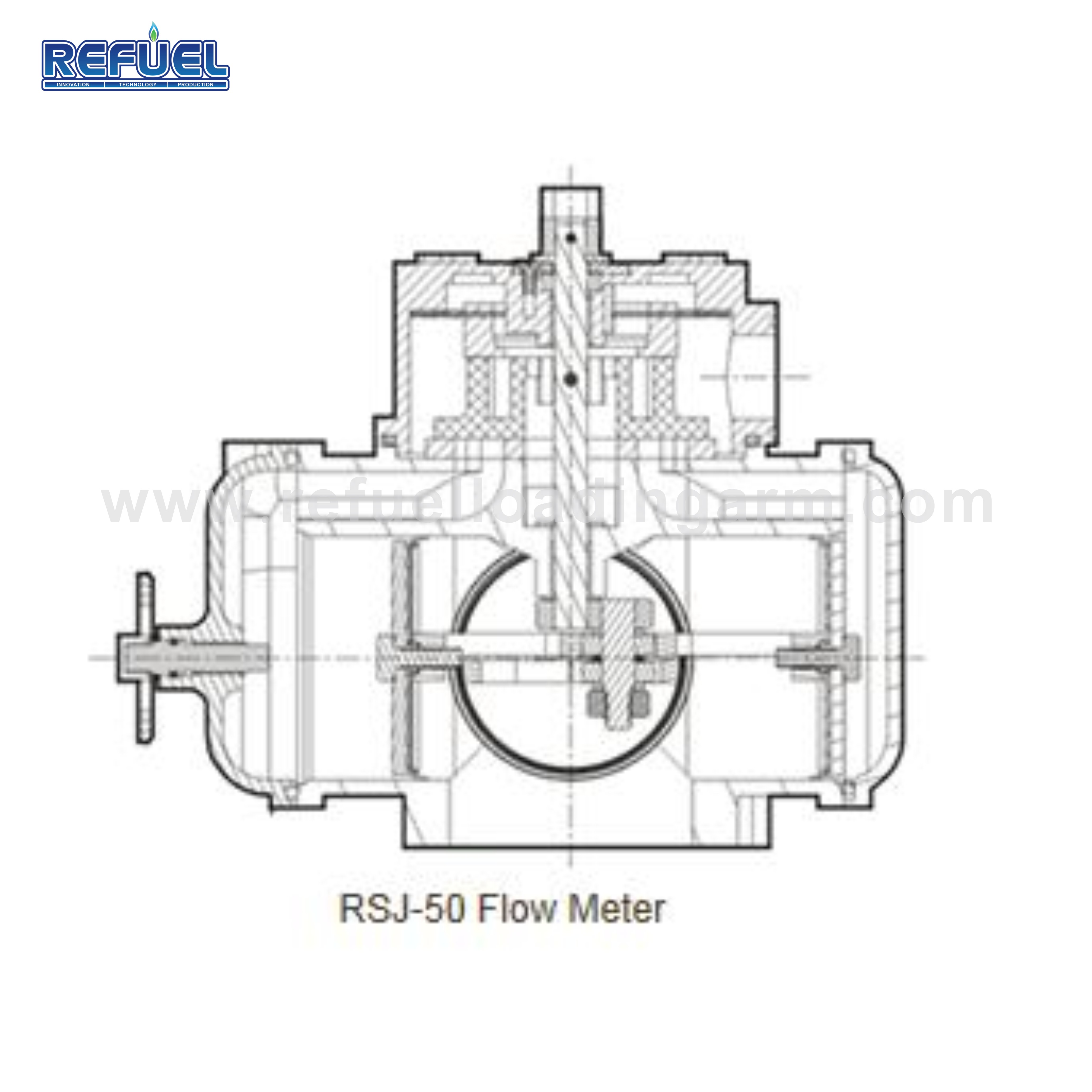

The Bennett type SB-100 meter is a precision fuel dispenser meter. Distributor, valve, and counter valve is precision machining.
To ensure the continued integrity of the precision parts during the life of the meter, proper filtration before the meter is essential. Filters protect the meter, the pumping unit (if present), flow control solenoids, the nozzle, and ultimately the customer’s automobile components. Filters should be replaced or cleaned on a regular basis or anytime the flow rate has dropped by a noticeable amount.
1.Technical Specification
| Flow Range： | 5L~60L/Min |
| Discharge Rate /Rev.： | 0.5L |
| Accuracy： | ±0.2% |
| Repeatable Tolerance： | ≤0.05% |
| Adjustable Min. Volume： | 0.05% |
| Package Data | |
| Package: | 2pcs/carton |
| Net Weight: | 10kgs |
| Gross Weight: | 10.5kgs |
| Dimension: | 460×260×230mm |
