Description

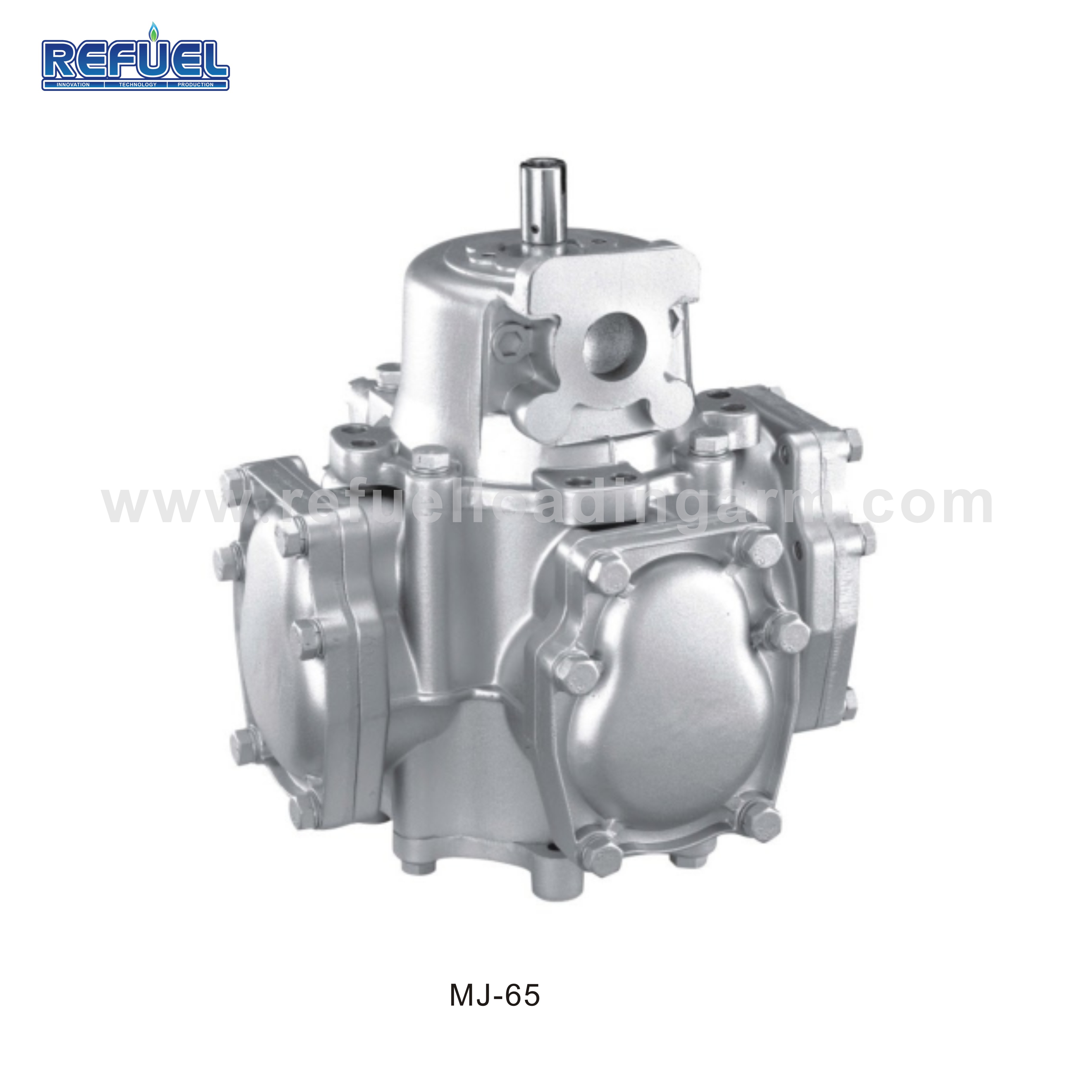

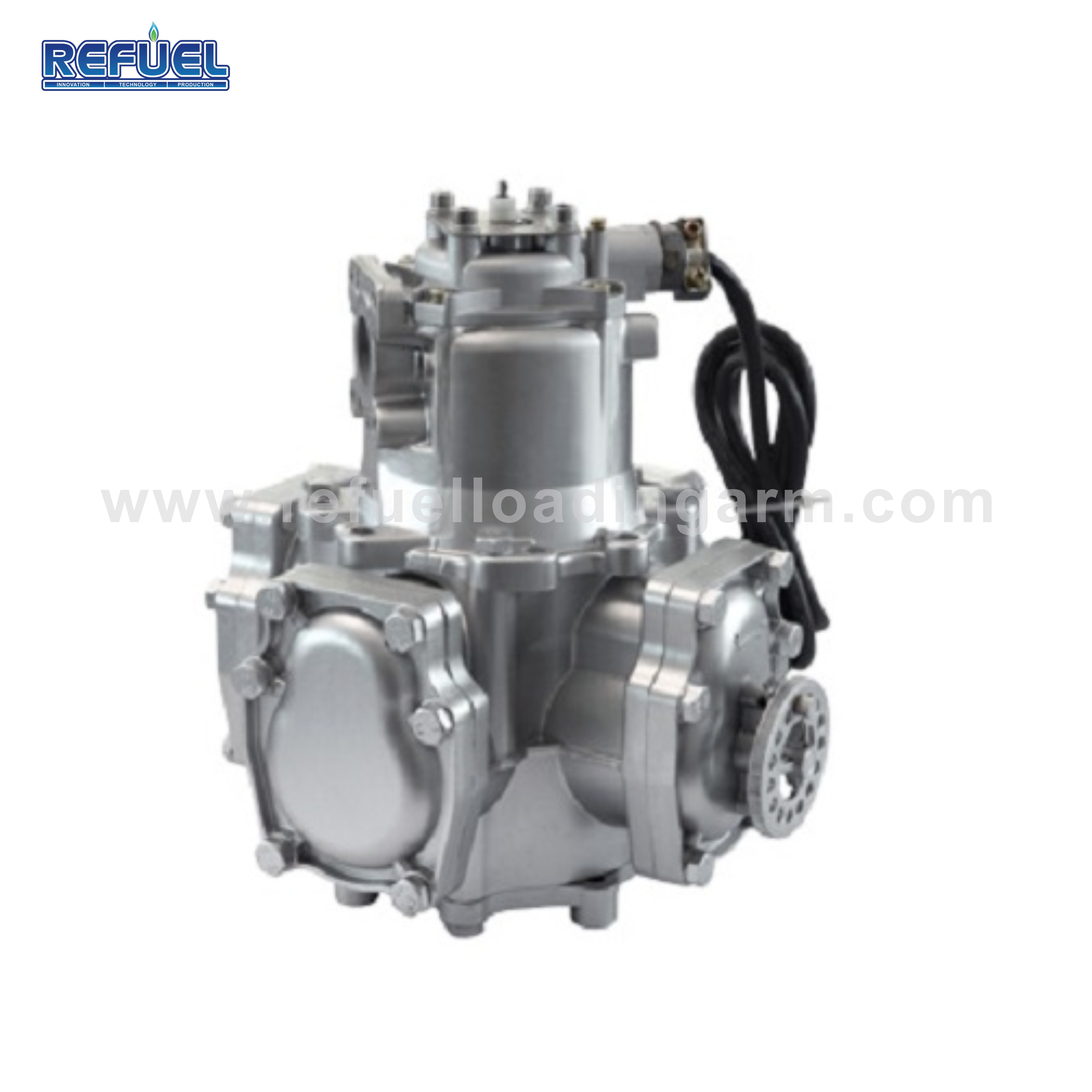

MJ-85S/65 Flow Meter is piston meter for fuel dispenser. Tatsuno type meter is suction pumping unit for fuel dispenser. The precise and reliable piston meter provides safe refueling environment without deterioration in performance for long period of time. its body is made of alloy aluminum, with structure of stainless steel bush and four piston positive displacement. Novel appearance, small size, high reliability, good wear ability precise measure, long life. It has in-built intelligent pulse, 60 pulses or 100 pulses for option.
1.Technical Specification
| Flow Range： | 5L~90L | |
| Discharge Rate /Rev.： | 0.5L | |
| Accuracy： | ±0.2% | |
| Repeatable Tolerance： | ≤0.07% | |
| Adjustable Min. Volume： | 0.07% | |
| Package Data | ||
| Model | MJ-85S | MJ-65 |
| Package: | 2pcs/carton | 2pcs/carton |
| Net Weight: | 12kgs | 11kgs |
| Gross Weight: | 13kgs | 12kgs |
| Dimension: | 500×280×350mm | 500×280×300mm |
