Transfer pump

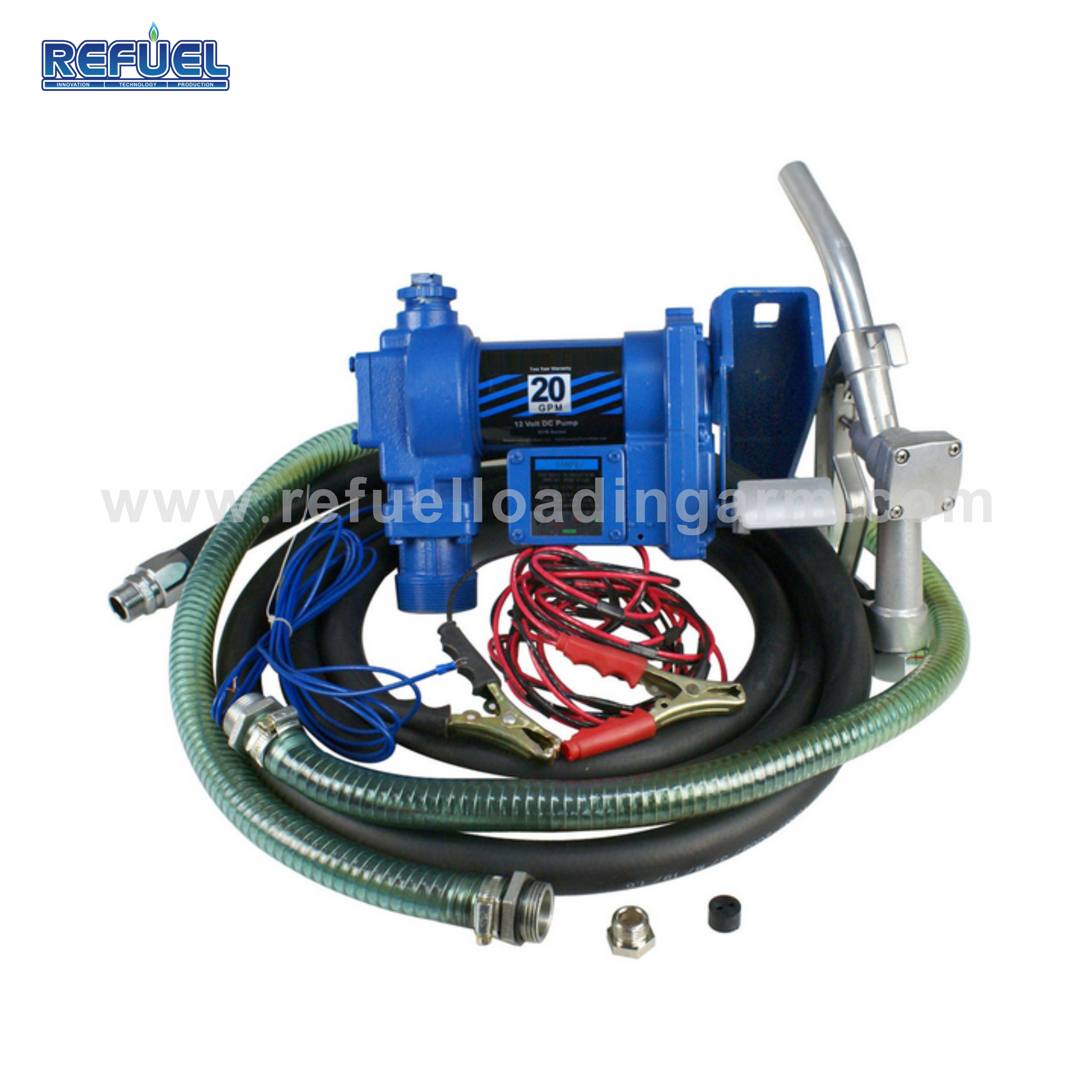

Electric fuel transfer pump unit DYB50/75-DC12B
Description
DYB50/75-DC12B explosion-proof electric transfer pump with flow meter and nozzle is used for diesel, gasoline, kerosene, mineral spirits, solvent and heptane etc.
1. Technical Data：
| Model |
DYB50-DC12B |
DYB75-DC12B |
| Body Material |
Cast Iron |
Cast Iron |
| Maximum flow rate |
15GPM(57LPM) |
20GPM(76LPM) |
| Explosion-proof motor |
1/4HP |
1/4HP |
| Max.Working Temperature |
-26-660C |
-26-660C |
| Inlet |
1"NPT |
1"NPT |
| Outlet |
3/4"NPT |
1"NPT |
| Threaded tank adapter |
2"NPT |
2"NPT |
| Nozzle hanger |
Yes |
Yes |
2.Characteristics
1).Explosion-proof permanent magnet motor with thermal overload protection
2).Built-in strainer, bypass valve
3).Ball bearing construction, no lubrication required
4).3/4” and 1" Hose; 1" manual nozzle
5).Nozzle boot that protects against dirt and contamination
6).2" threaded base for tank openings
7).Corrosion-Proof section pipe
8).Rain proof, water proof
9).30-minute duty cycle/not for continuous operation Options :
10).FM-40G meter in gallons or FM-120 meter in liters
11).DYB50/75-DC12B Electric Transfer Pump, Explosion Proof can match Automatic nozzle
12)2" Threaded Base Electric Transfer Pump with Explosion Proof Motor
