Tank prover

Products

Description

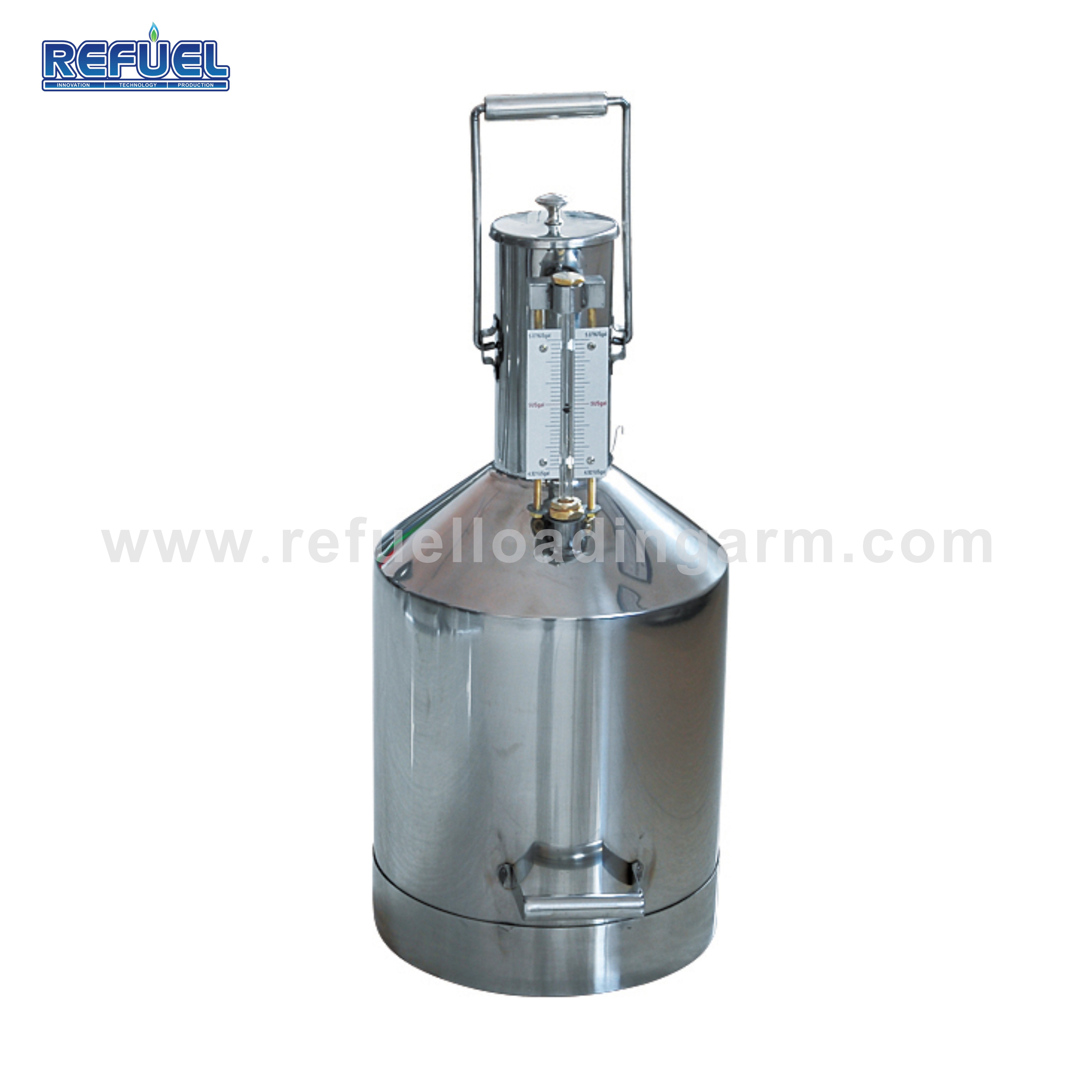

Tank Prover (Measuring can）is calibrated fuel dispenser.Tank Prover is bottom-drain volumetric measures with or without a graduated bottom-neck Prover may be free-standing or enduringly mounted on a truck, platform or trailer.The standard measures in stainless steel are 304 and 316. The available regular volumes are 50L, 100L, 200L, 500L, 1000L.You can also request customized equipment.The Tank Prover System consists of an accurate Flow Meter, precise graduated neck Tank, pumping system and counter and measuring system. Liter and Gallon are available.

1.Specifications

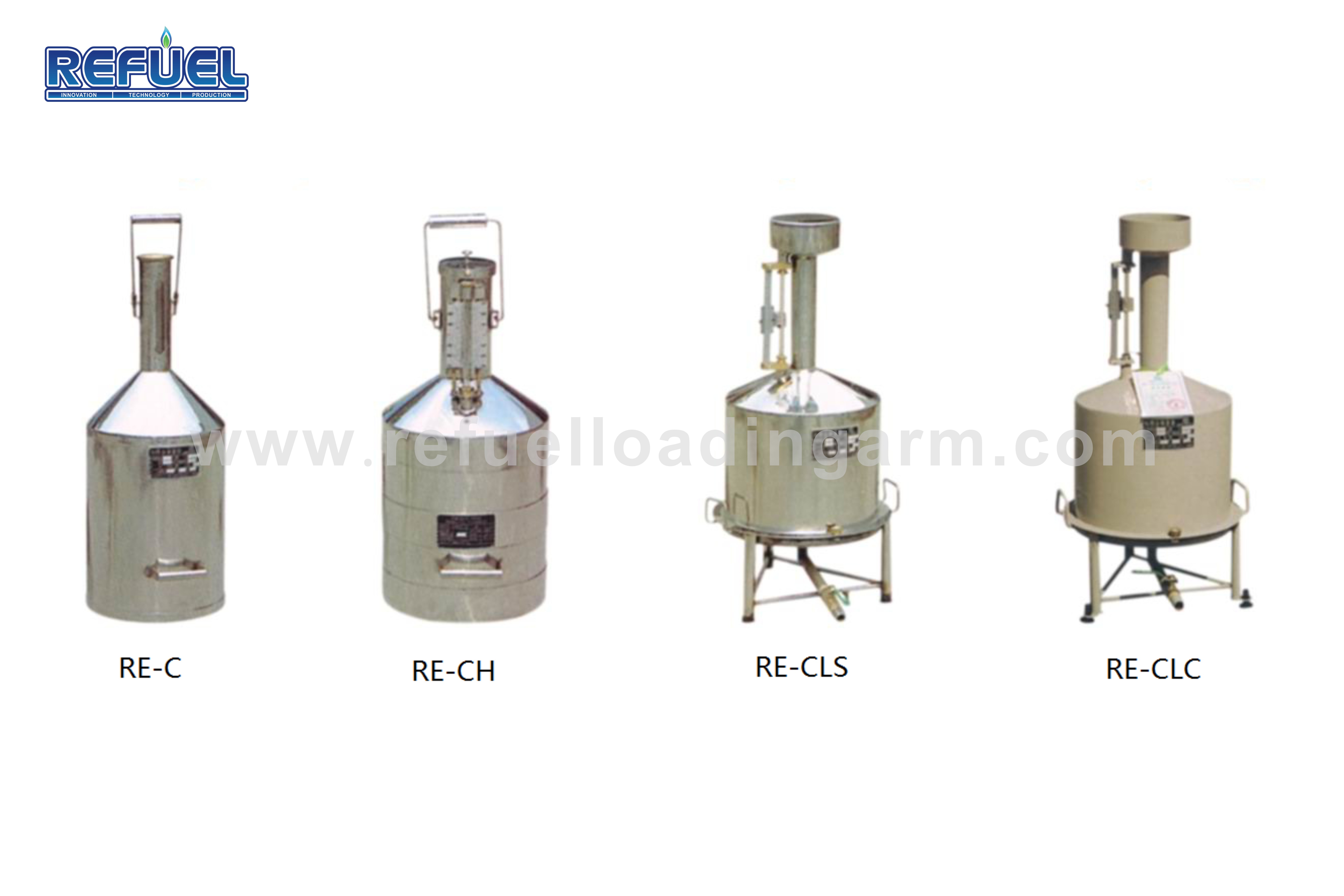

Type	Model	Specification		Accuracy		Material
Type	Model	ⅡGrade	Ⅲ Grade	ⅡGrade	ⅢGrade	Material
Straight Type	RE-C	10,20L	10,20L	2.5X10^-⁴	0.5X10^-3	Stainless Steel 304 Carbon Steel
Straight Type	RE-CH	10,20L	10,20L	2.5X10^-4	0.5X10^-3
Tri-foot and Down Outlet Type	RE-CLS	5,10,20,50, 100,200,500, 1000L	5,10,20,50, 100,200,500, 1000L	2.5X10^-4	0.5X10^-3
Tri-foot and Down Outlet Type	RE-CLC	5,10,20,50, 100,200,500, 1000L	5,10,20,50, 100,200,500, 1000L	2.5X10^-4	0.5X10^-3

3.Product style

1).Calibrated Measures & Volumetric Provers
2).Manufactured of Series 304 Stainless Steel, which resists ordinary rusting, can be easily cleaned, resists organic chemicals, no slag and requires no internal coating. Series 316 stainless steel is available upon request
3).Calibration By Standards Traceable to National Institute of Standards and Technology
4).Graduated Neck with scale that is sealed
5)A butterfly valve is standard with the drain at the center point. This is the most versatile unit for use in the field whether emptying into tank, using a pump or gravity discharge. A ball valve is optional. It is used mostly in laboratory applications or where special application exists. The drain would then proceed at a 7 degree decline with the ball valve near the perimeter of the prover.
6)Standard capacities are available from 5 Gallon/20 Liter to 1500 Gallon / 5000 Liter. Call for special volumes.

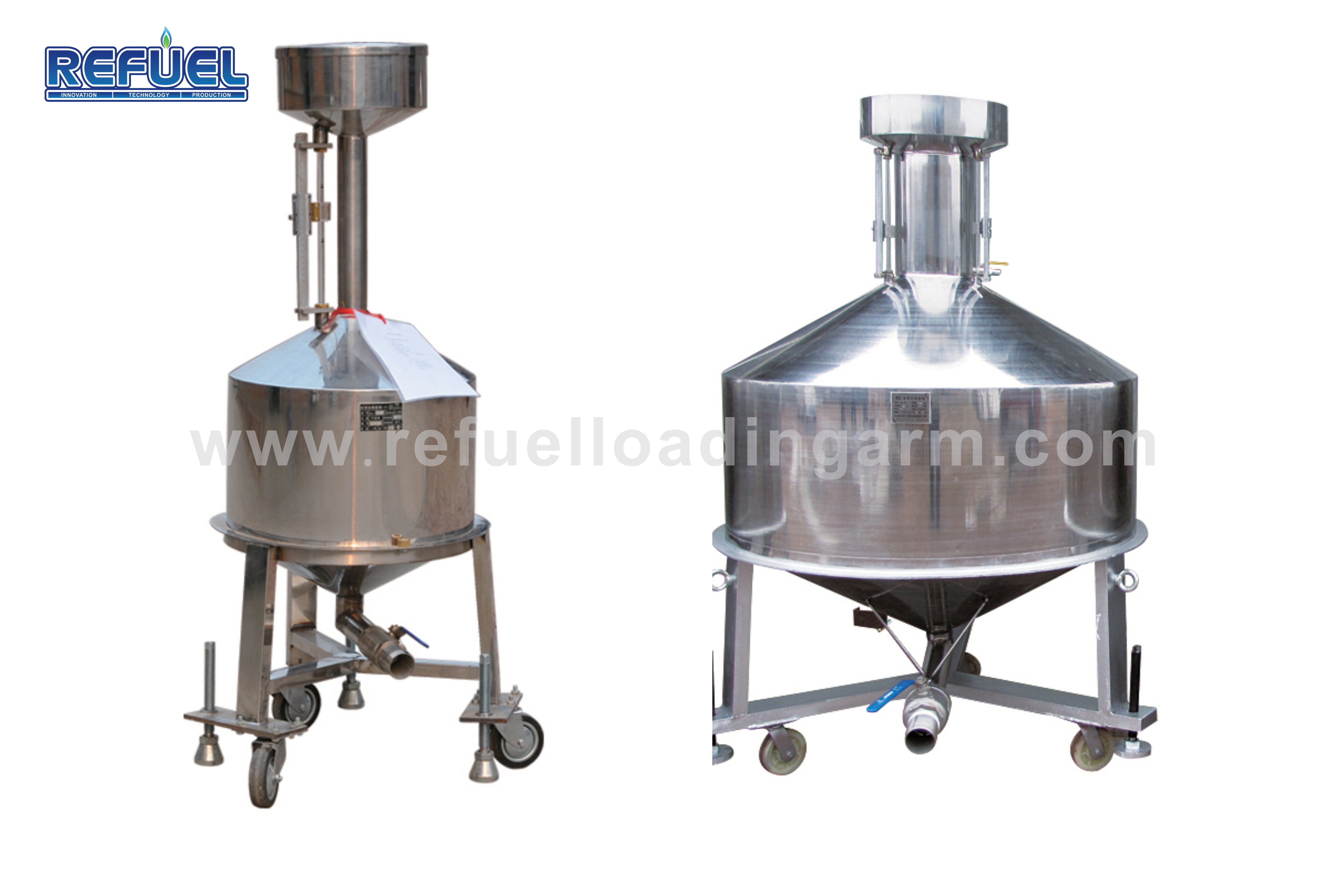

7)Three Bolt down - Adjustable Crank Legs to level prover
