3/4'' and 1'' fuel dispenser hose

Products

Rubber hose

Description：

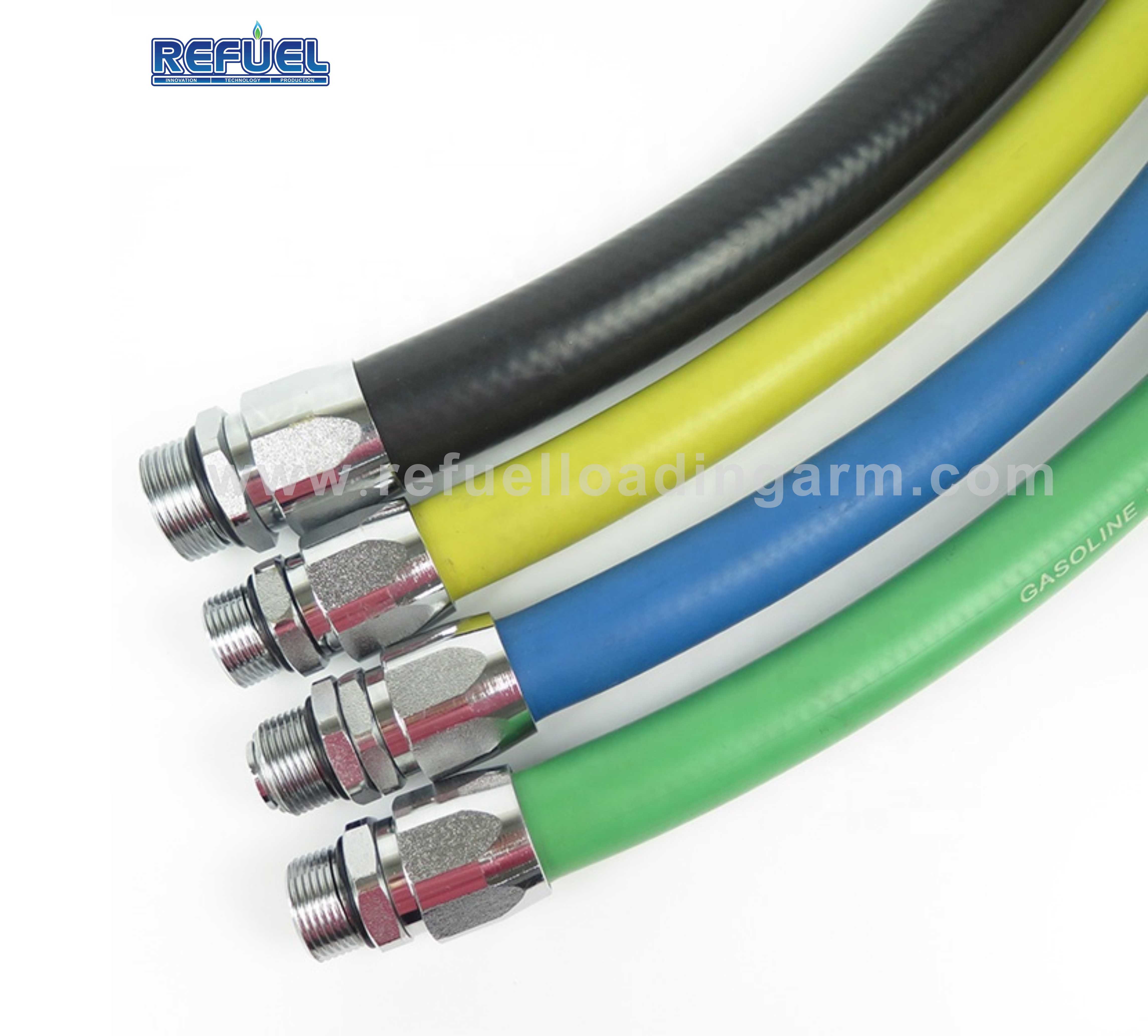

3/4” and 1” Flexible Anti-Static Fuel Dispenser Pump Rubber Hose.
The hose can eliminate the static accumulation while oil-delivering
and meet the requirements of fire safety.
  1）Application: Suitable for gasoline and diesel fuel, including exygenated fuels(up to a maximun of 15% oxygenated compounds) gasoline with small amounts of additives etc.
  2)Temperature range: -25℃～70℃/-40℃～70℃
  3)Inner tube: NBR,Black, Smooth.
4)Reinforcement: Fine wire reinforced, electrically conductive.
  5)Cover: Synthetic rubber.

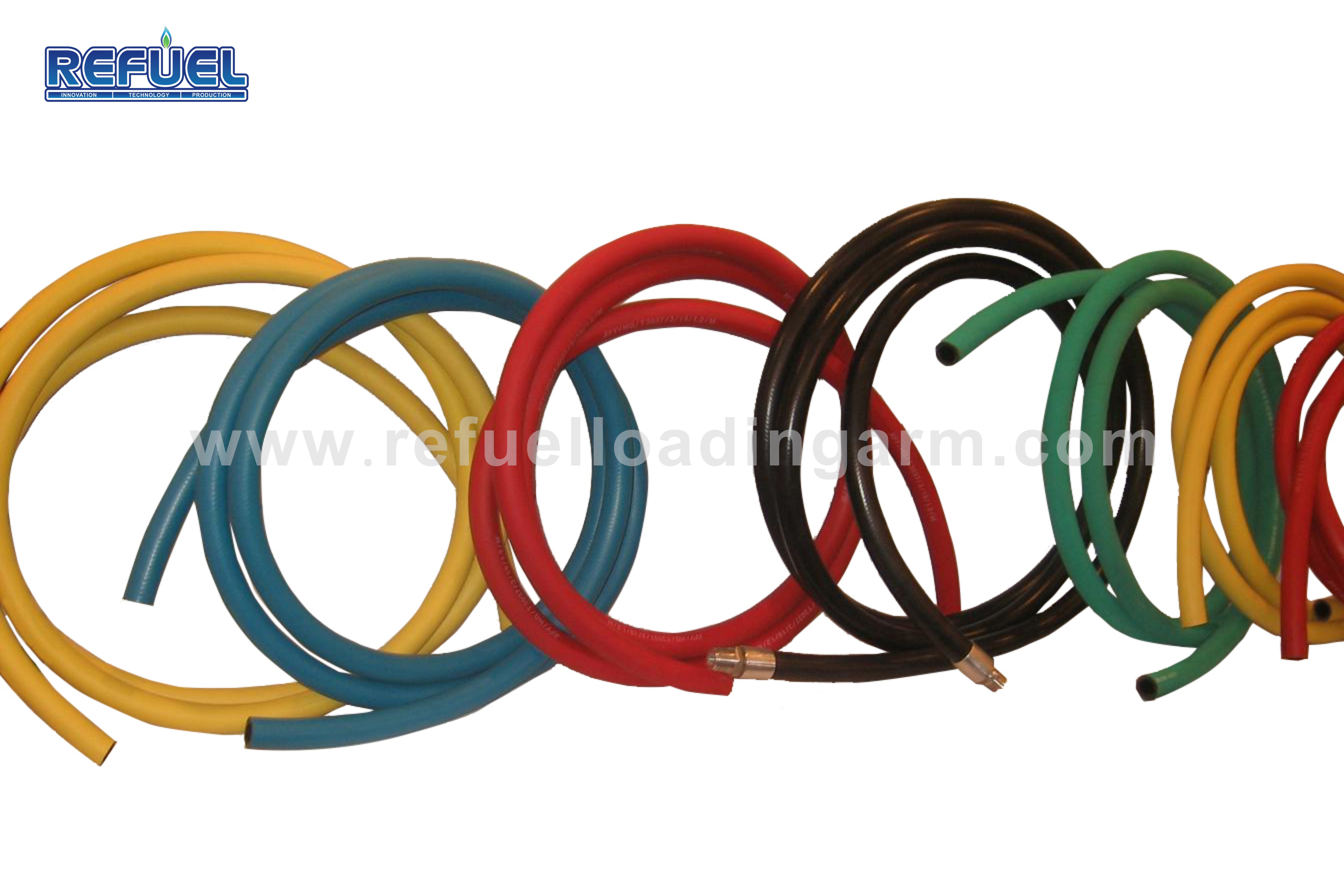

  6)Color: Black,red,yellow,blue,green.

1.Technical data:

Inner Diameter(mm)	Outer Diameter(mm)	Working Pressure(Mpa)	Bursting Pressure (Mpa)	Per Roll Length (m)
19	30	0.8	4.8	20/60
25	37	0.8	4.8	20/60

2.Production standard:
1)Reference Standard: HG/T 3037-2008
2)Reference Standard: EN1360:2005
3)Reference Standard: UL330

No.1 Flexible Anti-Static Fuel Dispenser Pump Rubber Hose

Construction -
Tube: Synthetic rubber resistant to gasoline, diesel, fuel oil.
Reinforcement: Single High-strength wire braided.
Cover: Synthetic rubber-Fire Resistant, wear resistant, ozone resistant, weather resistant.
Temperature: -40℃ to +70℃
Color: Black, Blue, Red and Green etc
Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.
Standard length: 50m/roll or 4m/pce or 5m/pce or other customized length.

Item code	Inner Diameter		Tolerance	Outer Diameter	Tolerance	Working Pressure		Burst Pressure	Measurement
/	inch	mm	mm	mm	mm	bar	psi	bar	psi	cbm/roll
HPR-1	5/8’’	15.9	(+0.6,-0.2)	25.4	±0.4	20	300	60	900	0.07
HPR-2	3/4’’	19	(+0.6,-0.2)	28	±0.4	20	300	60	900	0.08
HPR-3	1’’	25	(+0.8,-0.2)	35.5	±0.4	20	300	60	900	0.124

NO.2 Smooth Finish 3/4" and 1" Flexible Steel Wire Braided Diesel Hoses
Construction:
Tube: Synthetic rubber resistant to gasoline, diesel, fuel oil.
Reinforcement: Single High-strength wire braided.
Cover: Synthetic rubber-Fire Resistant, wear resistant, ozone resistant, weather resistant.
Temperature: -40℃ to +70℃
Color: Black, Blue, Red and Green etc
Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.

Item code	Inner Diameter		Outer Diameter	Max Working Pressure		Min Burst Pressure		Length	Measurement	Weight
Item code	inch	mm	mm	bar	psi	bar	psi	m	cbm/roll	kg/m
1	5/8’’	16	24.0	30	450	120	1740	50	0.07	0.50
2	3/4’’	19	28.0	30	450	120	1740	50	0.08	0.550
3	1’’	25	35.5	30	450	120	1740	50	0.124	0.820

Standard length: 50m (Random Length)

NO.3 EN1360 Flexible Steel Wire Braided Hard Wall Fuel Hose for Dispensers
Construction:
Tube: Synthetic rubber resistant to gasoline, diesel, fuel oil.
Reinforcement: Single High-strength wire braided.
Cover: Synthetic rubber-Fire Resistant, wear resistant, ozone resistant, weather resistant.
Temperature: -40℃ to +70℃
Color: Black, Blue, Red and Green etc
Application: For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated compounds), lubricating oil, and other mineral oil etc.
Standard length: 50m (Random Length)
Pay Attention to: Don’t use under Higher Pressure and High Temperature environment.

Item code	Inner Diameter		Outer Diameter	Max Working Pressure		Min Burst Pressure		Length	Measurement	Weight
Item code	inch	mm	mm	bar	psi	bar	psi	m	cbm/roll	kg/m
1	5/8’’	16	24.0	30	450	120	1740	50	0.07	0.50
2	3/4’’	19	28.0	30	450	120	1740	50	0.08	0.550
3	1’’	25	35.5	30	450	120	1740	50	0.124	0.820

Specification:

- Superior, Long-Lasting Service with Multi-Fuel Capability.
- Innovative new compound — making it incredibly resistant to ozone cracking and wear.
- Nitrile synthetic rubber tube.
- Hardwall wire braid reinforcement.
- For use with gasoline, diesel, ethanol blends and biodiesel blends (up to E15)
