Description

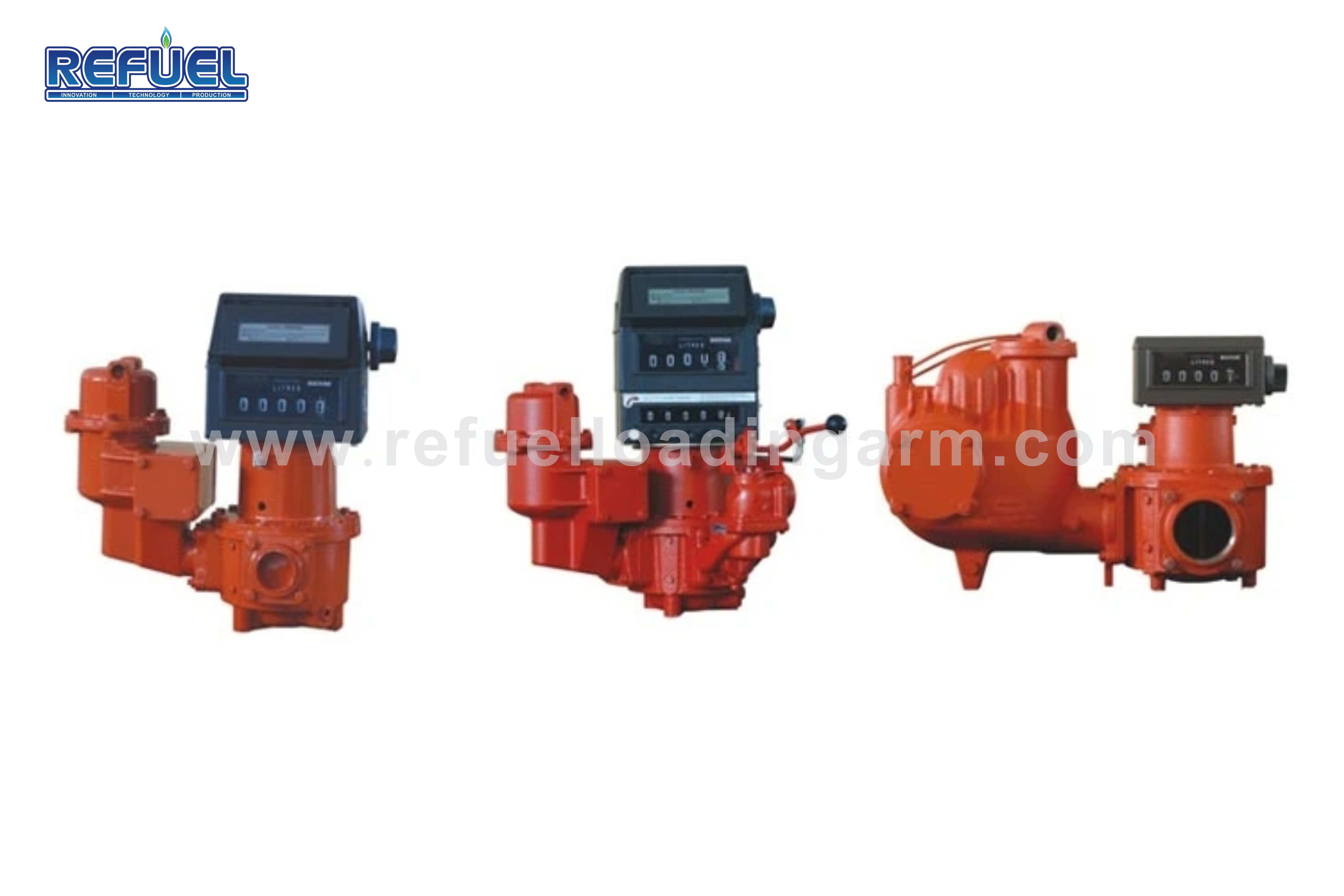

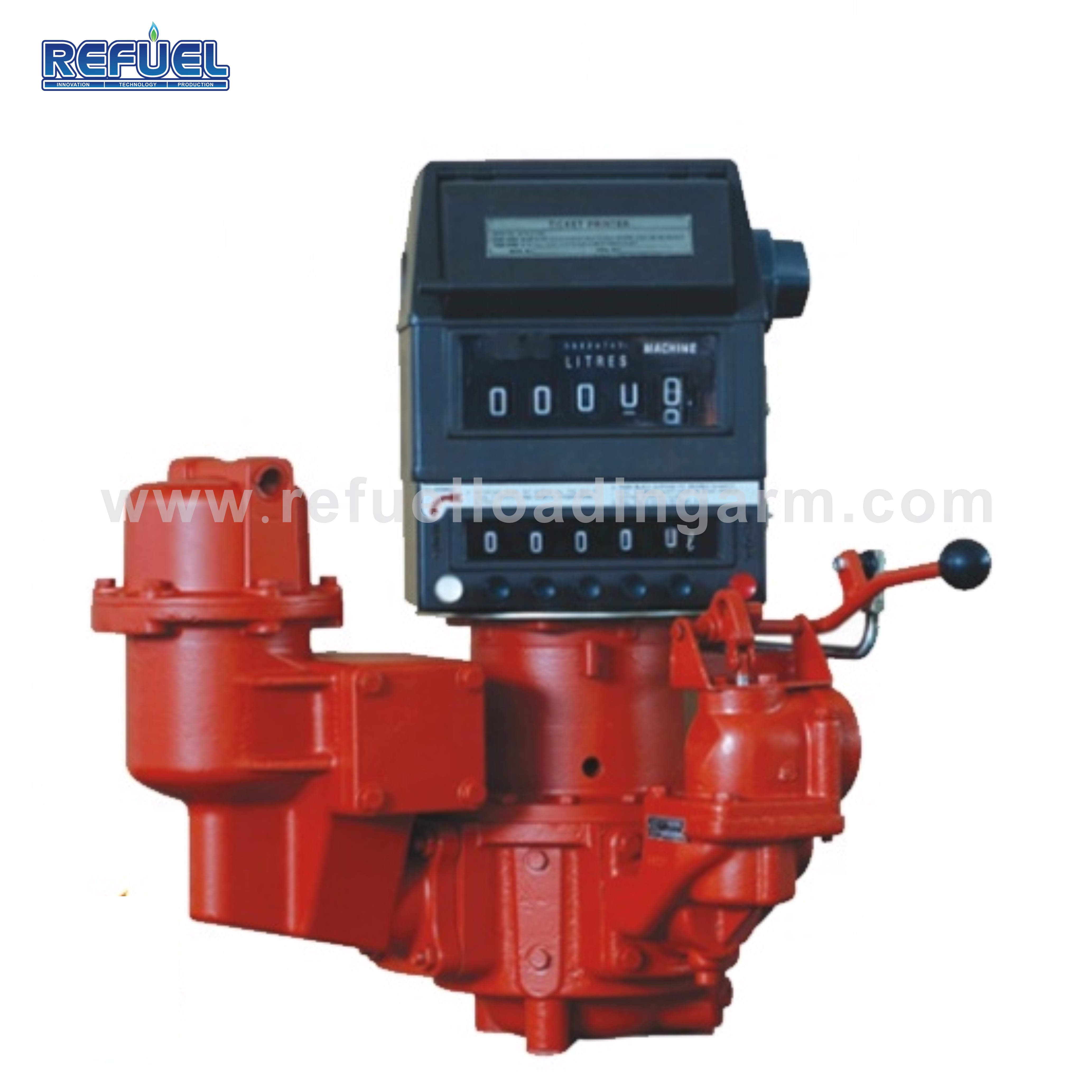

FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters. Preset Meter with mechnical preset register,printer,air eliminator and strainer Meter with mechnical register,air eliminator and strainer. It is widely used in dispenser, inventory control, and custody transfer of oils, solvents, chemicals, paints, fats, and fertilizers.
Meter Rotary Vane meter principle, combined with the meter’s uniquely-designed (offset) inlet and outlet nozzles, minimizes pressure drop across the measuring chamber, which reduces flow through meter clearances to maximize accuracy.
1). FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters.
2). Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.
3). FMC Series Positive Displacement Gravity Flow Meter is compact, versatile design can be readily fit into nearly all installations.
4). Low pressure drop meter results in low meter slippage and thus superior meter accuracy.
5).Long service life, low friction ball bearings, fixed cam-type timing, and rugged construction give sustained accuracy and long time operation.
2.Technical Specification:
| Model: | FMC-50 | FMC-80 | FMC-100 |
| Size: | 50mm / 2 " | 80mm / 3 " | 100mm / 4 " |
| Flow Rate Range(L/min): | 38-380 | 75-750 | 150-1500 |
| Max.Working Pressure: | 150PSI | ||
| Accuracy: | ±0.2% | ||
| Repeatability: | 0.07% | ||
