PD flow meter

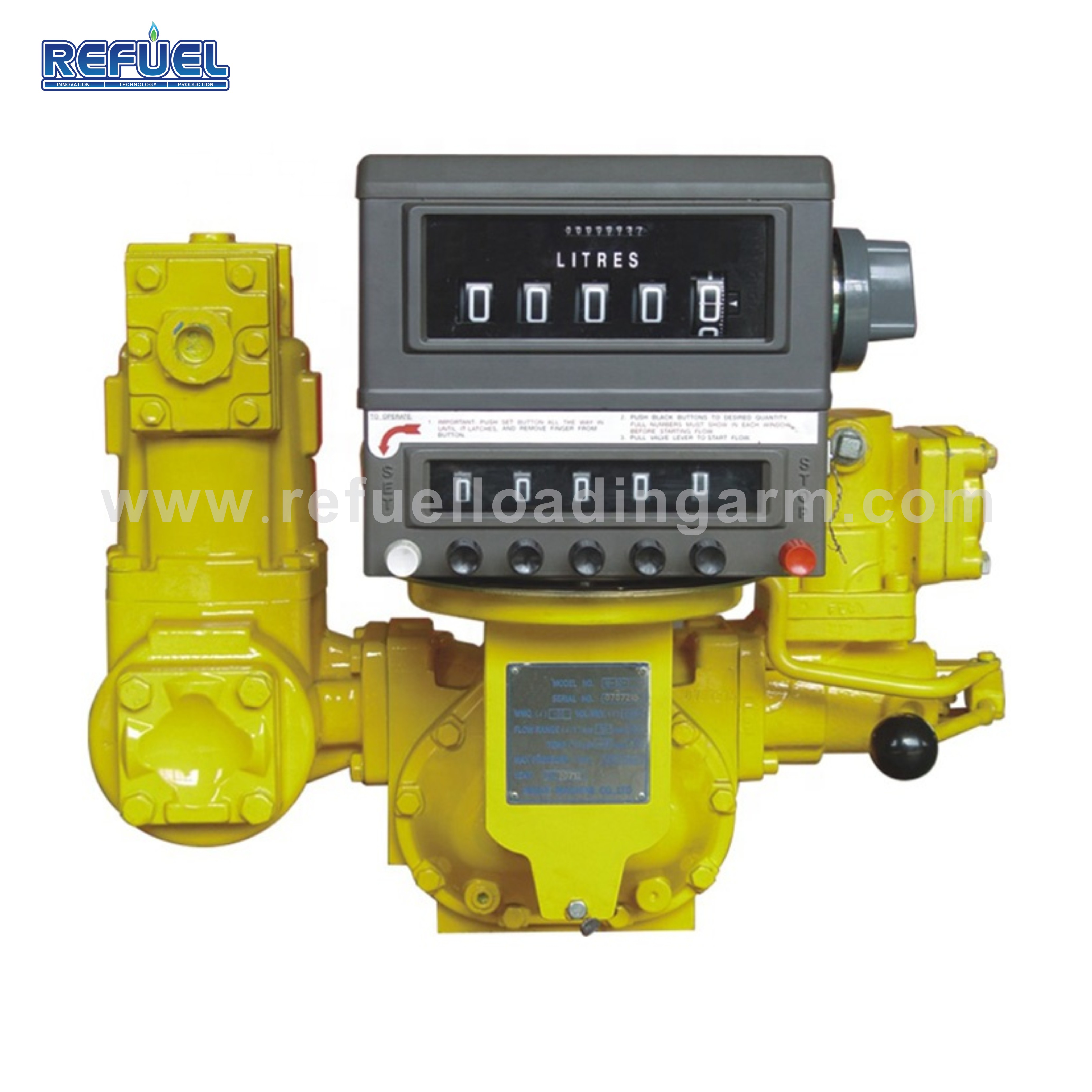

Preset flow meter with preset mechanical register
Description
Preset Flow Meter is reliable and accurate metering for petroleum and LPG industry. LC type Positive Displacement Flow Meter is widely used in delivery vehicles ,oil bulk terminal, gas station and so on.
M-Series rotary motion positive displacement (PD) accessories include air eliminators, strainers, valves, and a choice of mechanical or electronic registers and printers for preset, totalizing delivery, and printing ticket.
1.Technical Specification:
| Model |
M-40-1 |
M-50-1 |
M-50H-1 |
M-80-1 |
M-80H-1 |
M-100-1 |
M-100H-1 |
M-150-1 |
M-150H-1 |
| Size |
40mm /1.5” |
50mm / 2 " |
80mm / 3 " |
100mm / 4 " |
150mm / 6 " |
Flow Range
(L/Min) |
25-250 |
38-380 |
55-550 |
75-750 |
115-1150 |
130-1300 |
170-1700 |
225-2250 |
300-3000 |
| Volume/Rev. |
0.309L |
0.681L |
1.839L |
5.102L |
9.507L |
| Max.Pressure |
10Bar/150PSI |
25Bar/350PSI |
| Accuracy |
±0.2% |
| Repeatability |
≤0.05% |
| Standard Measurement |
Liter / US Gallon/IMP Gallon |
| Viscosity |
30SSU~1,500,000SSU |
2.Features & Benefits
1).Excellent stepless adjusting mechanism allows a micro adjustment of the meter
2.)High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow3)Low maintenance, no metal-to-metal contact in measuring chamber, long life service
4).Low pressure loss, a true gravity flow meter
5).Accuracy regardless of pressure fluctuations, temperature variation, viscosity
6).Choice of aluminum, cast iron and stainless steel materials of construction
3.Application Range
1)Refined petroleum products.
2)Aviation gasoline and jet fuel.
3)A wide variety of products such as : corn oil , soy bean oil , cotton seed oil , coconut oil.
4)Chlorinated solvents and general solvent metering
5)Acid Ph liquids
6)Liquefied petroleum gas(LPG).
7)Crude oil , also for heated and /or viscous liquids.
8)Oil or water based latex products, polyester resins and adhesive (neutral pH), also for metering herbicides and nitrogen fertilizer solutions.
9)Herbicide
10)Sodium hydroxide(caustic)solutions, high sulfur crude oil and other alkaline ph liquids.
11)Abrasive liquids
