Description

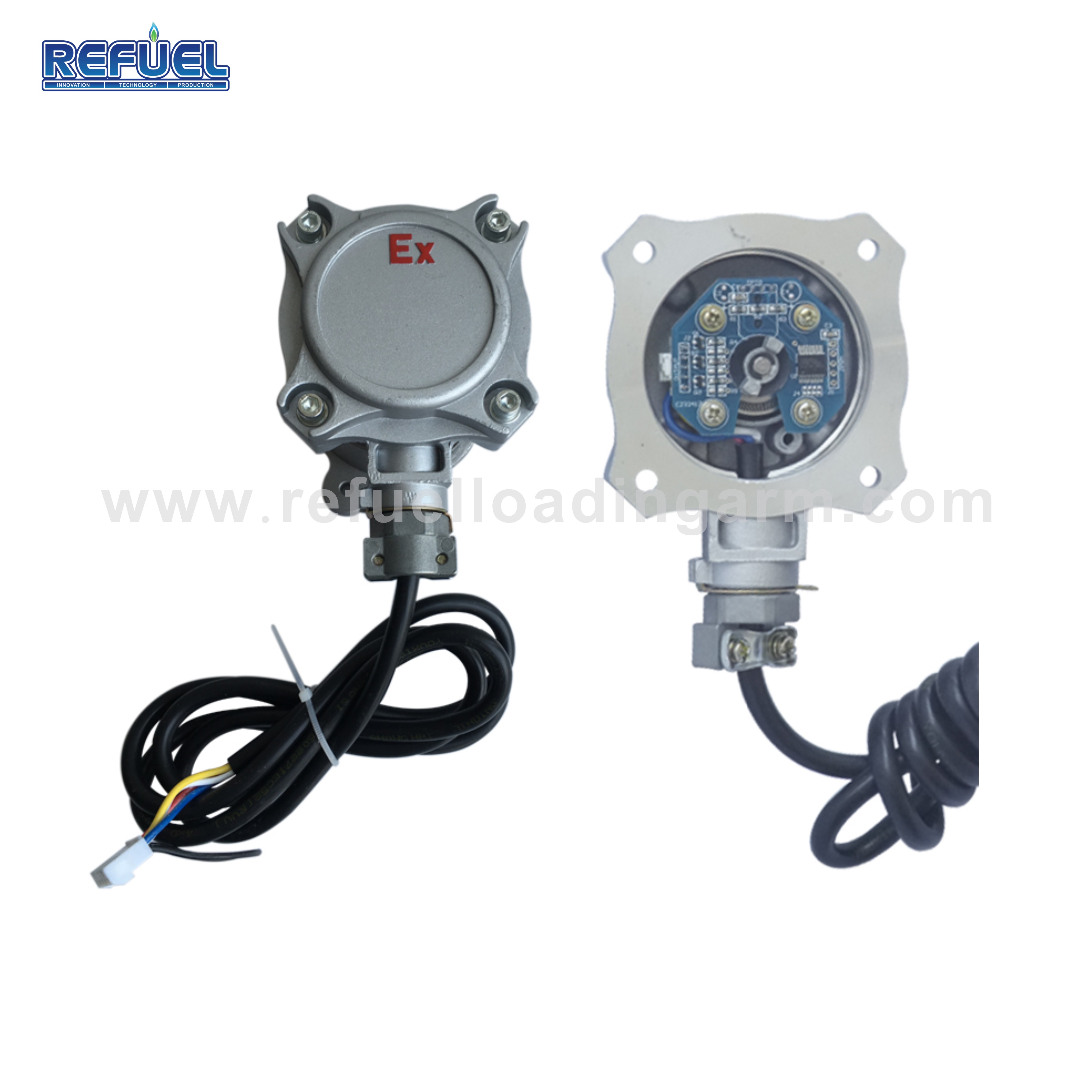

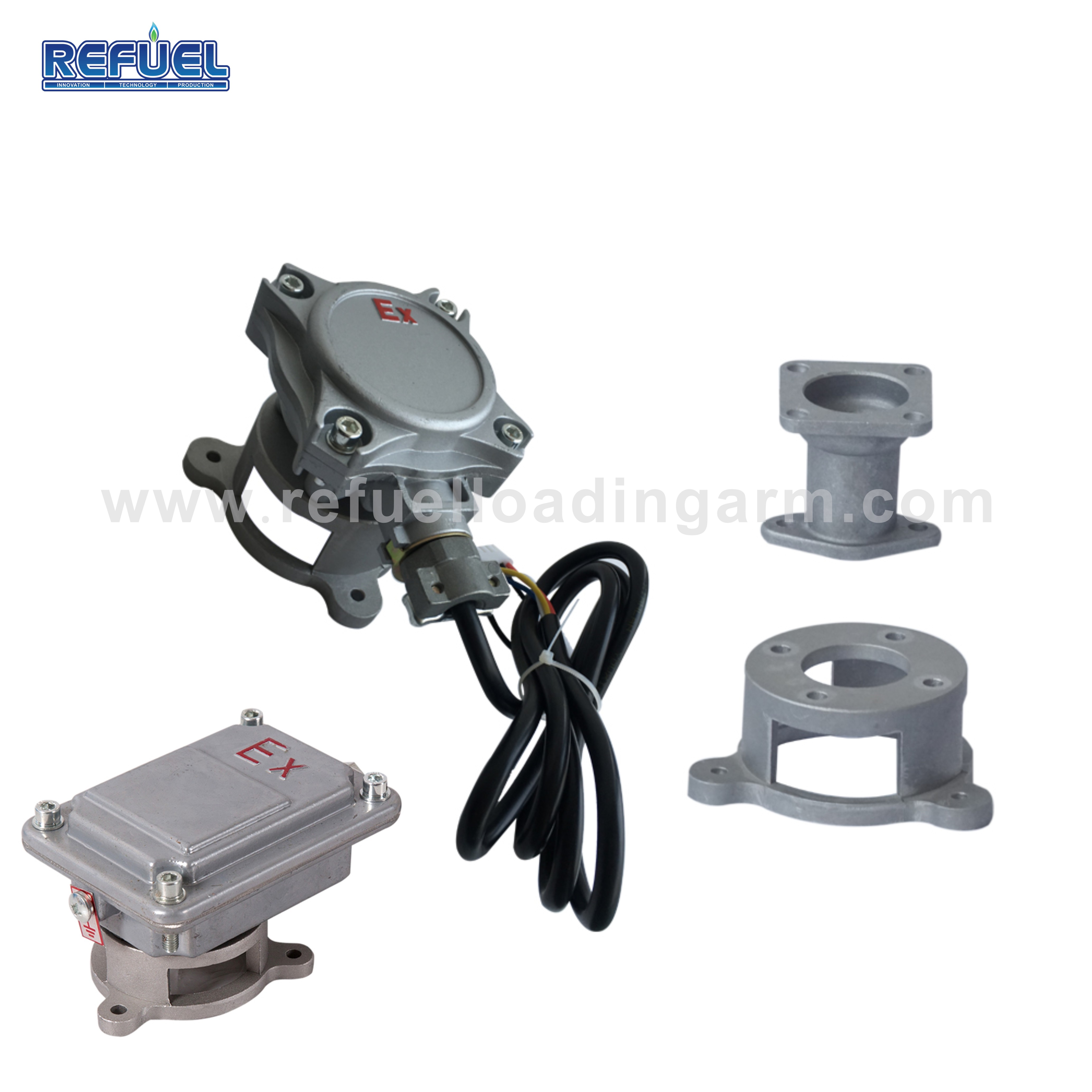

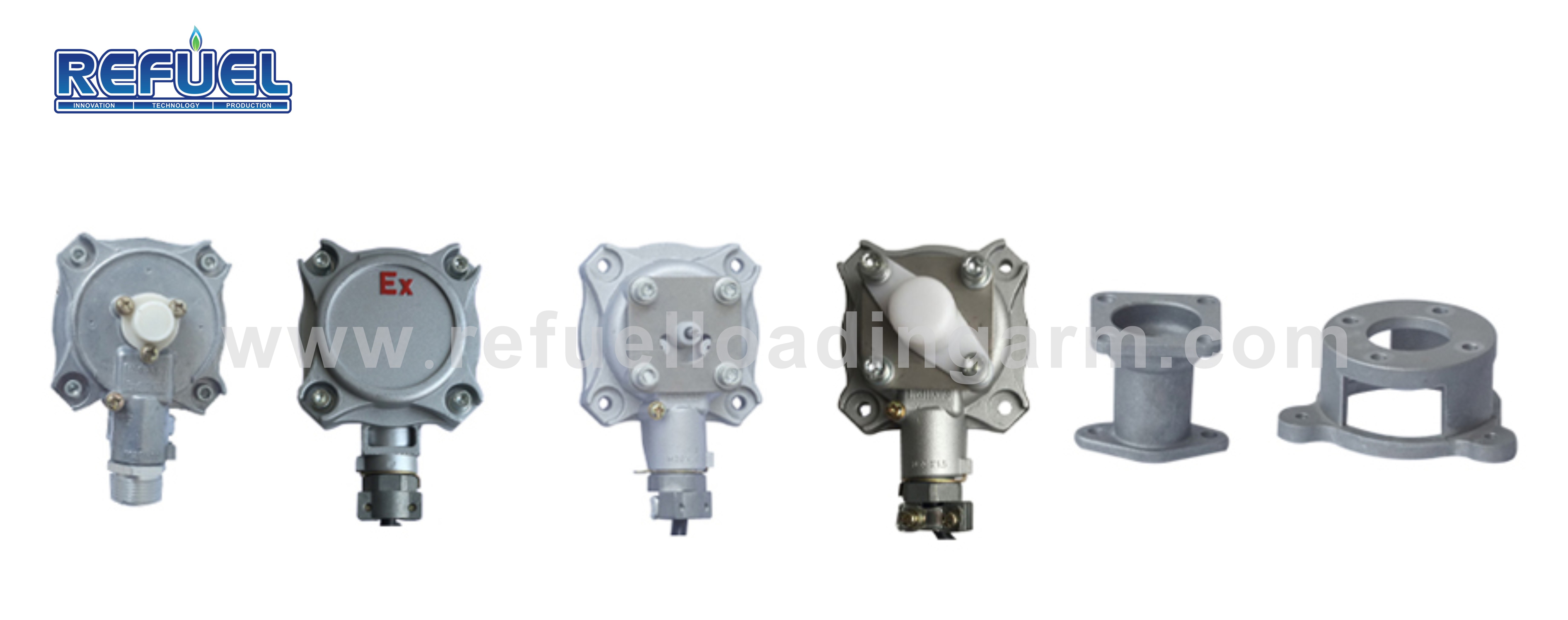

Fuel dispenser pulser is used for fuel dispenser flow meter. We adopted the best circuits and configurations from all over the world. It have the excellence with rational structure, exquisite appearance, reliable performance.60Pulses and 100 Pulses are available, output signal as required ,voltage(V+):+5~36VDC. it equips with all kinds of mechanical connecting fitting, Our fuel dispenser pusler is suitable for Tatsuno type, Gilbarco type, Tokheim type, and Censtar dispenser.
Adopting high accuracy 100 groove,1:1 photoelectric plate, per rotate output two ways per 50 pulse signal, also can be made two ways per 100 pulse signal .Adopting special CPU to deal with the shake, change face process of the photoelectric signal, supply the sensor fault alarm. Sensor can be used for Tatsuno type flow meter
1. Technical Specification
| Name | Fuel dispenser flow meter pulser |
| Specification |
60 or 100 pulses are available |
| Voltage:5V DC | |
| Working current: 5mA | |
| Output channel: 2 | |
| Signal waveform: Quadratic | |
| Max rotation rate :300r/min | |
| Anti-hazard classification:Ex d II B T4 | |
| ATEX certificate | |
| Net Weight | 20 KG |
| Gross Wet | 22 KG |
