Description

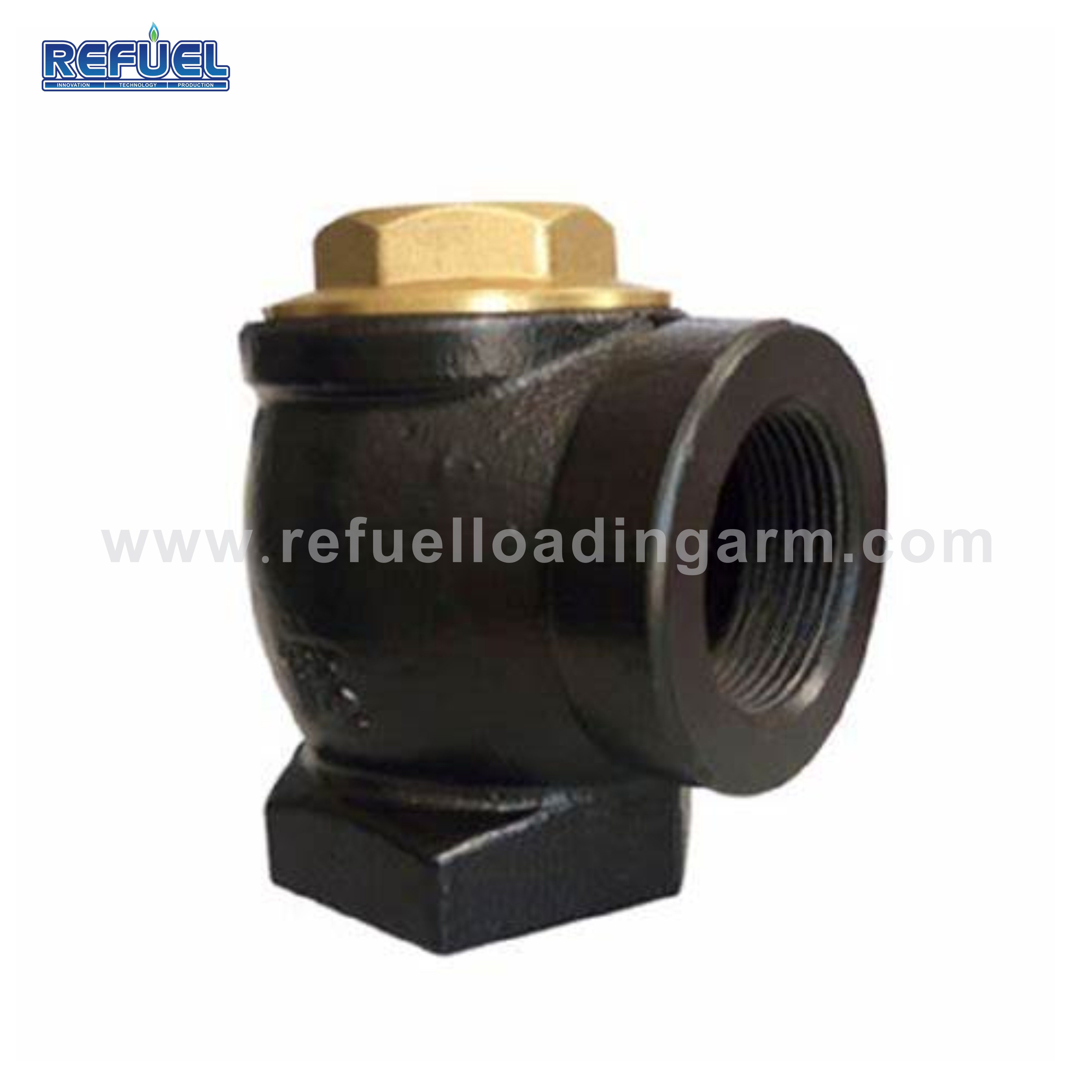

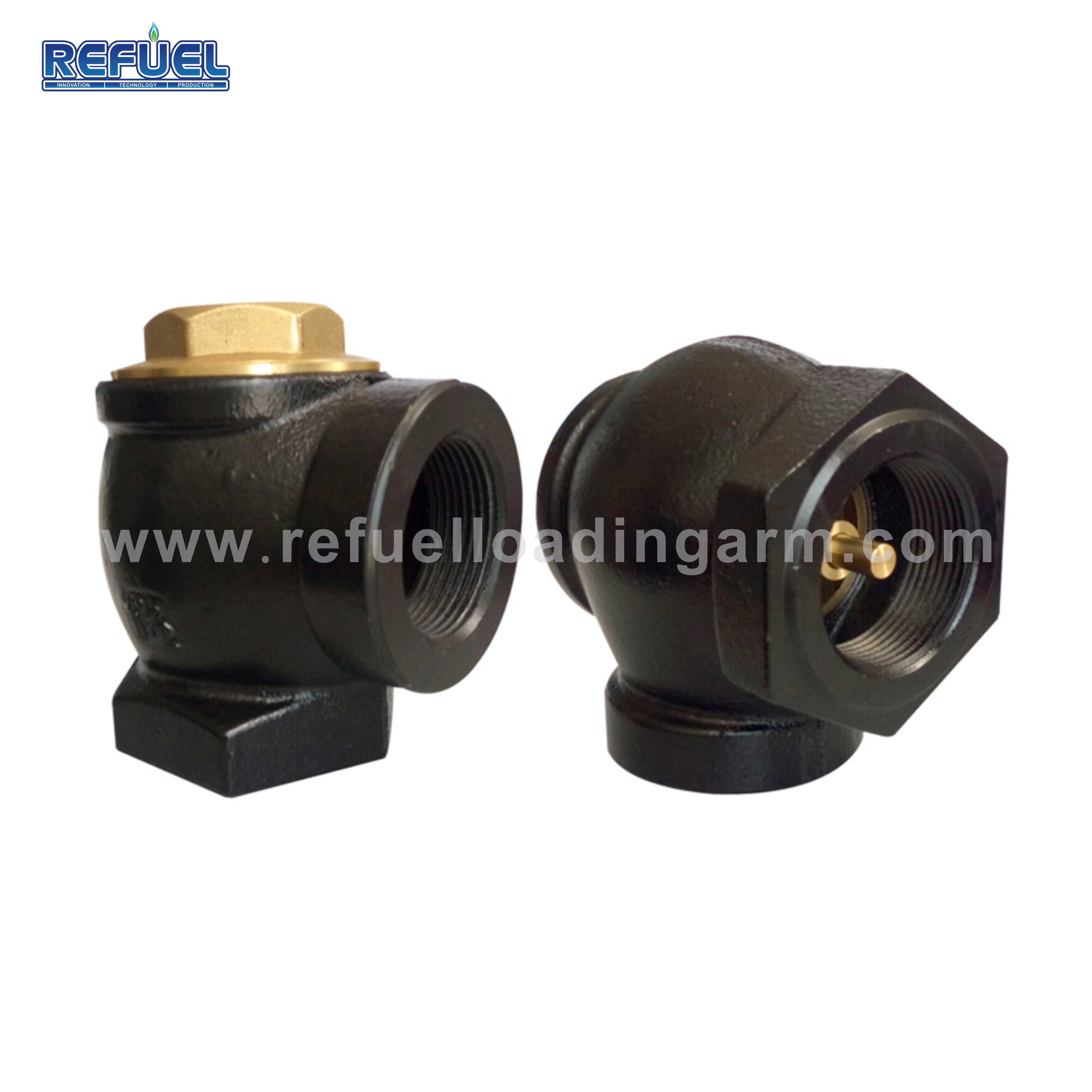

Angle Check Valve-Single Poppet is used on suction system fuel lines to maintain prime holding valve.Single poppet one way check valve used to prevent back flow in supply lines or used as a prime holding valve in suction system. Angle check valves are installed at the top of an underground storage tank suction line. The 615 Series 1 1/2 in. Angle Check Valve is a single poppet valve.
The angle check valve is installed in the suction tube, in the top of the buried storage tanks.Angle Check Valve-Single Poppet is available with male threaded inlets for connection directly into tank bung fittings or with female inlets for connection to a nipple that is threaded into a tank bung fitting. Single-poppet models can be used in applications. The valve is easily accessible for maintenance and disc cleaning or replacement.
1.Technical Specification
| Material Body | Cast Iron |
| Seals | Buna-N |
| Inlet-Outlet | BSPF/NPT1.5”, BSPF/NPT2” |
| Dimension | 45*28*15cm |
| Net Weight | 18.5/21 KG |
| Gross Wet | 19.5/22 KG |
| Package | 10PCS/CTN |
