LPG flow meter

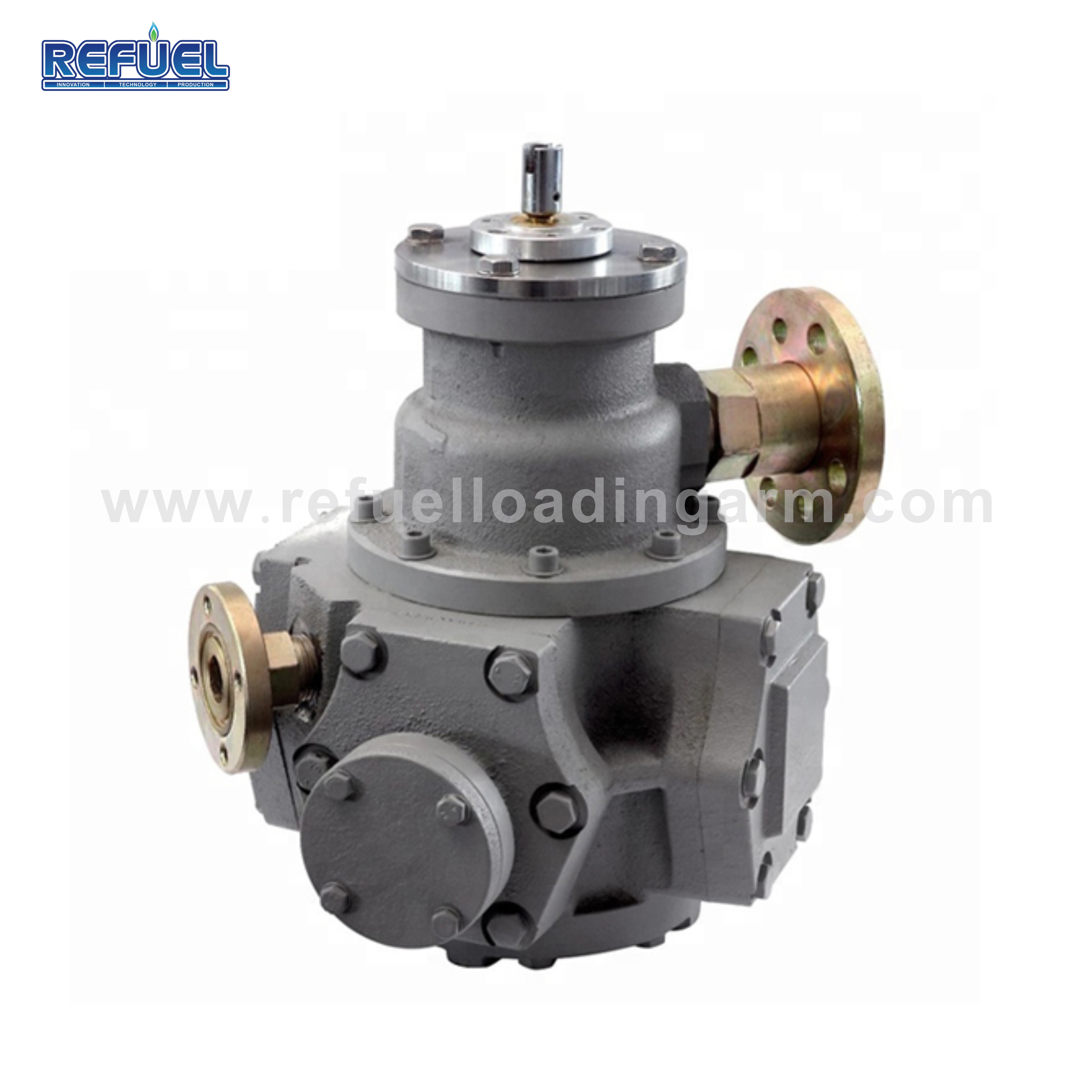

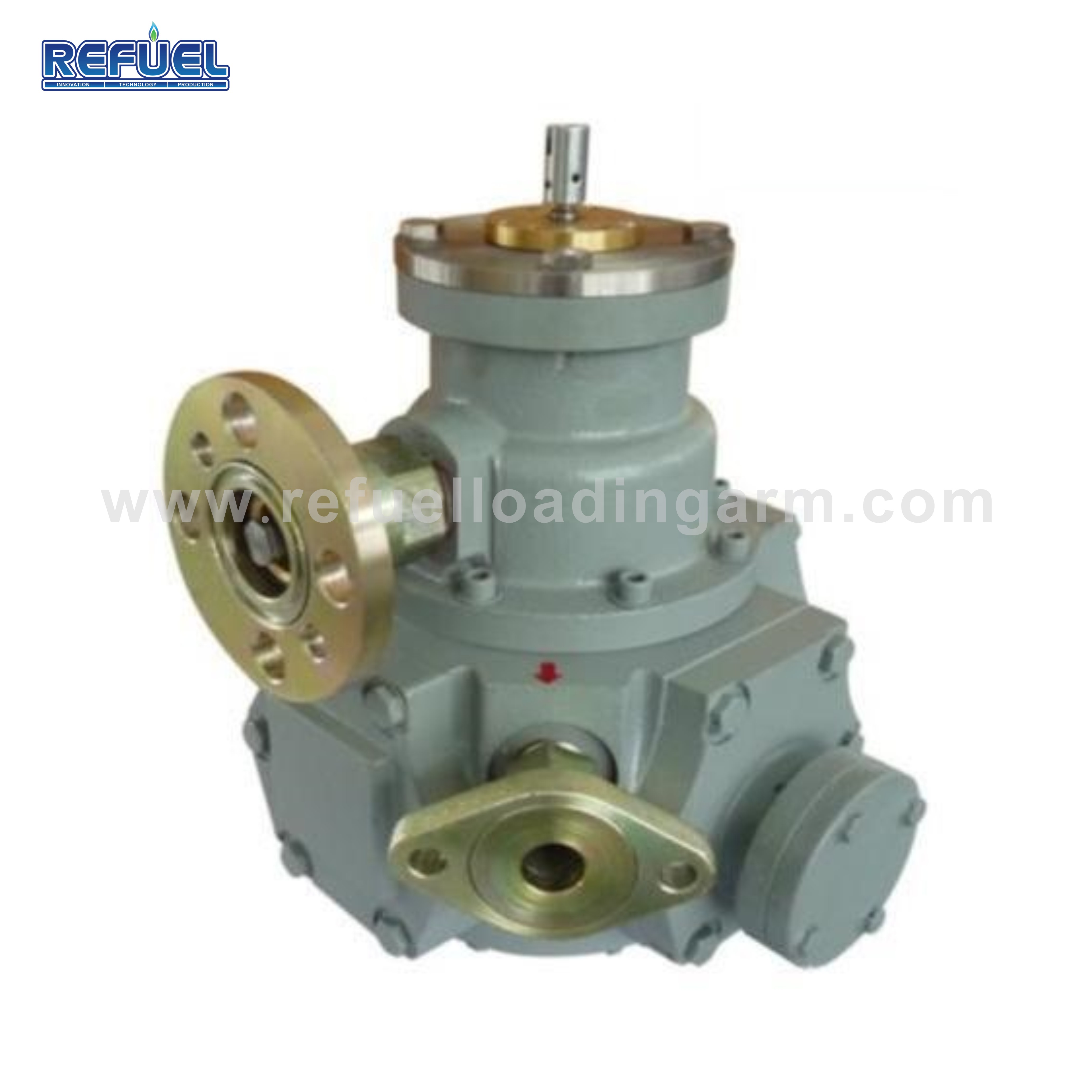

LPG-2 Flow meter
Description
LPG-2 Flow meter is designed for LPG Dispensers in LPG station. Our LPG flow meter has proven its high quality 15 years. It is widely used in China Petrol and SINOPEC.
LPG-2 flow meter is in construction of stainless steel bush and four-piston positive displacement with check valve build-in, with advantage of high reliability, good wear ability, precise measure, and long life.
Our LPG flow meter is cast iron body, stainless steel cylinder liner,and four-pistons construction with check valve inlet, high strength,high wear ability ,and high accuracy, long service life. Because of its high performance ,low maintenance and reasonable price, It is best choice for the LPG dispenser.
1.Technical Specification:
| Max Working Pressure: |
1.8MPa |
| Flow Rate: |
5-60L |
| Discharge rate per revolution: |
0.5L/r |
| Adjustable Minimum Volume: |
0.1% |
| Accuracy: |
±0.5% |
| Repeatable Tolerance: |
≤0.25% |
| Package: |
1pc/carton |
| Net Weight: |
31kg |
| Gross Weight: |
33kg |
| Dimension: |
360×290×360mm |
2. Packing Data：
| Package: |
1pc/carton |
| Net Weight: |
31kgs |
| Gross Weight: |
33kgs |
| Dimension: |
36x29x36cm |
