Description
Arc gear pump belongs to efficient and energy-saving product. It can efficiently remove the heat produced by tooth surface contact. It also prevents the static concentrated, high safety performance. Do not deliver the solid particle and corrosive liquid, Transmission medium viscosity range is 5cas to 53cas. It is ideal pump for oil tank truck.

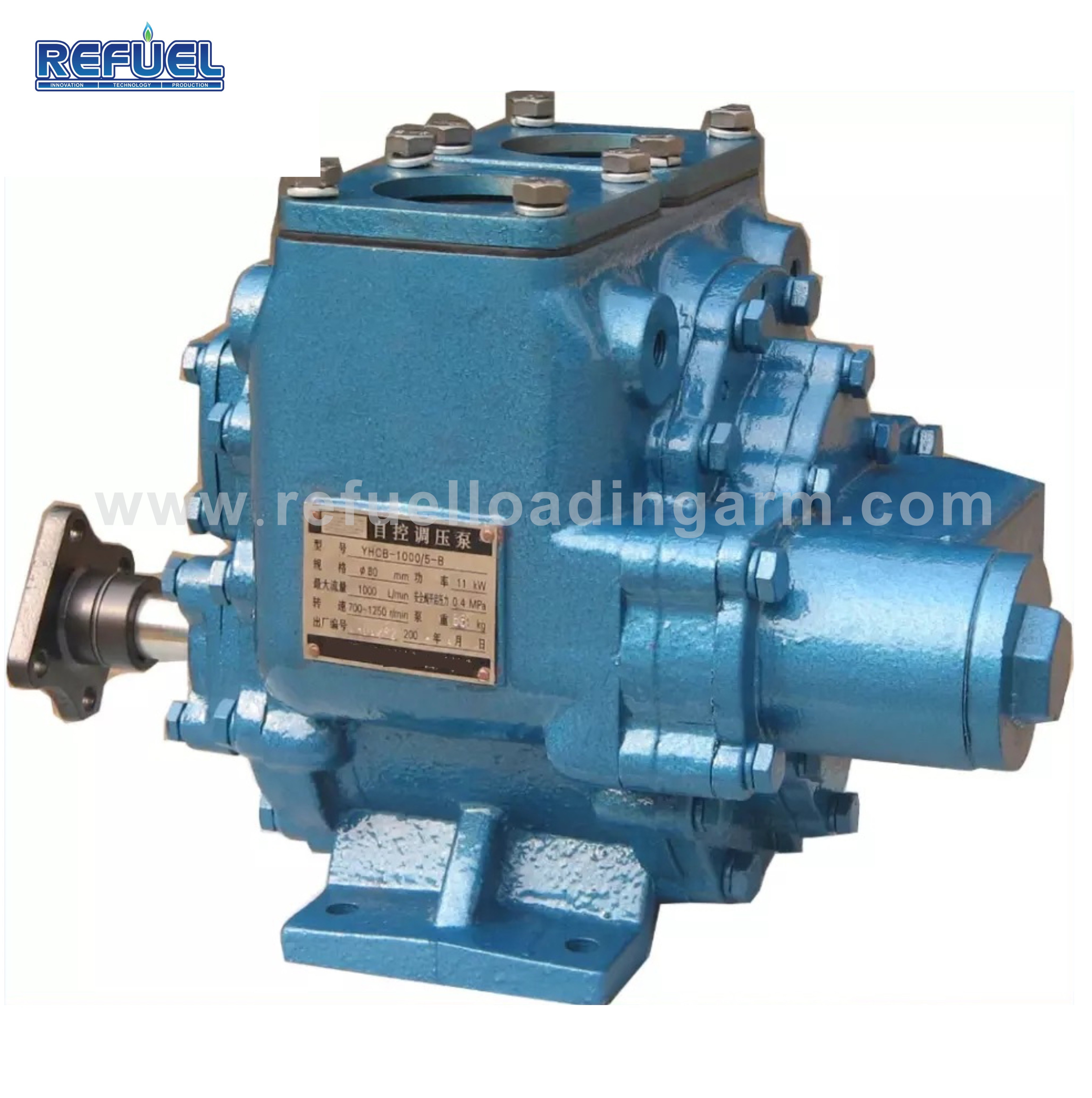

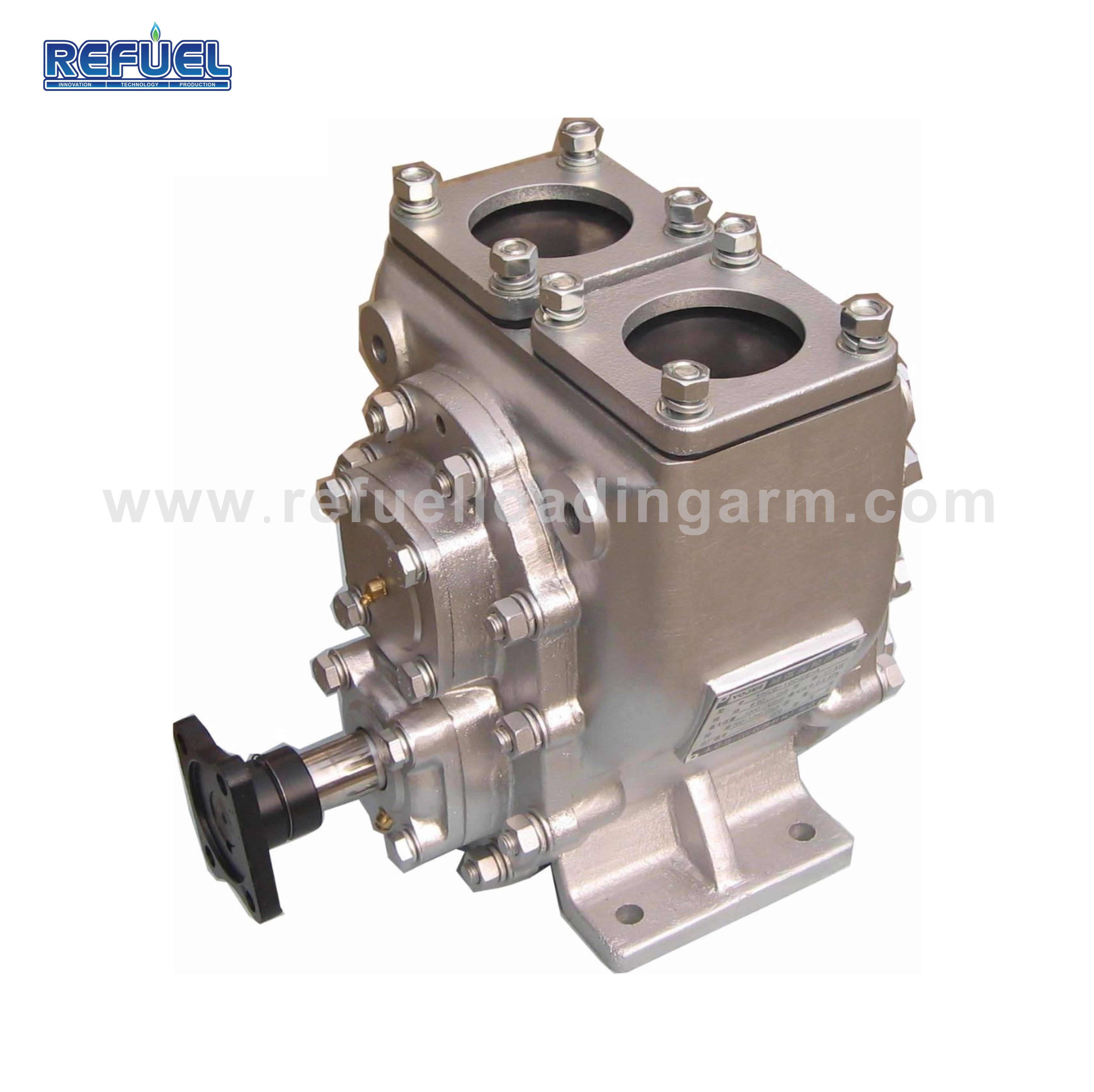

Fuel tank truck Aluminum 3" Inch oil rotary Gear Pump (YHCB Arc gear pump)
is suitable for transferring the liquids with viscosity 5~153cst(Such as petrol , Kerosene, diesel oil and mechanical lubricating oil). It is a kind of high efficiency and energy saving special gear pump. It has big capacity, high pressure, small volume,low noise,good self-priming performance, convenient to install and repair. It is also the ideal choice for oil tanker refitting industry and petroleum sector.

1.Material:
Body: Casting iron
Gear: Aluminum
Seal: Framework oil seal/ mechanical seal

2.Technical Specification:

Item	Arc gear pump
Model No.	YHCB-1000/5A
Body Material	Casting iron
Gear Material	Aluminum
Size	3"
Working Pressure	0-0.5MPa
Flow	1000L/min
Head	60m
Suction	7m
Power	11KW
Rotating Speed	960R/min
Medium	Diesel, Gasoline, Kerosene
Seal	Framework oil seal

3.Features

1). YHCB uses double arc wheel structure. It is a new product that adapted to pump development needs and special energy-efficient gear pump with high flow, high pressure, small size, low noise, low input speed, high self-priming, easy installation and maintenance.

2). Optmized oil tank truck pipeline system. As there is safety device itself, so it is no need to set installation in pipeline. Therefore, it simplifies pipeline system to achieve efficient and saving.

3). Ensure pump and other matched equipment safe. If the operation is wrong, even though outlet pipeline valve is not open, it will not damage when loading oil in over pressure.

4). Safety device use big caliber leakage flow to ensure the safety, As far as possible adding it into leakage flow space, it ensures that leakage flow pressure will not continue increasing.

5). When pump working pressure is no need up to 0.5Mpa, users can reduce safety device pressure to make the equipment in safe operation. The pump rotation is left or right.
