Fuel nozzle

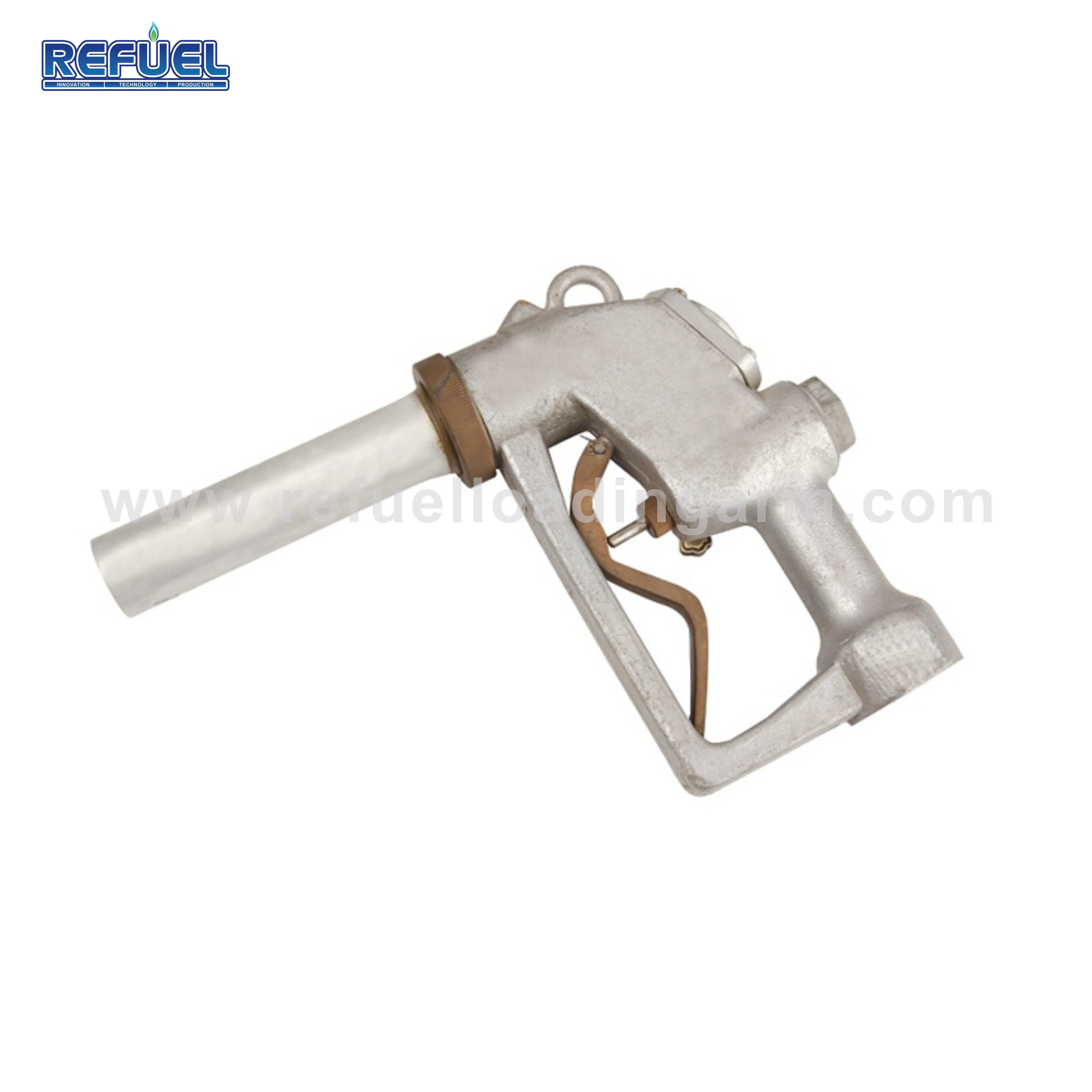

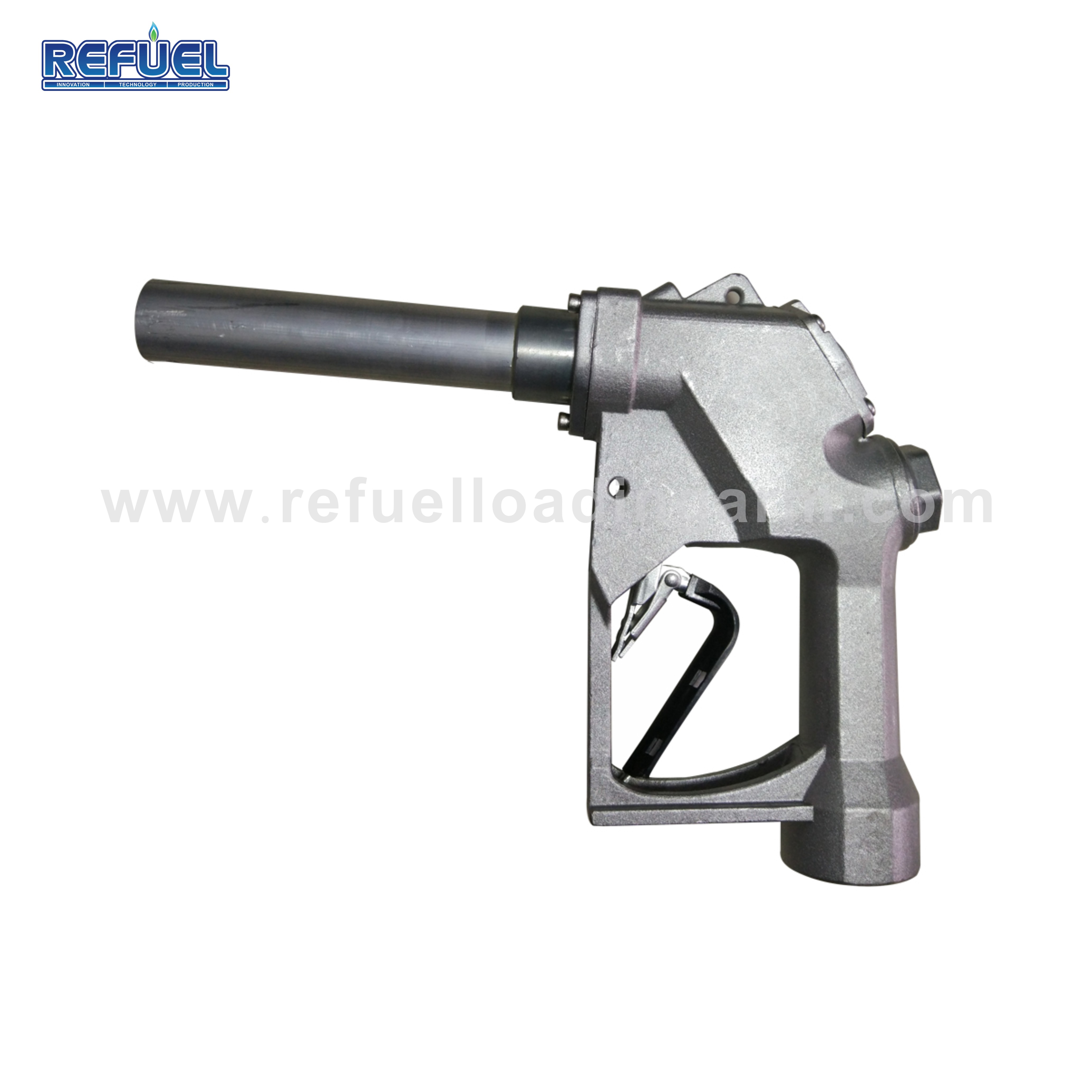

1290 Automatic Nozzle
Description：
1290 Automatic Shut-off Nozzles for Heavy-Duty, High-Flow Truck, bus, and Home Fuel Oil Delivery Service.
1.Technical Specifications
| Working Pressure |
0.05-0.35 Mpa |
| Inlet Size |
1-1/2" |
| Spout Outlet Diameter |
35mm |
| Thread |
NPT/BSPT |
| Net Weight |
2.10KG |
| Ordering Specifications: |
| Item No. |
Inlet Thread |
Spout O.D. |
| RE-1290A |
1-1/2" NPT |
35mm |
| RE-1290B |
1-1/2" BSPT |
35mm |
2.Features and Benefits
1. Venturi - type automatic shut-off mechanism.
2. Aluminum body – light and easy for use.
3. Two - position hold - open device.
4. One – hand control of hold – open mechanism – Means easy setting of flow rate.
5.Easily replaced spout – simply remove the spout retainer nut.
6. Right angle design – provides larger lever area for better grips and easier control, permitting the nozzle to fit into awkward spaces close to walls and into corners.
7. Built-in outlet check valve – Meets all know requirements of the Division of Measurement Standards.
8. Dual poppets – Make nozzle easy to open against high inlet pressure.
9. 100% Factory Tested.
3.Materials
Body: Aluminum
Main Disc: Viton
Main stem: Stainless steel
Packing: Graphite with Teflon
